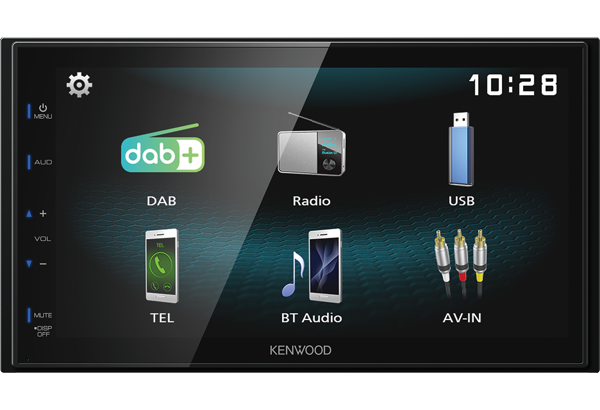

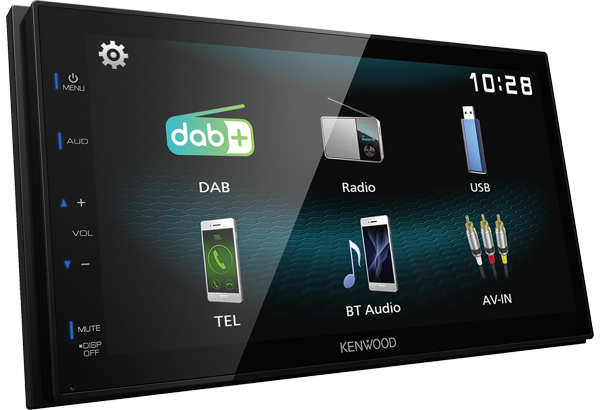

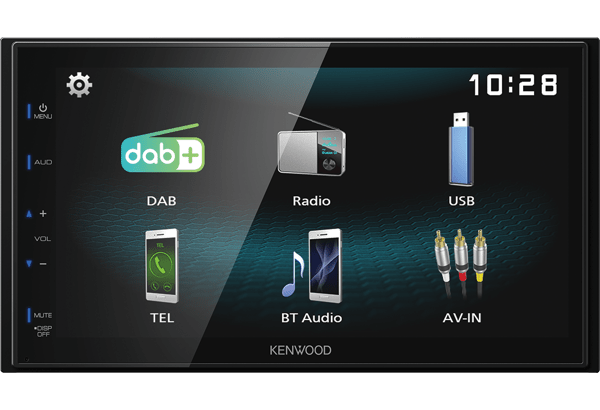

The KENWOOD DMX125DAB Car Stereo has a crisp, clear 6.8” resistive touch screen, multi-format playback and rear camera input.
It has a USB input for connectivity and Android Mirroring with compatible Android smartphones. Built-in DAB ensures this is a must-have upgrade for any vehicle!
PLEASE NOTE THAT THIS SYSTEM DOES NOT PLAYBACK CD/DVD
| Capacitive 6.8″ WVGA touch screen |
| Android USB mirorring ready |
| DSP / DTA /13 band equalizer |
| DAB+ tuner built in |
| 3 preouts, (2.0V) (Front/Rear/Sub(mono)) |

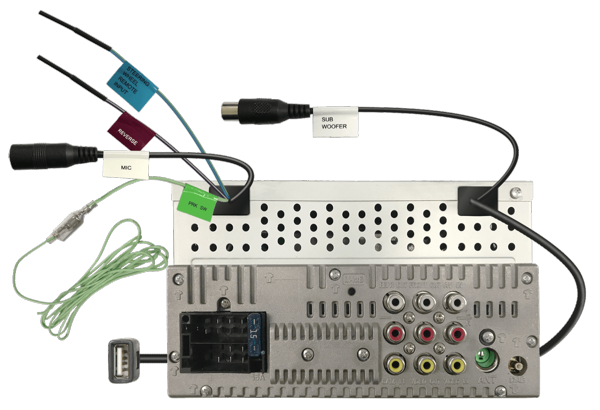

| AV-in, Video-out & RCAM-in |
| Bluetooth handsfree & audiostreaming built-in |
| Rear USB, 1A Charge |
| MP3, WMA, AAC, WAV & FLAC audio file playback |
| MPEG1/2 & MPEG4, H.264, WMV & MKV video file playback |
| Shortbody, only 75mm installation depth |
| DIN Size | 2 DIN |
| Smooth GUI | Yes |
| Key Illumination | Blue LED |
| Touch sensor | Yes |
| Touch Sensor Tone | Yes |
| Optional IR remote controller | Yes, KNA-RCDV331 |
| Digital Clock (24H) | Yes |
| ISO connector | Yes |
| Built-in Bluetooth | Yes |
| DAB Tuner Built-in | Yes |
| Android USB Mirroring | Yes |
| Screen Type | Capacitive touch panel |
| LCD type | 6,8 inch Wide VGA |
| LCD backlight | LED |
| Display Mode | 1 Mode: Full |
| Screen adjust: Brightness | Yes |
| Screen adjust: Colour | Yes |
| Screen adjust: Contrast | Yes |
| Touch Panel | Clear resistive |
| Display Type | Glare |
| High Resolution VGA Display | Yes |
| NTSC/PAL judge | Yes (Auto) |
| Display Off Mode | Yes |
| OSDC Type | Graphic |
| Demonstration Mode | Yes |
| Opening Screen Type | standard |
| R-CAM interrupt | Yes |
| R-CAM Caution On Screen Display | Yes |
| Menu text in selectable language | English(Default), Espagñol, Français, Deutch, Italiano, Nederlands, Finnish, Russian, Português, Polski, Cestina, Magyar. |
| Station Select | Auto / Manual |
| FM Reception | Yes |
| AM Reception | Yes, (MW Reception) |
| Tuner Presets (FM/AM) | 30 Presets (18FM / 12AM) |
| Up/Down Seek/Scan | Yes |
| Automatic Memory Entry (AME) | Yes |
| Radio Data System | Yes |
| Traffic Information | Yes |
| Local search | Yes |
| Auto TP search | Yes |
| Enhanced Other Networks Function (EON) | Yes |
| Program Type Function (PTY) | Yes |
| DAB+ tuner built-in | Yes |
| Intelligent seek | Yes |
| Tuning mode / Seek mode | Auto1/Auto2/Manual |
| Service preset | 15 ch * 1 bank presets, |
| Alphabet Search | Yes |
| Traffic Information | Yes |
| DAB-DAB/DAB-FM auto switch | Yes |
| Time Shift | Yes |
| DLS (Dynamic Label) | Yes |
| PTY (Programme Type) search | Yes |
| PTY (Programme Type) watch | Yes |
| Announcement Switching (ASW) Select | Yes |
| Soft linking | Yes |
| Max num. of regist. phones for HFP & A2DP | 8 phones |
| Hands Free Profile (HPF) | V1.6 |
| Audio Streaming (A2DP) | Yes, (SBC) |
| Phonebook Access Profile (PBAP) | Yes |
| Number of PBAP entries | Up to 1000 phonebook entries |
| PBAP call history | Up to 50 entries of dialed, received and missed calls |
| Voice Control | Yes |
| Noise Canceller | Yes |
| Echo Canceller | Yes |
| High-quality noise canceling microphone | included |
| MPEG1/2 files are playable | USB |
| MPEG4 files are playable | USB |
| WMV files are playable | USB |
| H.264 files are playable | USB |
| mkv files are playable | USB |
| Rear USB Terminal | Yes |
| USB Type | 2.0 Full speed |
| MP3 playback with ID3 Tag Display | Yes |
| WMA (Windows Media File) playback | Yes |
| AAC (Advanced Audio Codec) playback | Yes |
| MPEG1 Video decoder | Yes |
| MPEG2 Video Decoder | Yes |
| MPEG4 Video Decoder | Yes |
| Repeat/Scan/Random search | Yes |
| Repeat / Random Play | Yes |
| 1A Charge Capability for Smartphone. | Yes |
| Max. Output Power (MOSFET Power IC) | 4 x 50W |
| Pre-out | 3RCA: Front/Rear/Subwoofer |
| Pre-out Output Level | 2V |
| Subwoofer Reference Level Adj. | Yes |
| Balance/Fader Control | Yes |
| Beep On/Off | Yes |
| DSP Chip | AK7601 |
| Position Control | Yes |
| Position Preset | 4 Presets |
| Graphic Equalizer | 13 bands |
| G-EQ manual setting | Yes |
| High Pass Filter (HPF) | Yes (Front/Rear/Center) |
| HPF Cut Off Frequency | 14 |
| HPF Cut Slope Level | 4 steps |
| Low Pass Filter (LPF) | Yes (Non-Fading) |
| LPF Cut Off Frequency | 14 |
| LPF Cut Slope Level | 4 steps |
| Source DSP Memory | Yes |
| Channel Level Control | Yes |
| Loudness | Yes |
| Tweeter volume | Yes |
| Bass Boost | Yes |
| Speaker Size & Location Control | Yes |
| X’over network |
| Audio Video Output | Yes |
| Audio/Video Input | Yes |
| Video-In for Rear-view Camera | 1 dedicated video input (RCA) |
| USB interface | |
| OEM Wired Remote Control ready | Yes |
| Parking sensor (handbrake) wire | Yes |
| 2-way (Tel/Navi) mute wire | Yes |
| AV-Input (Non Switchable) | (RCA) |
| AV Output | Video only (RCA) |
| Reverse sensor wire | Yes |
| Rear View Camera Input | |
| FM Antenna Input | |
| DAB Aerial input | SMB connector |
| External microphone input |
| FM range: 87.5Mhz – 108MHz (50Khz step) | Yes |
| FM Usable Sensitivity | 12.2μV/75ohm (S/N 26dBf) |
| FM Quieting Sensitivity | 19.2μV/75ohm (S/N 26dBf) |
| FM Frequency Response | 30Hz ~ 14kHz (± 3dB) |
| FM Signal to noise ratio (Mono) | 55dB |
| FM Selectivity(DIN) | over 70dB (±400kHz) |
| MW range: 531kHz – 1611kHz (9kHz step) | Yes |
| Band III – Frequency range | 174.928 MHz – 239.2MHz |
| Mode | I, II, III, IV |
| Sensitivity | – 100dBm |
| Signal to noise ratio | 90dB |
| Audio format | MPEG1 Audio Layer II, MPEG4 HE-AAC V2 |
| DAB Aerial Connector Type | SMB |
| Technology | bluetooth V2.1+EDR |
| Frequency | 2.402 – 2.48 GHz |
| Output power | +4dBm(max), 0dBm (AVE) power class 2 |
| Maximum range | Line of sight approx. 10 meter |
| Handsfree profile (HFP) | Yes, V1.6 |
| Advanced audio distribution profile (A2DP) | Yes, V1.2 |
| Audio Codec | SBC |
| Audio/Video remote control profile (AVRCP) | Yes, V1.3 |
| Phonebook access profile (PBAP) | Yes, V1.1.1 |
| USB Version compatibility | 2.0 Full Speed |
| File System | FAT 16/32 |
| Maximum Supply current | 1000mA |
| D/A Converter | 24bit |
| MPEG1 Decoder | MPEG-1 with MPEG Audio Layer 2 |
| MPEG2 Decoder | MPEG-2 with MPEG Audio Layer 2 |
| MPEG4 Decoder | yes |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| AAC Decode | “m4a” & “aac” file encoded by AAC-LC format |
| S/N Ratio | 99 dB (1kHz) |
| Dynamic Range | 99dB |
| Maximum Power | 50W x 4 |
| Output Power (DIN45324,+B=14.4v) | 21W x 4 |
| Preout Level | 2000mV / 10kOhm, |
| Preout Impedance | ≤ 600Ohm |
| Speaker Impedance | 4Ohm ~ 8Ohm |
| Graphical Equalizer | 7-Band |
| G. EQ. Frequency (Hz) | 62,5Hz – 16kHz |
| G. EQ. Gain (dB) | -7 / … / +7 |
| Low Pass Filter Frequency (Hz) | 80 / 120 / 160 / Off |
| Color System of External Video Input | NTSC/PAL |
| External Video Input Level (RCA) | 1 Vpp / 75 Ohm |
| External Audio Max. Input Level (RCA) | 1.8 V / 10 kOhm |
| Screen size (Diagonal) | 6.75 Inches Wide |
| Screen Size (WxH) | 151.8 x 79.7mm |
| Display system | Transparent TN LCD Panel |
| Drive system | TFT Active Matrix System |
| Number of Pixels | 1152000pixels (800(H) x 480(V) x RGB) |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB Striped |
| Back lighting | LED (Light Emitting Diode) |
| Operating voltage | 14.4V (10.5 ~ 16V Allowable) |
| Maximum Current Consumption | 10A |
| Dimensions (WxHxD) | 182 x 112 x 74.5mm |
| Weight | 900 gr. |
| Operation Temperature Range | -10°C ~ 60°C |
| Release keys | 2 pieces |
| Escutcheon | Yes |
| Installation Sleeve | Yes |
| Handsfree Microphone | with 3 m cable |
| Brand | Kenwood |
|---|---|
| Voltage | 12V |
| DAB/DAB+ | yes |
| Mechless Radio | yes |
| Bluetooth | yes |
| Rerview camera ready | yes |
| TV System | NTSC, PAL |
| External Microphone | yes |
| USB | yes |
| Android Control | yes |
