1FA 358 176-811

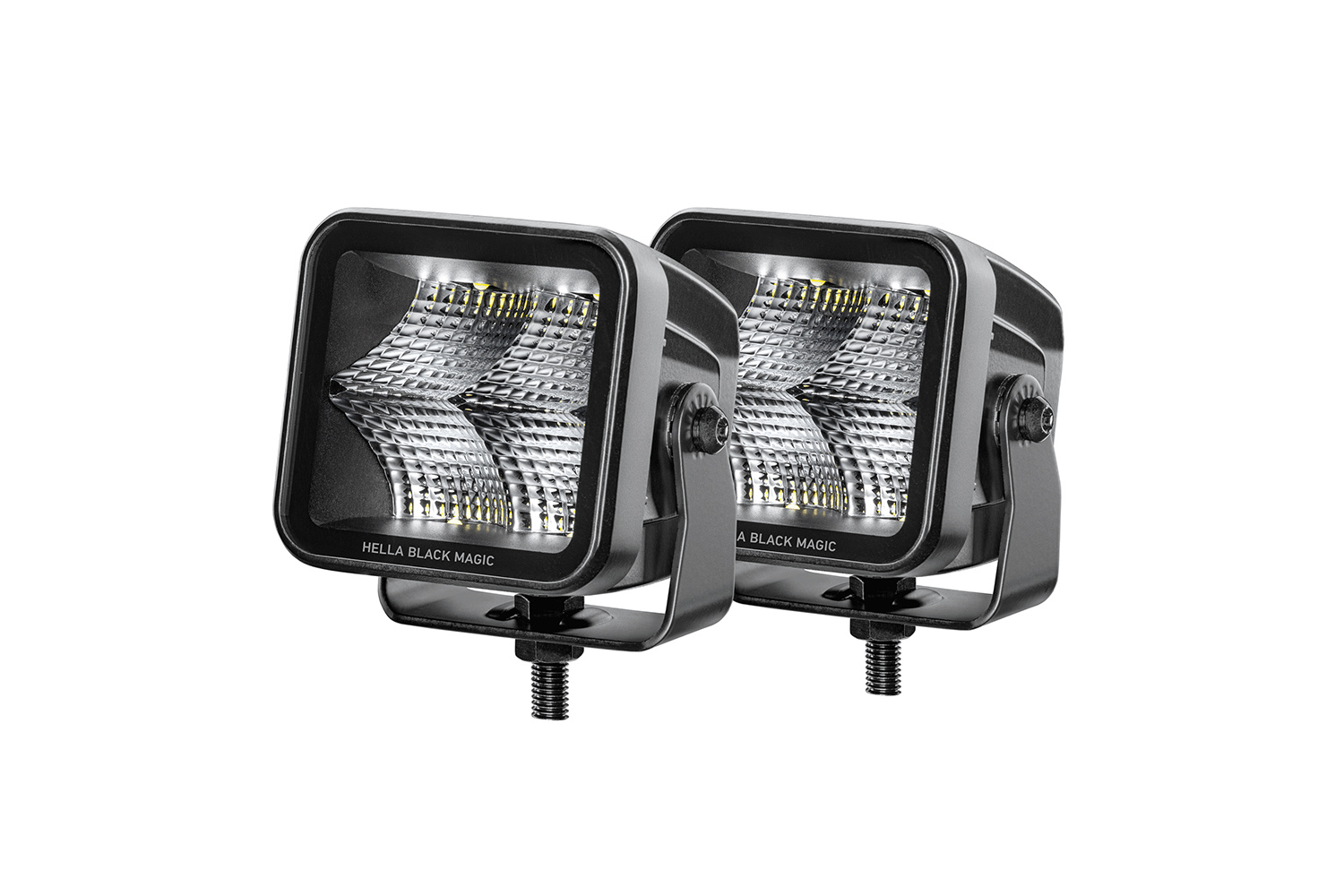

Hella LED cube kit 3.2″ floodlight set for off-road auxiliary lighting, supplied as a matched kit with two LED high beam headlamps, a relay, a switch and installation instructions, plus a wiring harness with DT connector.

Key product details

• Brand: Hella
• Version: LED cube 3.2″ set
• Light function: Floodlight
• Light source: LED
• Power consumption: 40 W
• Light output: 3,000 lm
• Colour temperature: 5,700 K
• Operating voltage: 10-30 V
• Rated voltage: Multi-voltage
• Current consumption: 3.4 A at 12 V / 1.6 A at 24 V
• Number of LEDs: 4
• Degree of protection: IP68, IP69K
• EMC protection: ECE R10
• Material: Aluminium with black stainless steel holder
• Mounting: Upright, pendant or flush mounting
• Connection: 500 mm cable with DT connector

Typical applications

Floodlight versions of LED cubes are typically used where a broader spread of light is preferred, rather than a narrow spot beam. This makes them a practical choice for off-road vehicles and working vehicles that need additional forward or area lighting, including cross-country vehicles, SUVs, pick-ups, buggies, quad bikes, trikes, snowmobiles, construction machinery and tractors.

Because this is an auxiliary lighting kit, compatibility depends on the vehicle, available mounting space, electrical system and intended use. Check the mounting position, supply voltage and the beam pattern you need before ordering.

Choosing the correct LED cube kit

Match the 3.2″ lamp size, floodlight beam pattern and 10-30 V operating range to your application. The included wiring harness, relay and switch simplify installation, but the final setup still needs to suit the vehicle and local regulations.

If you are comparing variants, confirm whether you need floodlight or spotlight output. The two beam types are intended for different lighting needs, so they are not interchangeable in every application.

Handling and installation notes

The kit is supplied with two headlamps and the listed wiring components, so it is designed as a complete installation set rather than a single lamp only. For best results, follow the included instructions and verify polarity, connector compatibility and mounting clearance before fitting.
