1GA 357 400-001

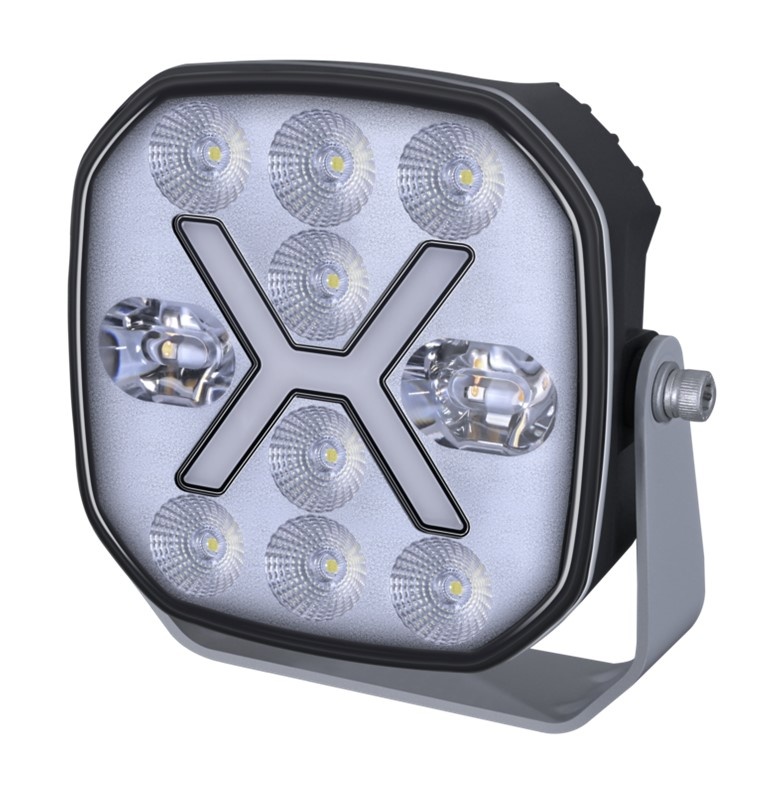

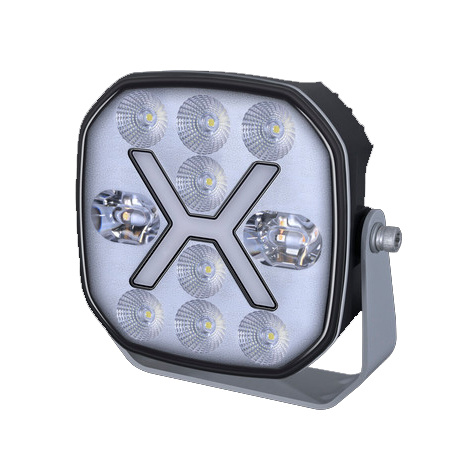

The HELLA SPF2200 is a robust multifunction LED work lamp designed to provide powerful close-range illumination and additional vehicle visibility functions from a single compact housing. It combines an effective 2,200-lumen work light, white and red position lights and an amber warning flash, helping reduce the number of separate lamps, mounting points and electrical connections required on the vehicle.

Four Lighting Modes in One Lamp

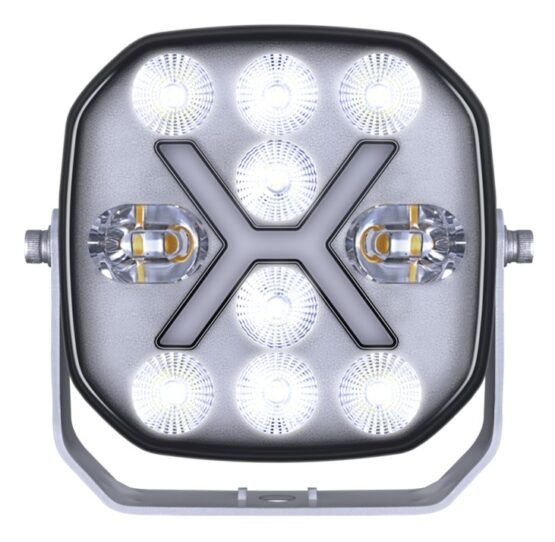

• • LED work light: homogeneous close-range illumination with an effective output of 2,200 lumens.

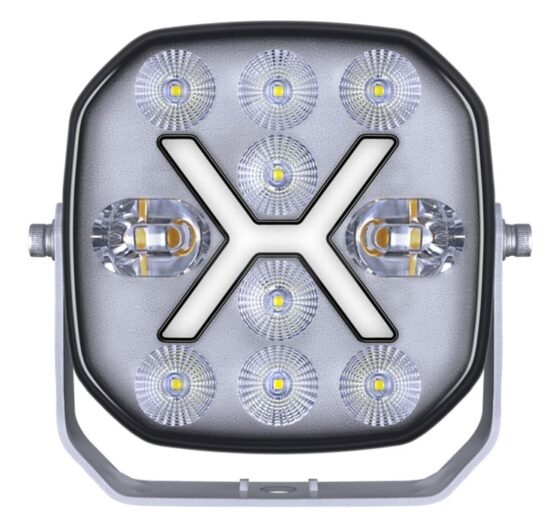

  • White position light: improves vehicle visibility and identification.

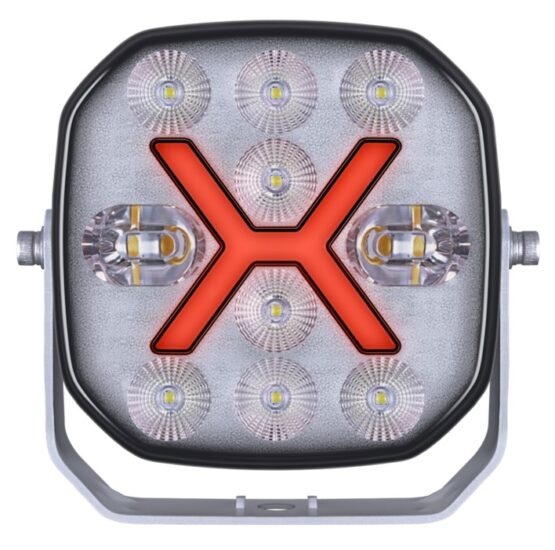

  • Red position light: suitable for rear-facing installations.

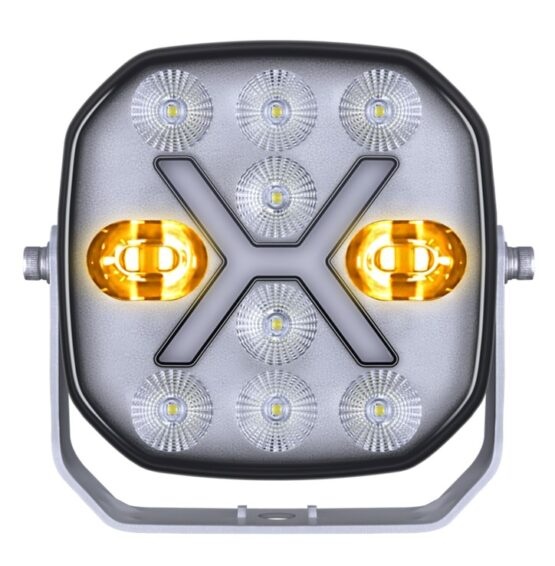

  • Amber warning flash: ECE R65 XA2-approved warning function with day and night intensity levels.

Built for Demanding Applications

The die-cast aluminium housing and impact-resistant polycarbonate lens are engineered for harsh working environments. Protection ratings of IP6K7 and IP6K9 provide resistance to dust, water immersion and high-pressure cleaning, while ECE R10 compliance and CISPR 25 Class 3 electromagnetic compatibility support reliable use alongside vehicle electronics.

Key Features

• Effective light output: 2,200 lm
• Theoretical light output: 3,000 lm
• Homogeneous close-range beam pattern
• White and red LED position light functions
• Amber warning flash function
• Multi-voltage operation: 10-30 V DC, suitable for 12 V and 24 V systems
• 22 W work-light power consumption
• 5,700 K colour temperature
• Eight LEDs
• Die-cast aluminium housing with impact-resistant polycarbonate lens
• IP6K7 and IP6K9 protection in accordance with ISO 20653

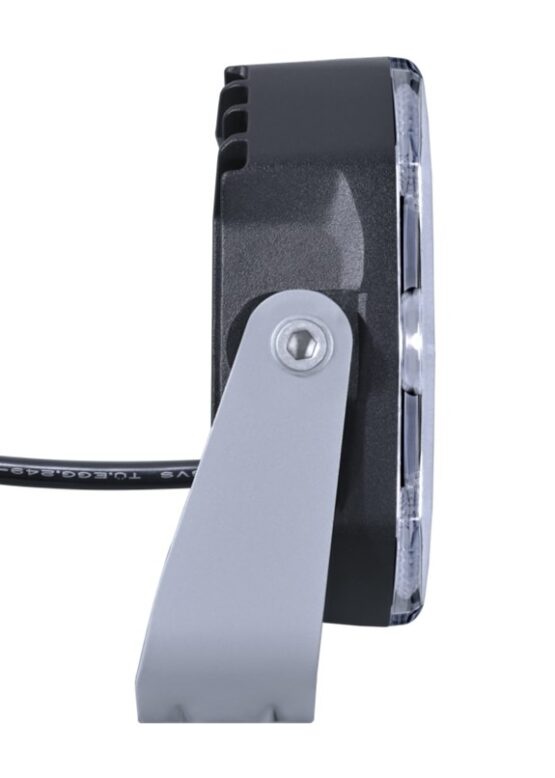

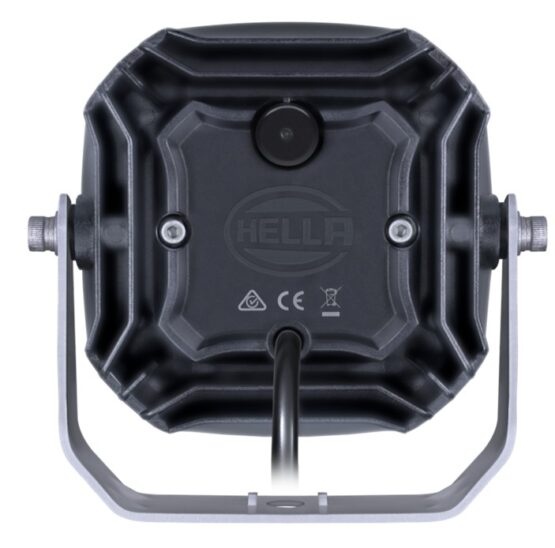

• Upright or pendant mounting using the supplied bracket

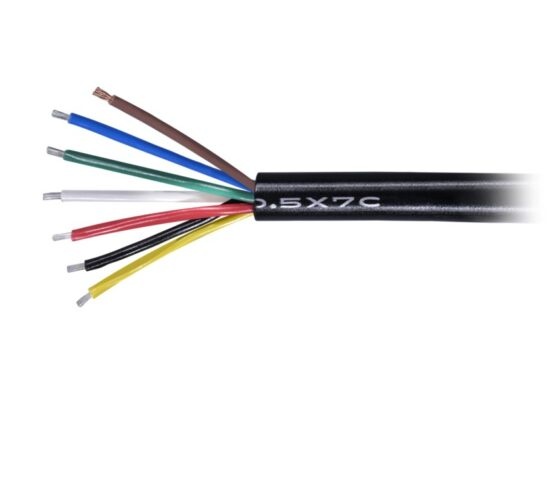

• 1,000 mm cable with open wire ends
• ECE R10, ECE R65 XA2, ADR/GGVS and RCM approvals

Typical Applications

• Trucks and commercial vehicles
• Agricultural tractors and machinery
• Construction and plant equipment
• Service, recovery and specialist vehicles
• Rear work areas and equipment operating zones

Technical Specification

Installation note: Installation should be completed by a suitably qualified person. The work-light function is intended to illuminate working areas; applicable road-use and vehicle-installation regulations must be observed. For agricultural vehicles, use of the warning function must comply with ECE R86 installation requirements.
