PS7006AHD

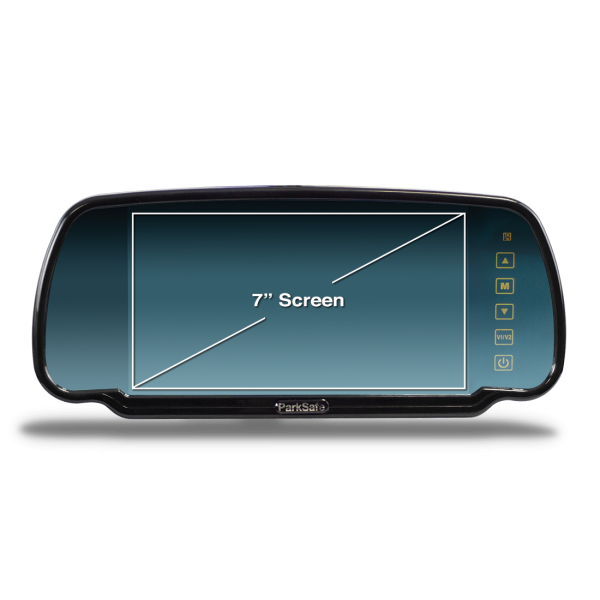

The 7″ Mirror Monitor is designed to clip on to an existing rear view mirror. With a touch screen and IR remote control the PS7006AHD is easy to set up and install.

Specification:

• Power: 12 – 24V DC
• Screen Size: 7″ AHD
• Touch Side Screen & Remote Control
• Inputs: 2 (D1 / AHD Compatible)
• Features: Parking lines, trigger delay & Mirror Function.
• Trigger wire input for each Camera feed
• Resolution: 1024 x 600 RGB
• Clip on mounting only
• Connection: 2 x Male 4 pin Aviation with 2 x 4 Pin Fly Lead
• Converter to RCA and 1 x Audio In (Phono)

Additional Specification:

• Power Consumption: Max 0.5A
• NTSC & PAL switchable
• W: 250mm x H: 118mm x D: 30mm
• Working Temp: -20°C ~ +70ºC
• Harness length: 2.5M Total

A universal clip on mirror monitor must have an existing rear view mirror to clip it on too. If the vehicle doesn’t have a rear view mirror fitted choose the PS7007 and PSWBP32 windscreen mounting kit.

Approvals & Certifications: E Mark, CE
