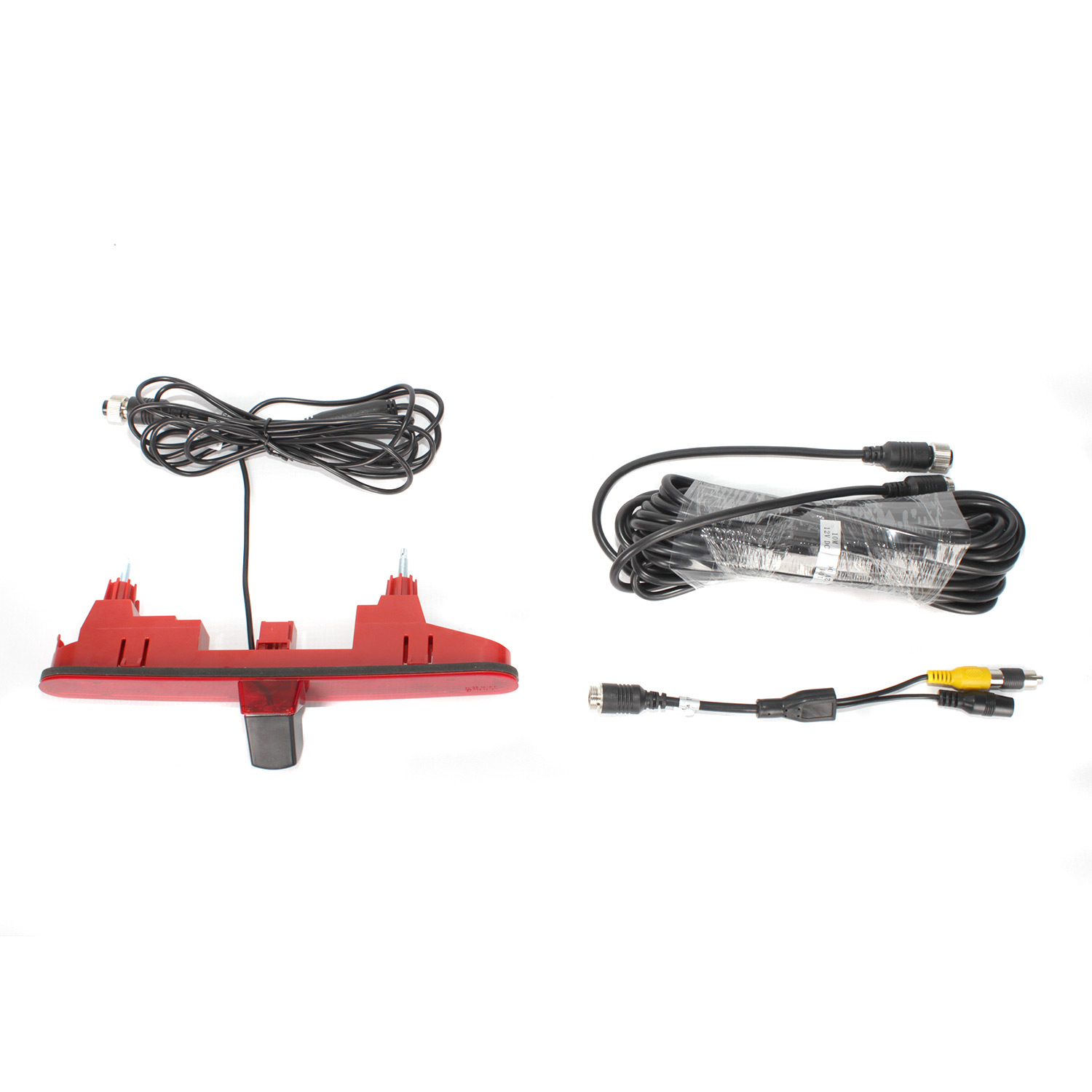

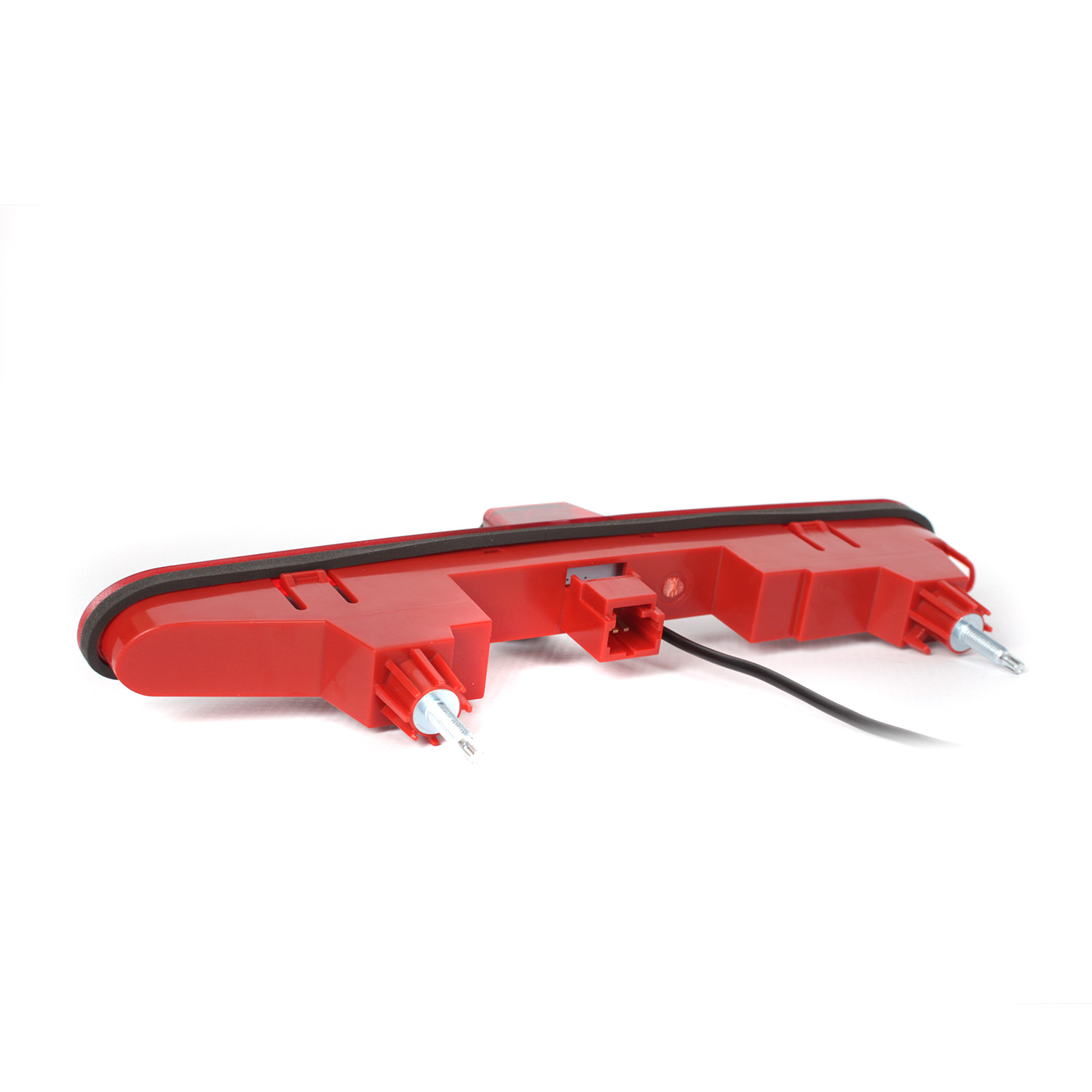

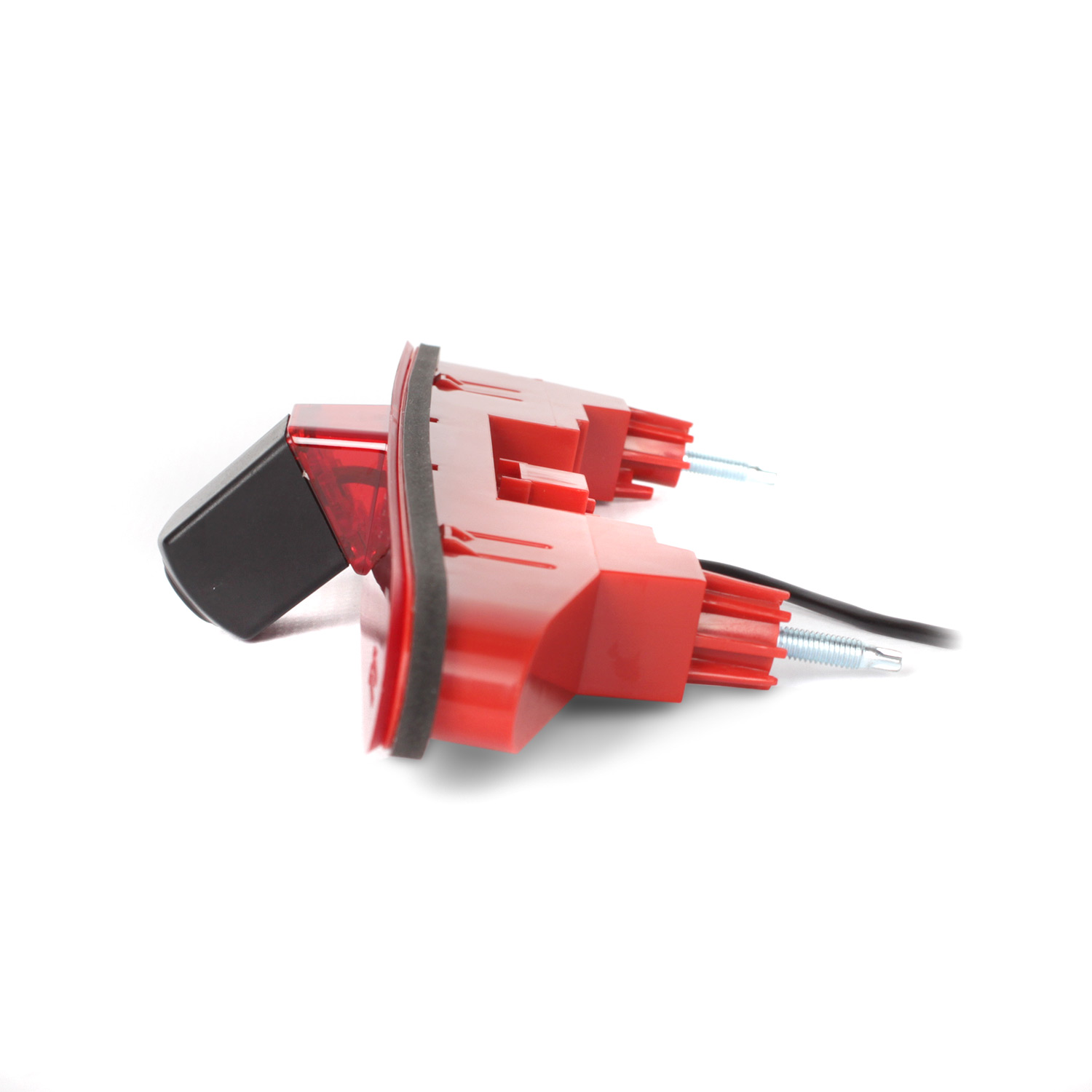

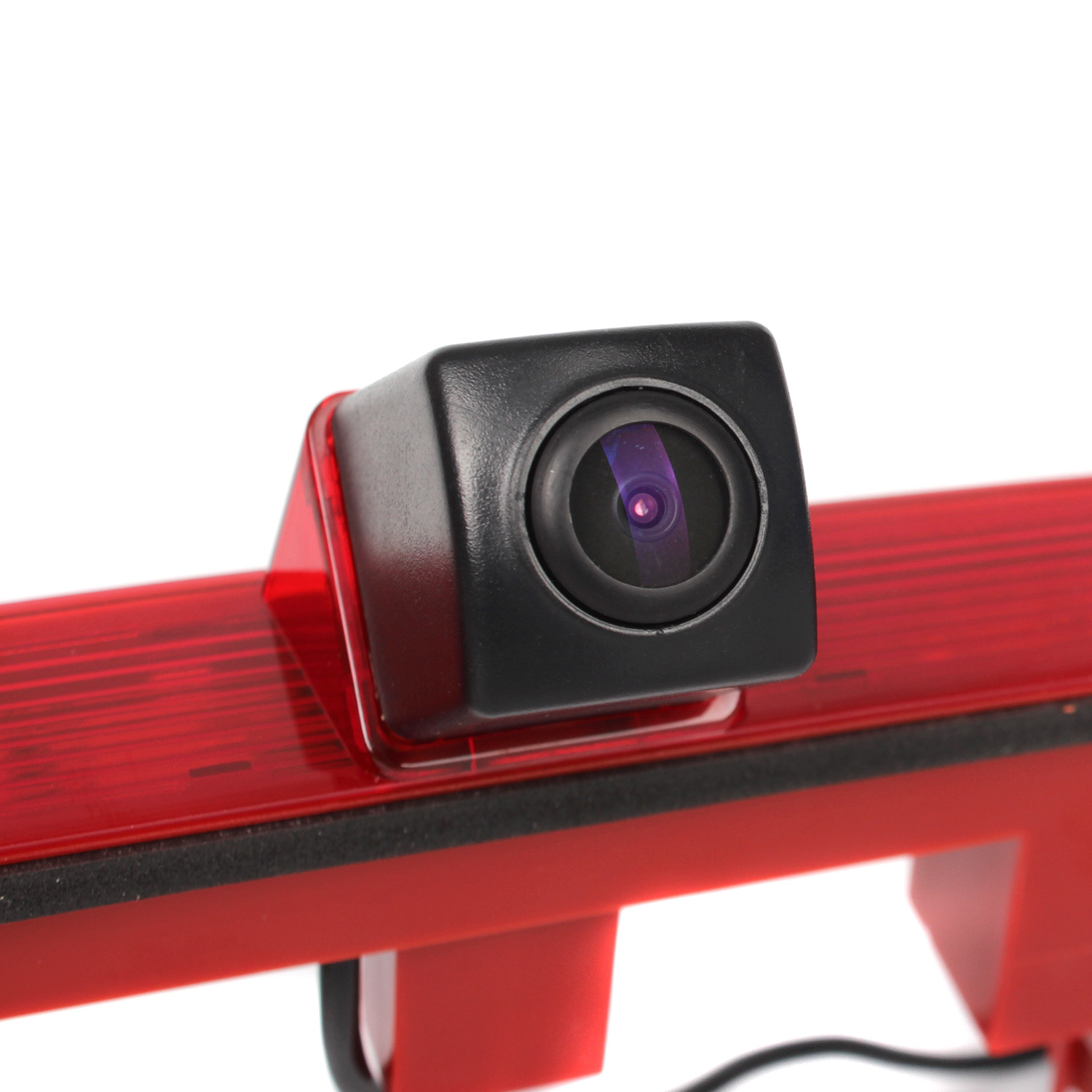

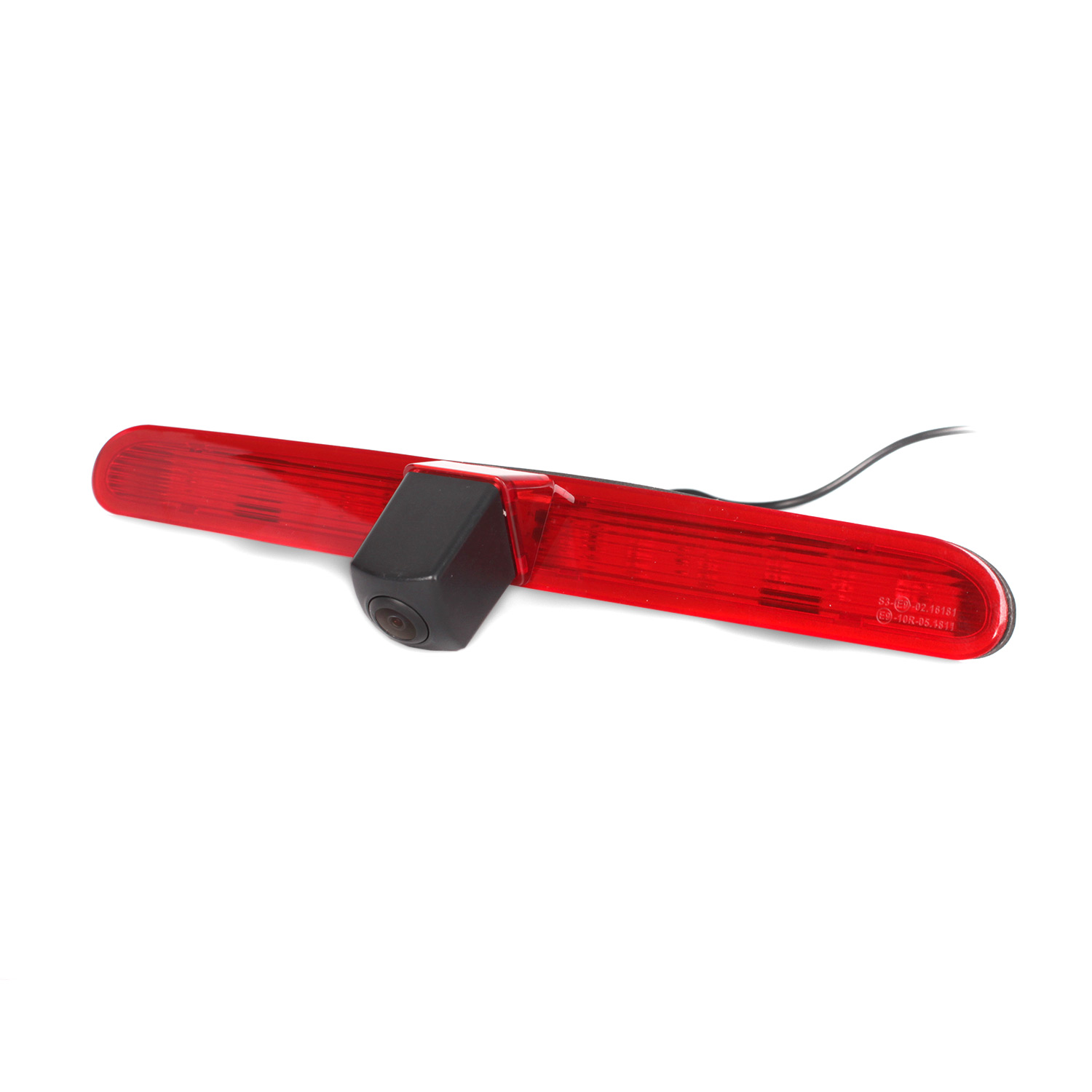

BC PGT-PARTNER Rearview camera in-brake light

OEM color parking camera integrated in the central brake light for Peugeot Partner and Citroen Berlingo (08-18)

For vehicles with wing or folding doors

• PEUGEOT Partner II. (4/2008-8/2018)
• PEUGEOT Partner II. (8/2018-)
• CITROEN Berlingo (4/2008-8/2018)
• CITROEN Berlingo 2018->

Parameters

• CMOS 1/3 “sensor chip
• TV system: NTSC
• video output: 1.0V / 75Ohm
• horizontal view angle: 120°
• weather protection: IP69K
• vibration resistance: min. 4G
• camera connector: 4 pin
• monitor connector: CINCH (RCA)
• camera cable length: 2.5m
• cable length in cable harness: 10m
• horizontal resolution: 700 TV lines
• white balance: automatic
• minimum illumination: 0Lux (infrared LED illumination)
• signal-to-noise ratio:> 48dB
• electronic shutter: 1/60 to 1/100000 sec.
• Power consumption: <3W
• supply voltage: 12V
• working temperature from -30 °C to + 70 °C
• e-mark
