FT-195ZLED

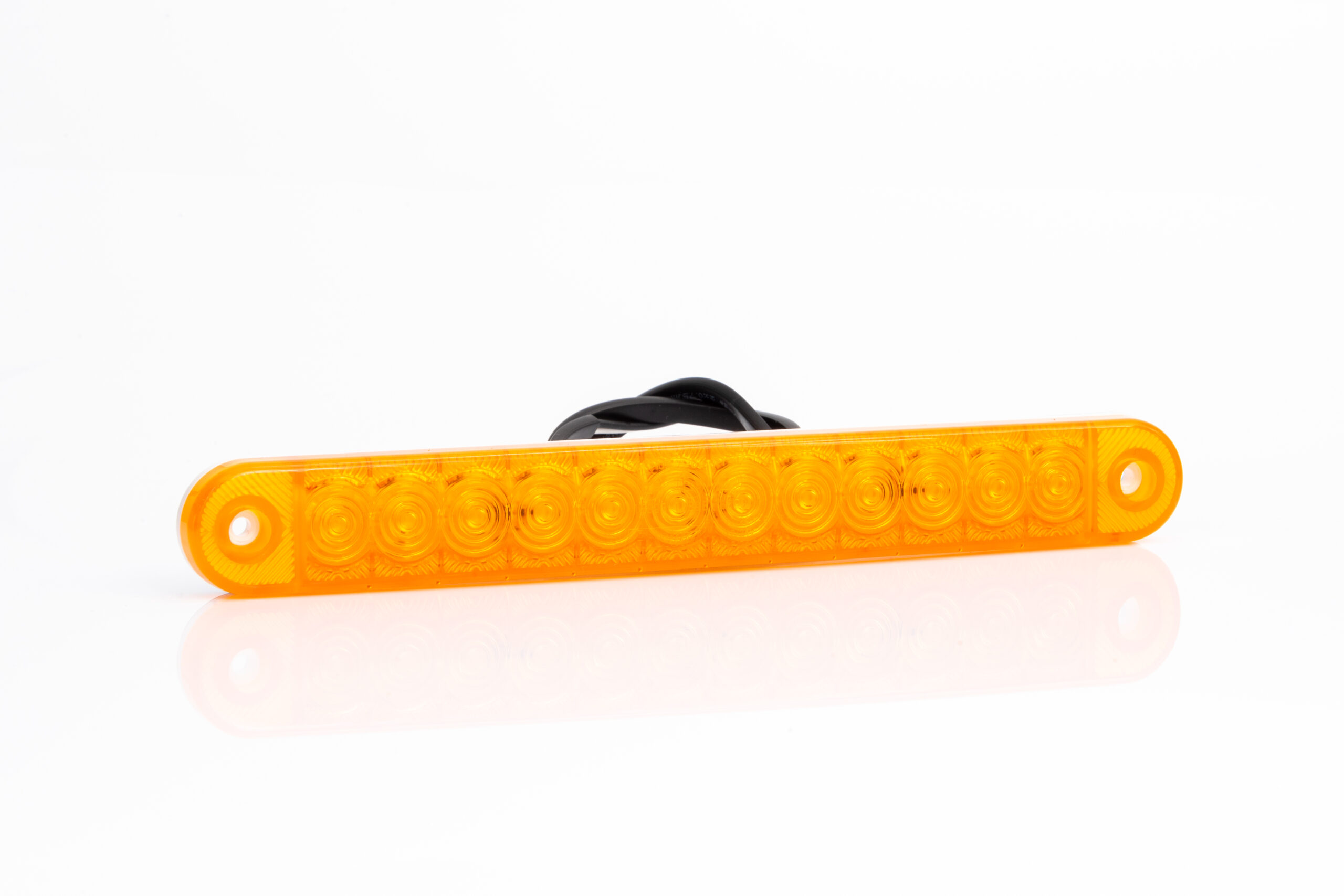

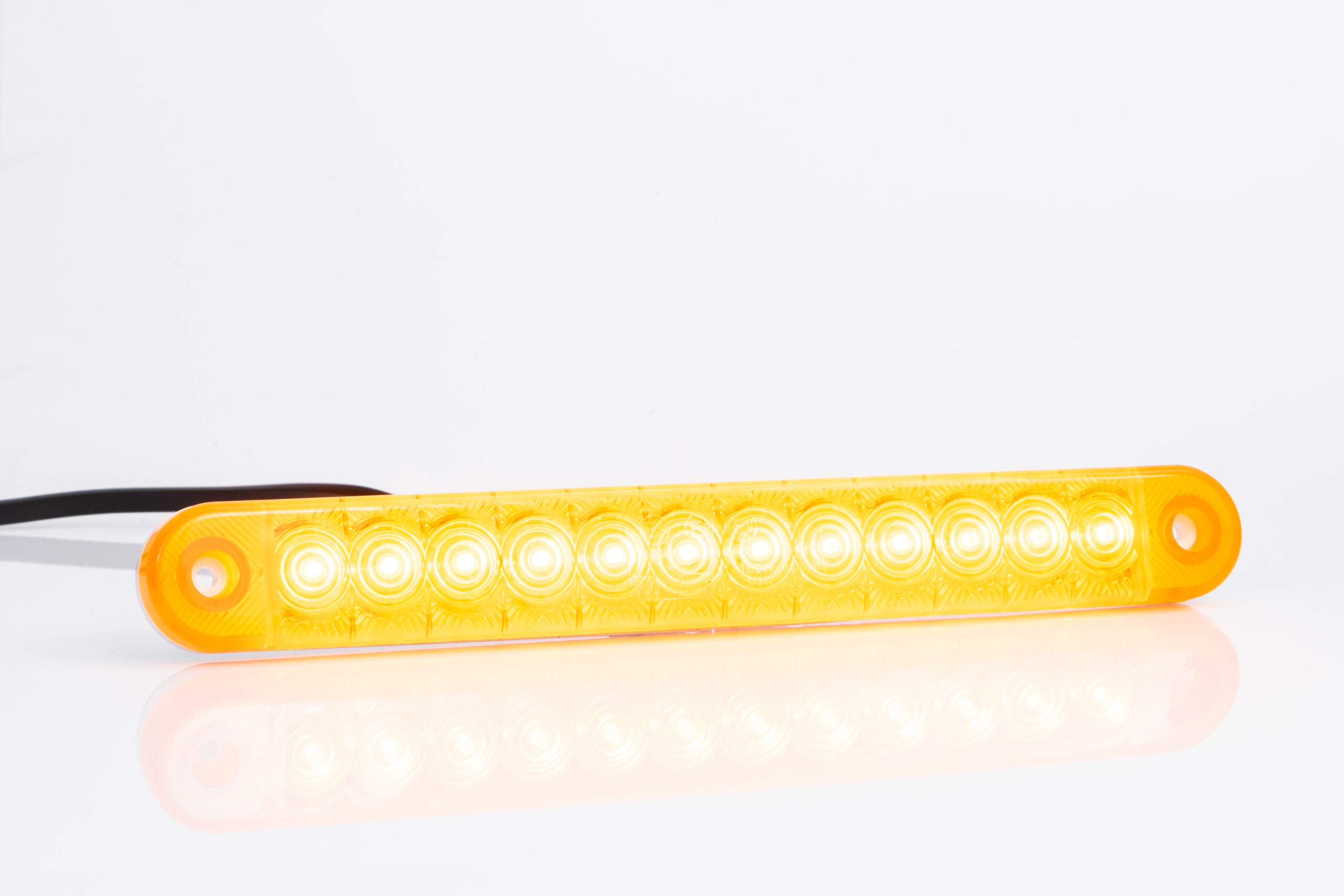

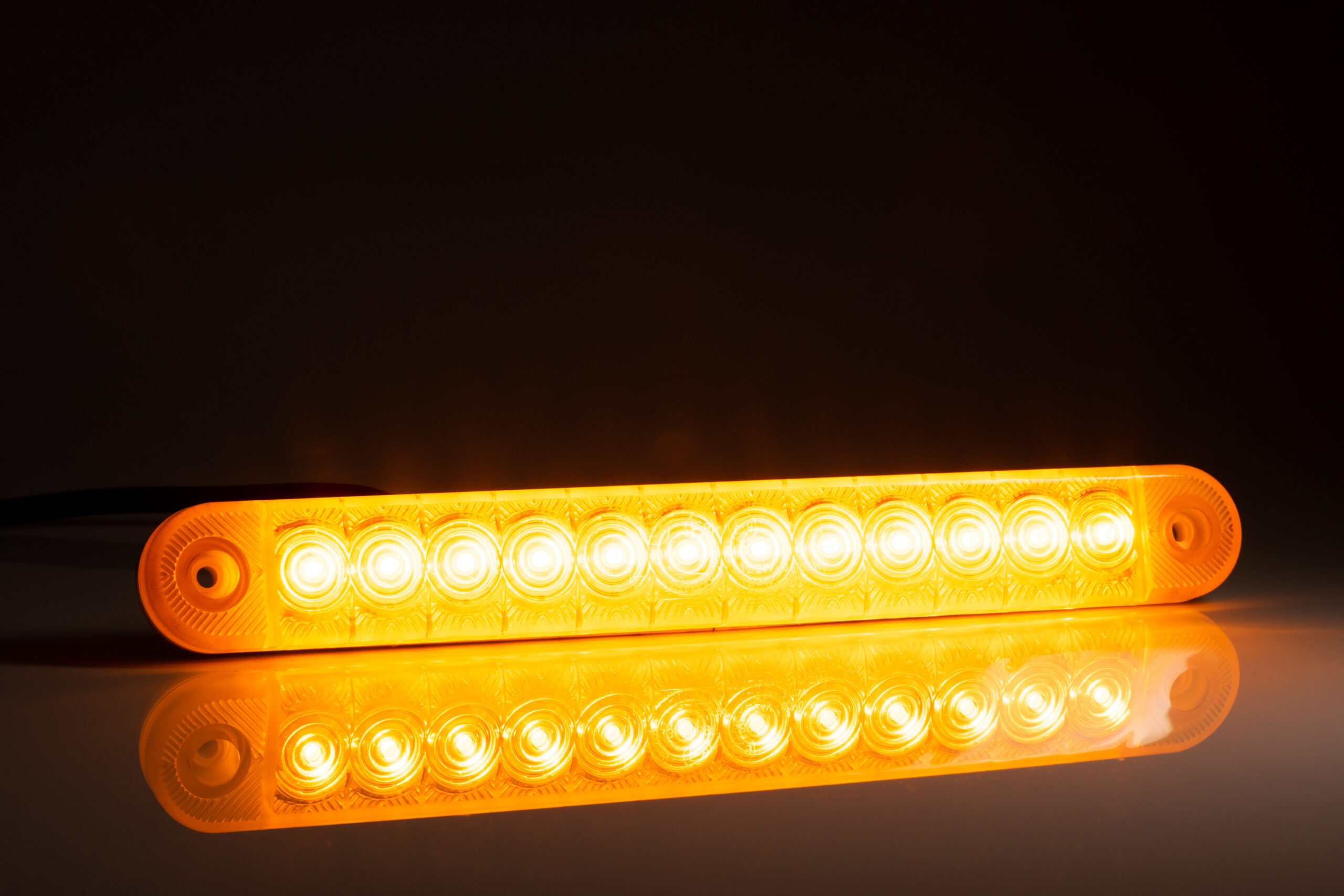

Fristom FT-195 Z LED Amber Marker Lamp

The FT-195 Z LED is a compact, energy-efficient amber marker lamp designed for automotive applications. It operates within a wide voltage range of 12 to 30 volts, making it suitable for various vehicle electrical systems.

Key Features

• Light type: LED marker lamp with a single function
• Voltage: 12-30V DC
• Colour: Amber
• Power consumption: 0.6W at 12V, 1.2W at 24V
• Current draw: 0.05A at 12V and 24V
• EMC homologation ensuring electromagnetic compatibility
• Robust construction with impact-resistant polycarbonate body and lens
• Polarity-free connection for easy installation

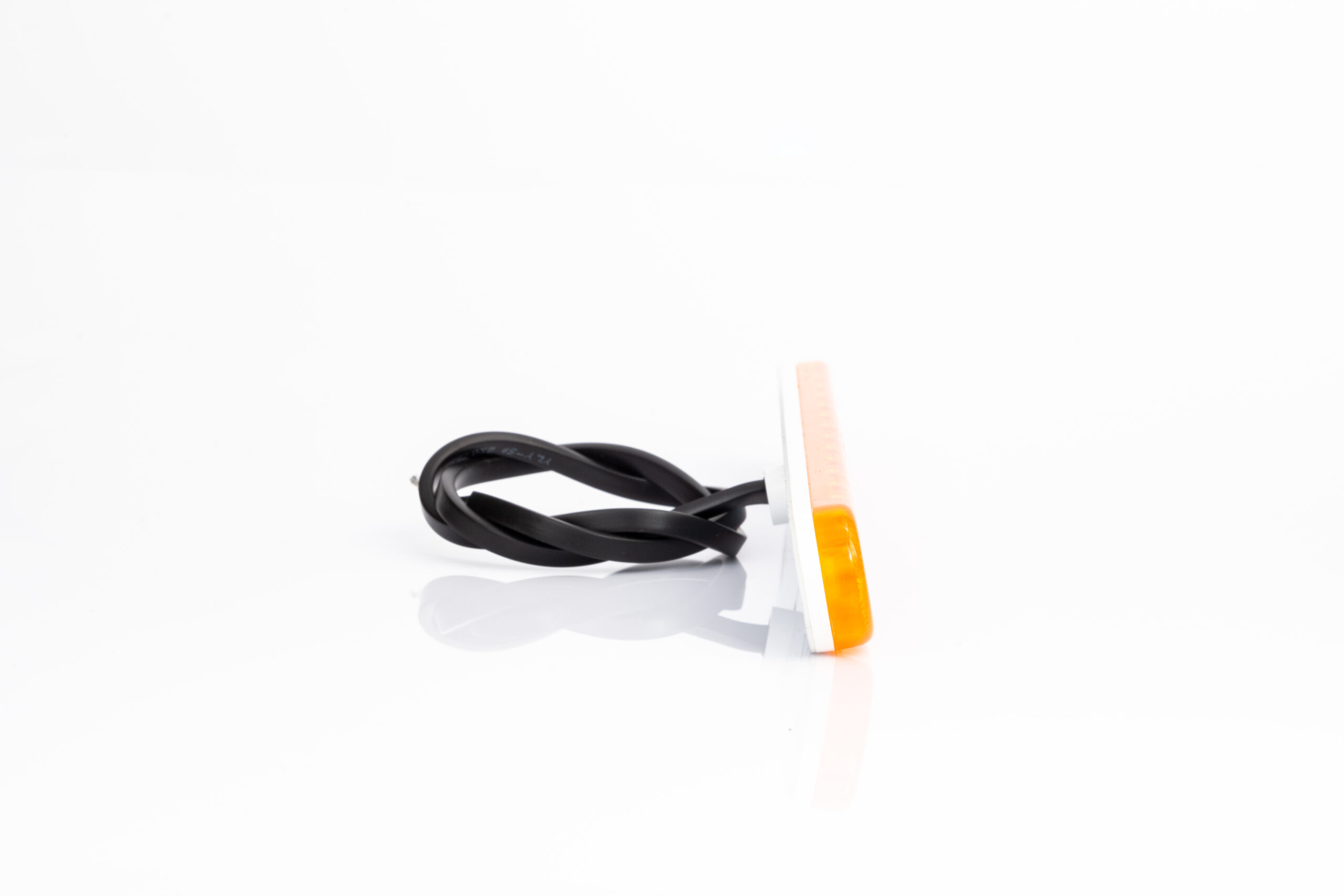

• Supplied with 0.5 m cable (2 wires, 0.75 mm²)

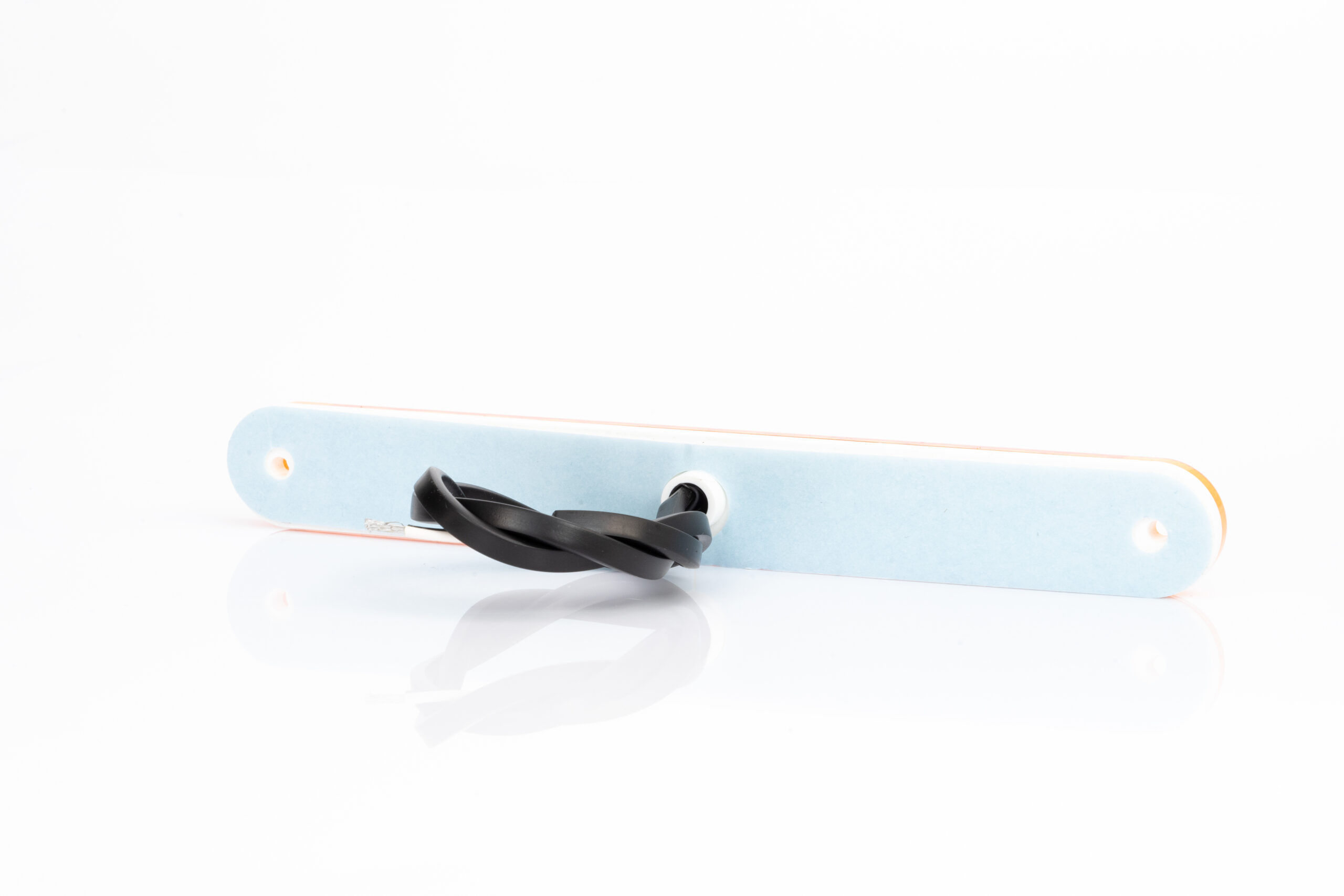

• Mounting options: horizontal or vertical installation using double-sided adhesive tape or screws

Applications

Ideal for use as a marker lamp on commercial vehicles, trailers, and machinery where reliable, low-power amber lighting is required to indicate vehicle dimensions and improve visibility.

Installation

The lamp can be mounted horizontally or vertically using the supplied self-adhesive tape and/or screws, providing flexibility to suit different vehicle designs. The connection is polarity-free, simplifying wiring.

Technical Documents

No technical documents are currently available for this product.
