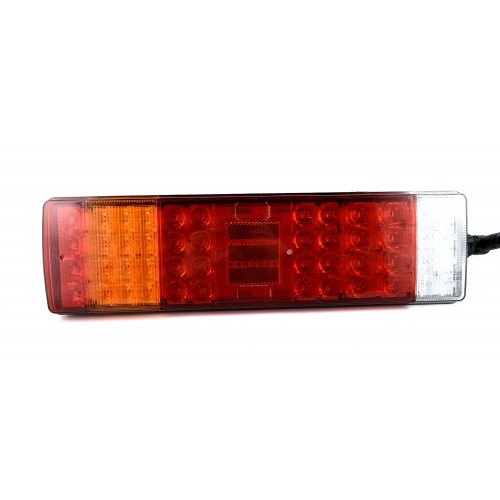

TL-L1863

L1863 has features such as: tail, stop, indicator, reverse, fog, NPL, rear side marker, side marker, reflector. The lamp has 56 LEDs.

L1863 characterized by a power of 0,3 W, 2 W, 21 W, 3 W, 1 W, 0,7 W, 0,3 W, 0,25 W. L1863 is a certified product. A

ccording to standards such as ECE R3, ECE R4, ECE R6, ECE R7, ECE R10, ECE R23, ECE R38, ECE R91.

Moreover, it is made of materials: Lens: PMMA+PC, Housing: ABS+PC. Fastening is screw.

The voltage is 12 V/24 V. The product is packaged in the following configuration cart. dim: 500x140x110 mm, lamp weight: 1190 g, 10 pcs/bulk box.

Instruction

• Mount exclusively in specialized workshops.

• The connection between the lamp and vehicle’s installation should be isolated with heat-shrink tube, or, alternatively, with isolating tape,

to avoid getting water and moisture to the copper wire of the lamp, which can damage electronic components.

When it comes to lamp and plug, the plug should be mounted safely.

• Do not cut off tinned ends. • Lamps must be installed only in accordance with UNECE regulations
