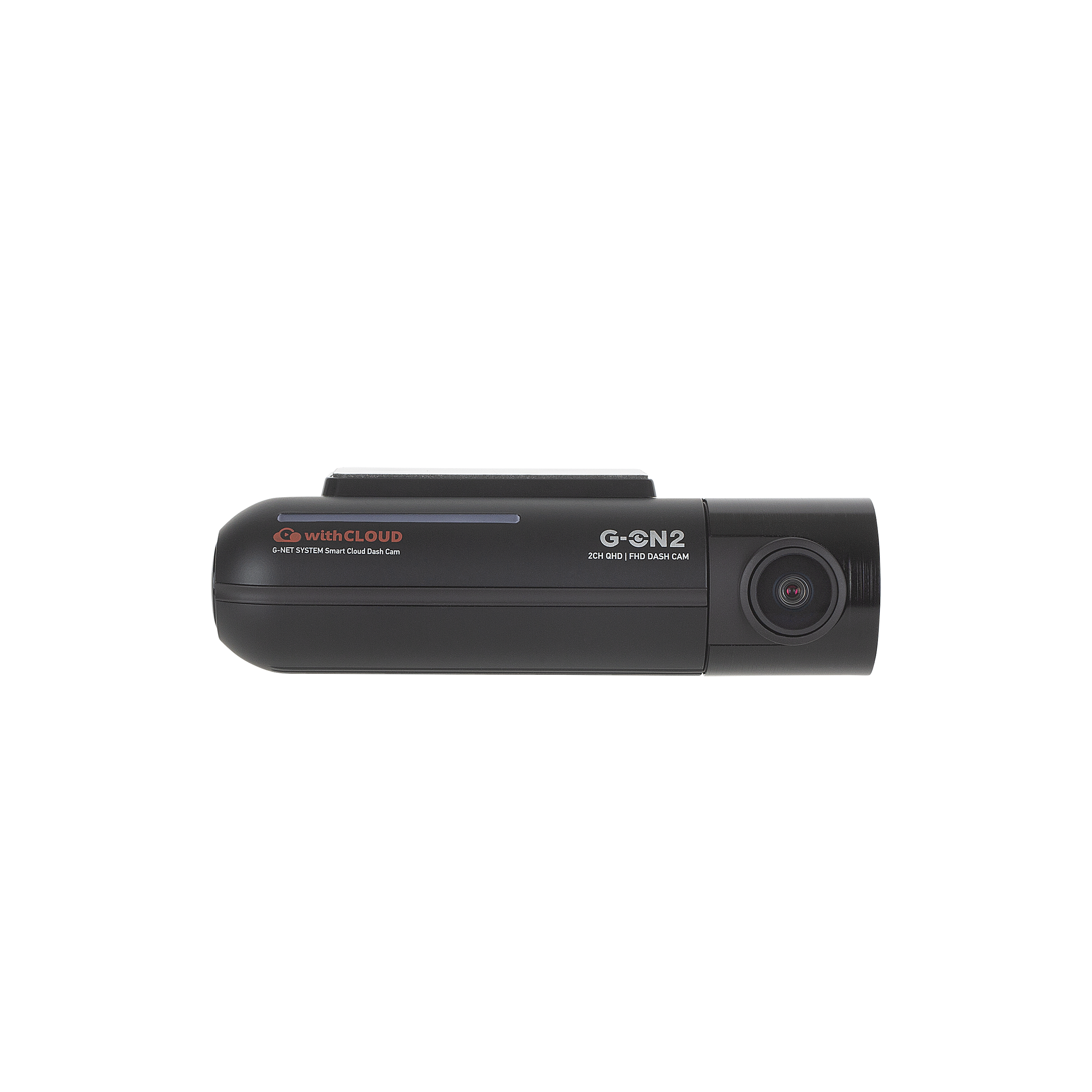

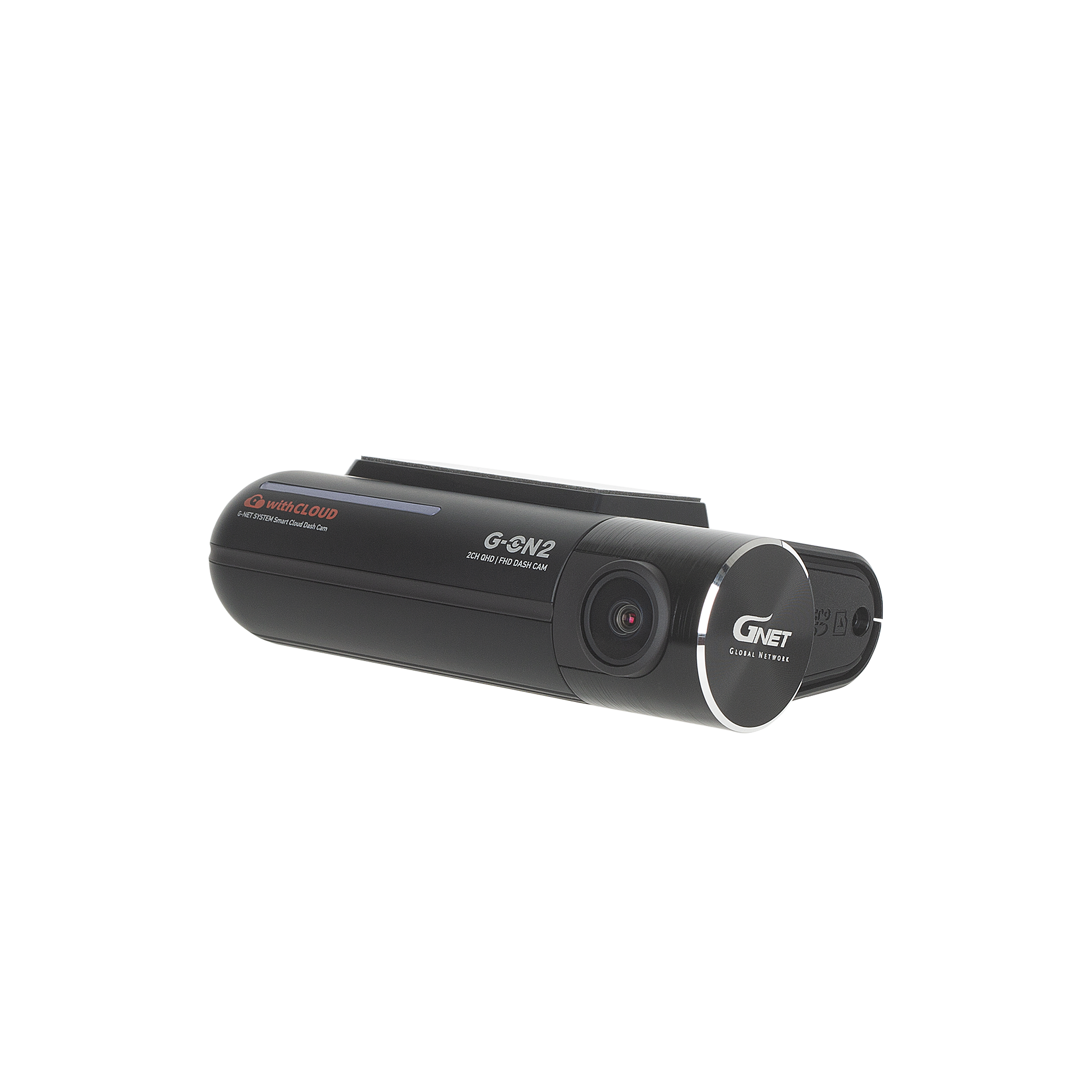

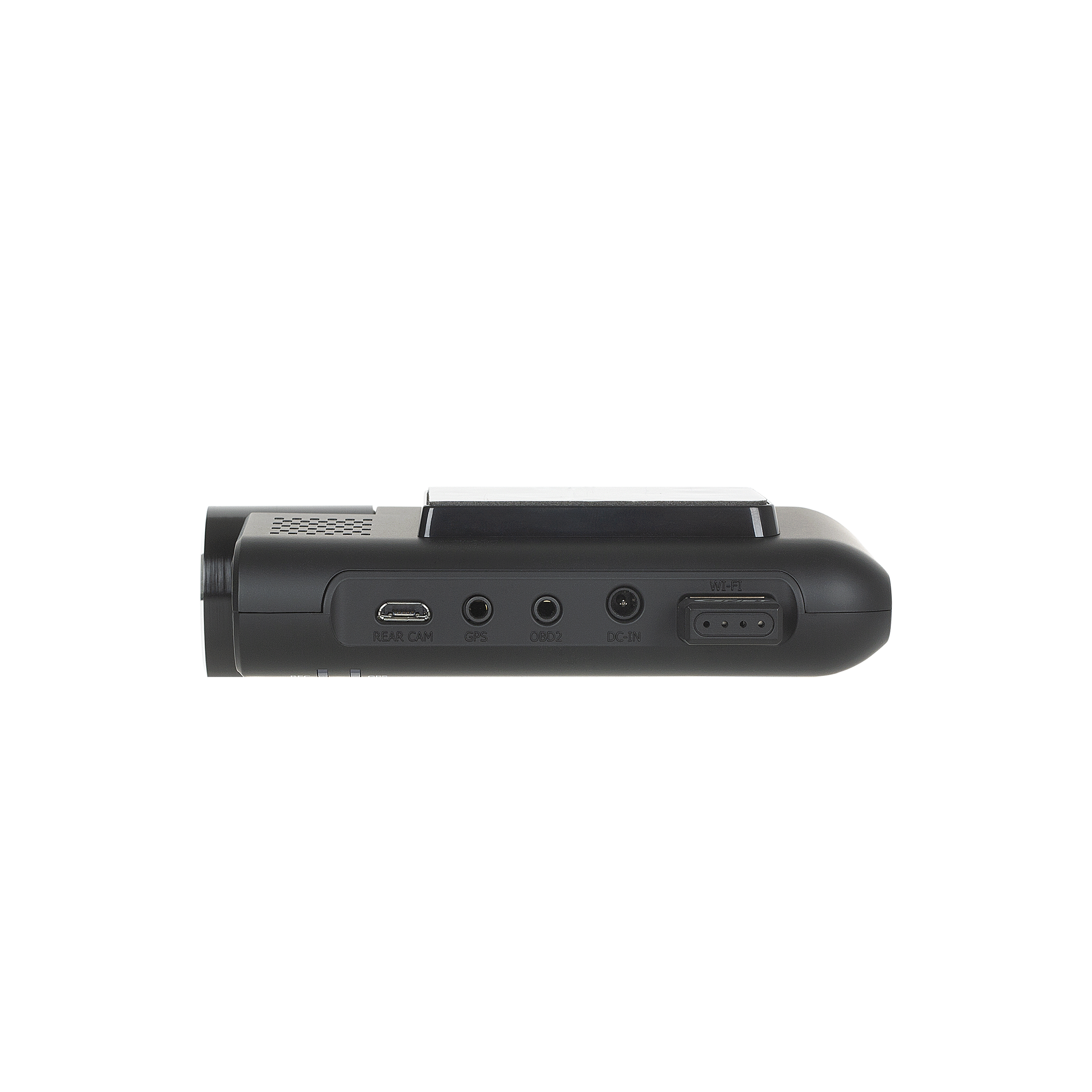

G-ON2-2CH

2 Channel, 64GB, WiFi, GPS, Hard Wire

Specification:

Functionality:

The New Cloud Service for GNET Dash Cam Users

withCLOUD™

“withCLOUD” for fleet management system by GNET SYSTEM’s technology.
Unlimited storage capacity beyond the limitation of dash camera memory card.

*This requires an internet connection with data available, fees and charges will apply.

Outstanding Visibility under the Starlight

The STARVIS is back-illuminated pixel technology used in CMOS image sensors for surveillance camera applications. It features a sensitvity of 2000 mV or more per1 um2(color product, when imaging with a 706cd/m2 light source, F5.6 in 1 s accumulation equivalent), and realize high picture quality in the visible light and near infrared light regions.

ADAS

3 Functions for Safe Driving

“ADAS update”

ADAS is a safe driving assistance system for the driver’s safe driving environment

* Warning icons for lane detection, forward departure and collision are only visible if the LCD is on.
ADAS settings are available when the GPS is connected.

TIME LAPSE

Available for Long Parking Records

Time-lapse function automatically applied when entering parking mode.

Time Lapse mode records one frame per second, minimizing the size of the video for a long time to record parking.

Time Lapse mode records one frame per second, minimizing the size of the video for a long time to record parking.

H.265

Video codec(HEVC)

*HEVC(High Efficiency Video Coding)

H.265 compression rate is up to 2 times higher than H.264.

It means that users can use 256GB SD card as 512GB SD card.

REAL HDR

Clear Recording Quality when Driving at Night

Real HDR is installed to remove light blurring when driving at night,

and it shows clear recording quality in various lighting conditions such as backlight and tunnels.

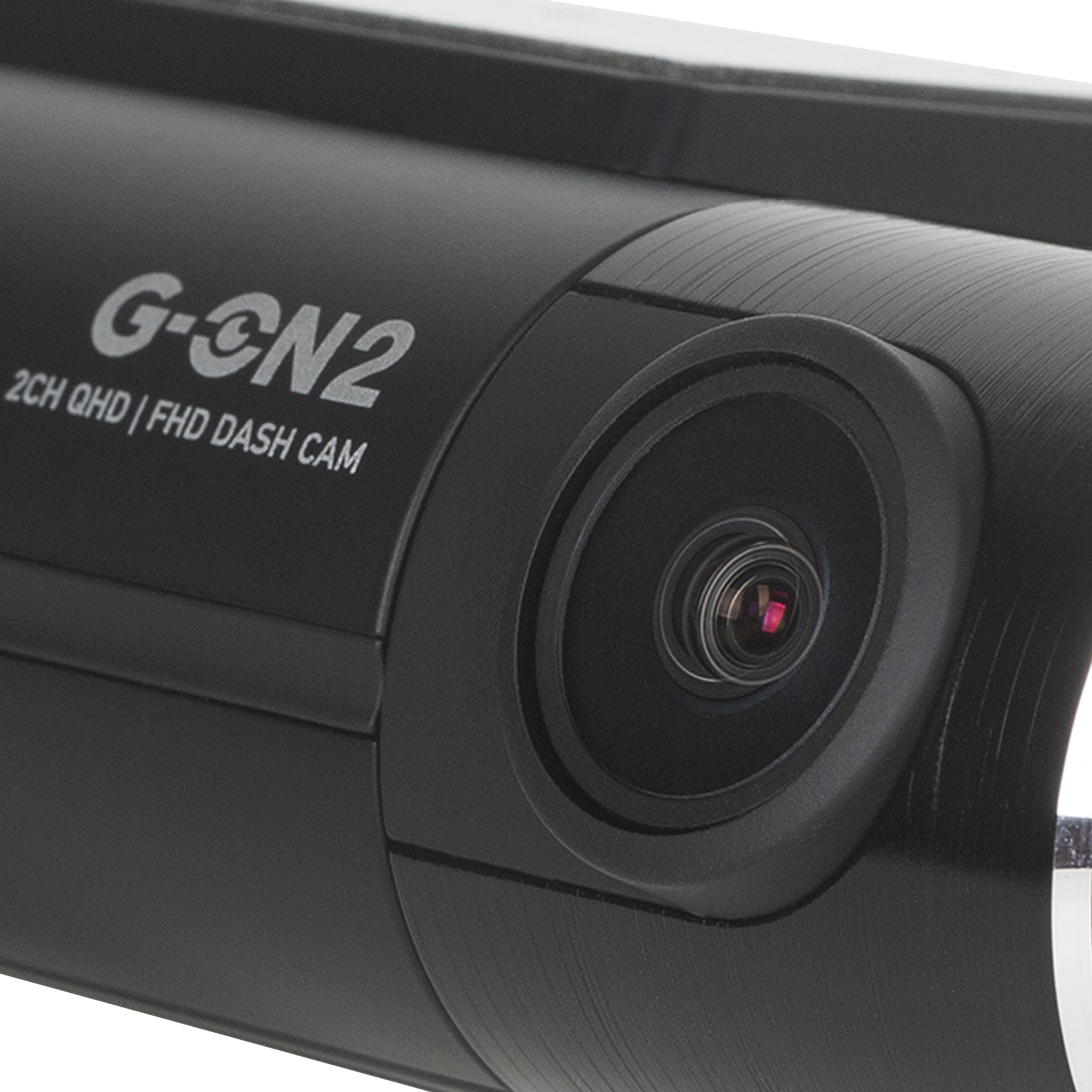

WIDE VIEWING ANGLE

Optimal Viewing Angle without Distortion

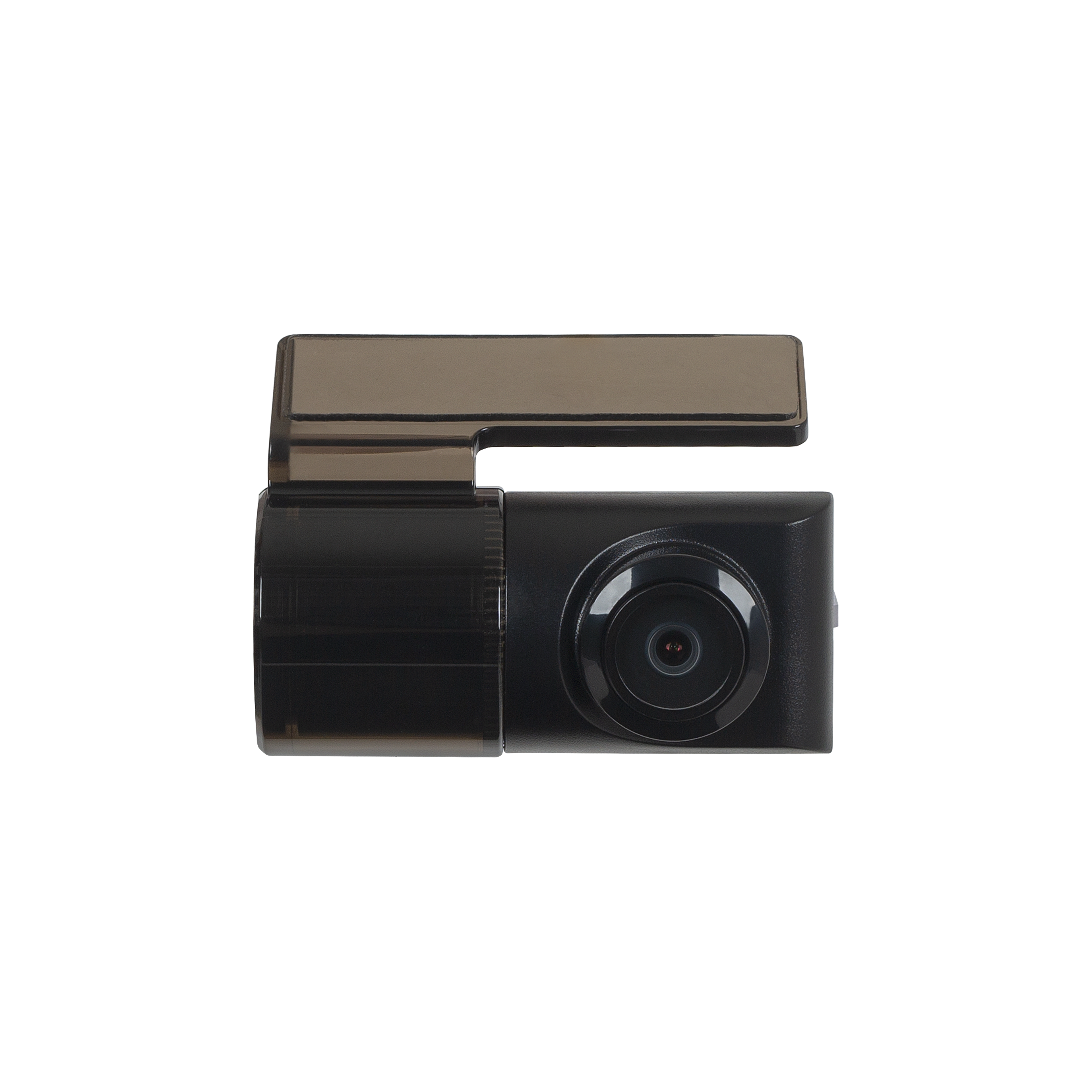

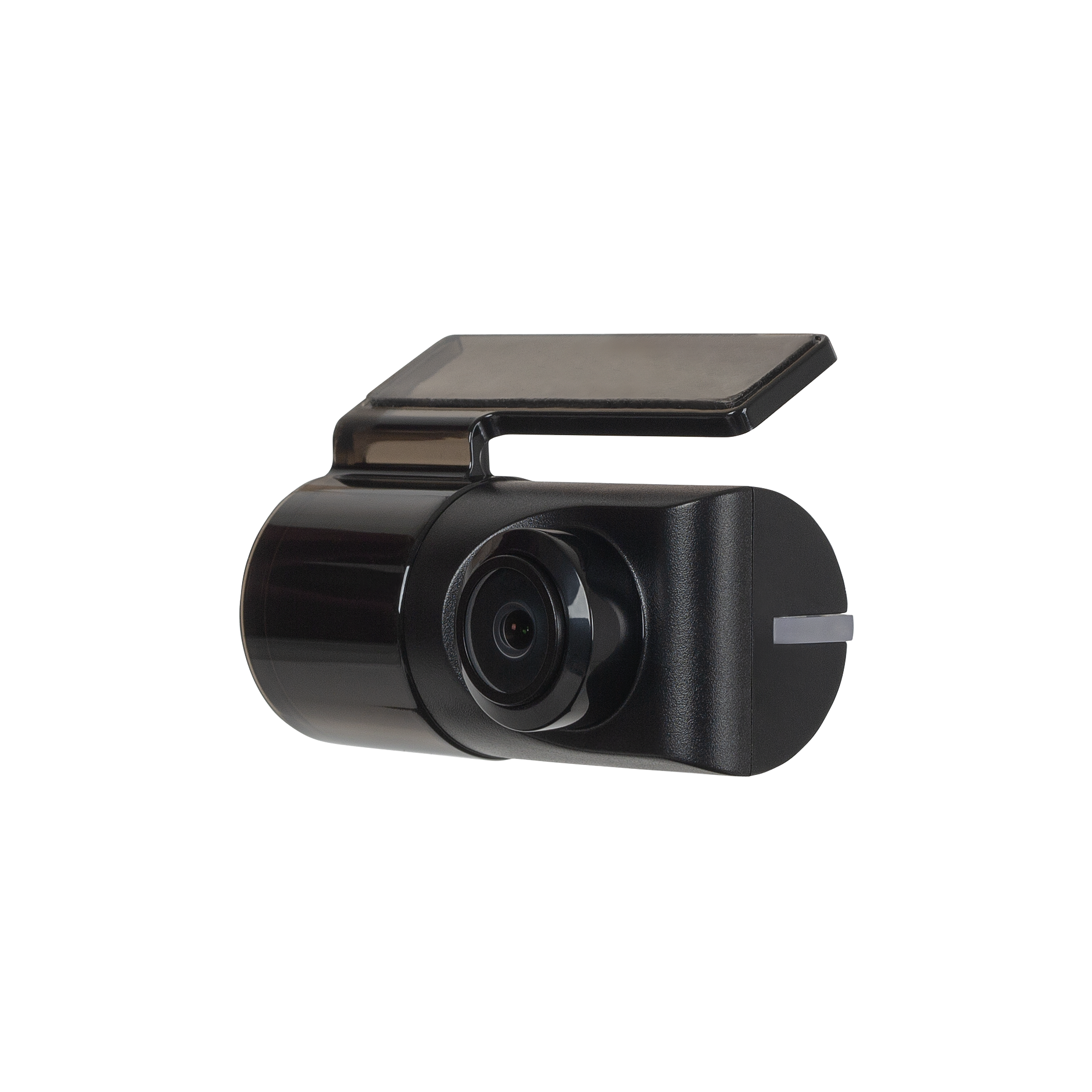

Front camera: Left / Right distortion-free viewing angle 160°, Rear camera: 150° / Option – Internal IR camera(driver, passenger): 150°, Exterior IR, IP69K camera: 140°

Excessive angle of view refracts the image, causing effects such as distortion and loss of distance.

The GNET System has an optimal camera angle of 160° without those problems,

the situation of accidents on the side angle is recorded more reliably, and images without distortion of left / right / up / down are provided.

G-NET APP

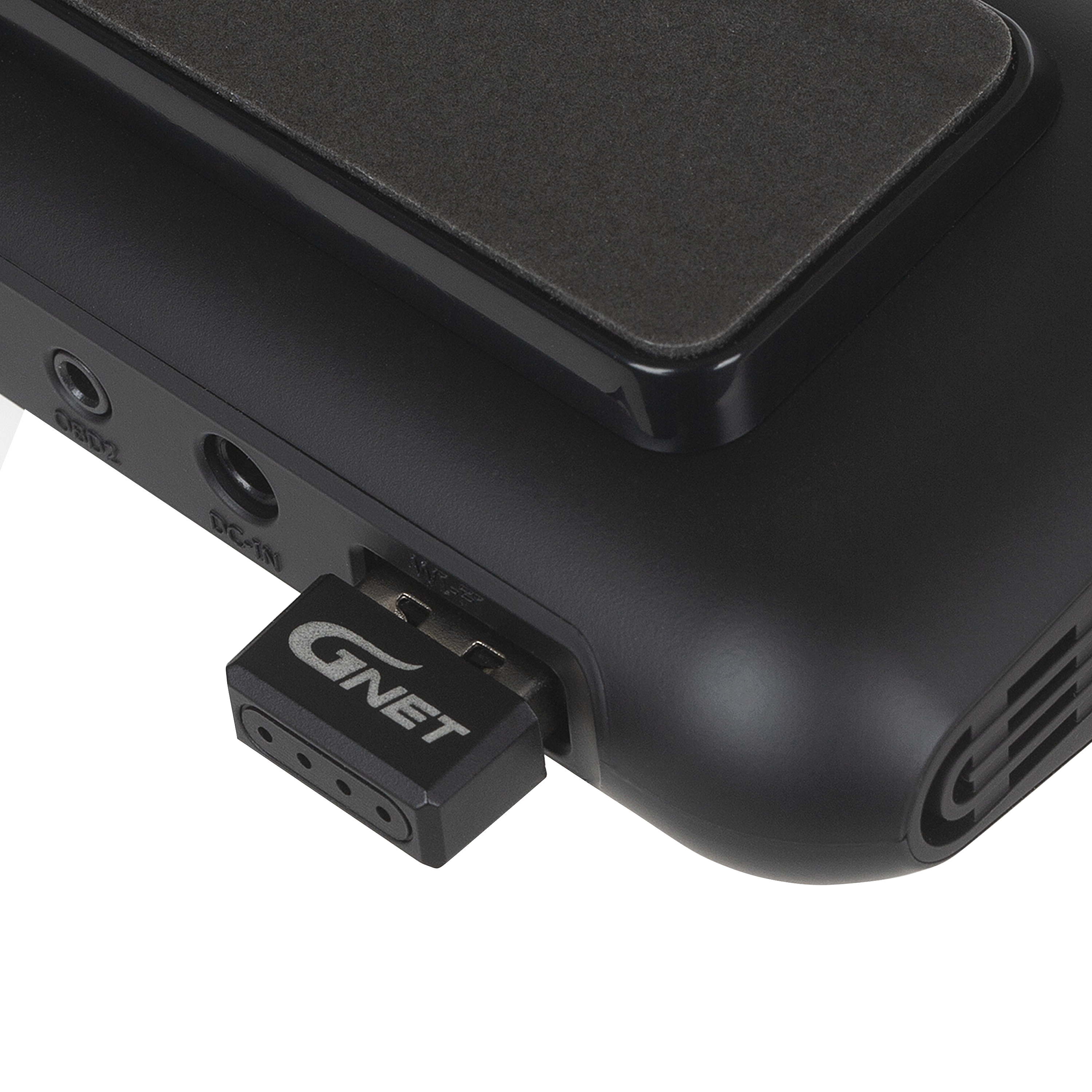

Smartphone Link via Wi-Fi®

User-friendly GUI

User convenience has been further upgraded

using intuitive icons for anyone to operate conveniently

*You can only connect your smartphone with WiFi® dongle connected to the black box

*Disable IOT/WiFi feature when CLOUD is enabled

LBP FUNCTION

For Vehicle Battery Discharge Protection

It is an intelligent Safe Guard function that automatically shuts down recording when the voltage falls below

a specified voltage and cuts off the power to protect the battery of the vehicle.

LBP FUNCTION AUTO SAFE GUARD ( LBP ON / OFF )

Settings can be made directly from the dedicated GNET PC VIEWER, and the vehicle voltage can be checked when checking

the recorded video of the vehicle. You can easily set up wirelessly via GNET APP at the time of smartphone interlocking

HIGH TEMPERATURE TEST PASS	MEMORY CARD AUTOMATIC RECOVERY AND SELF-FORMAT	BUILT-IN VOICE GUIDE AND MICROPHONE
G-Net has been passed the high-temperature test. Differs from other brand dash cameras which shut down the power because they can not withstand high temperatures.	Unlike other companies’ black boxes, which require users to format periodically, JDR’s own file system with excellent reliability is applied for convenient use without regular format.	It has a friendly voice guide, high-quality voice recording, and a high-performance microphone, which makes it easier to check the operation and recording conditions while driving.

SECURITY LED FUNCTION	EXTERNAL GPS	VARIOUS RECORDING MODES
It is equipped with intelligent security LED function to prevent crimes that can parking terrorism and theft. With a clear view, it detects movement in parking mode and starts recording automatically.	You can check at a glance the data image received from the GPS while driving. * External GPS is optional (sold separately)	Parking Surveillance / Motion Detection The event recording is automatically recorded for a certain period of time when the impact is detected on the vehicle in various recording modes.

GNET PC VIEWER

Compitable GNET PC VIEWER

Easily play and check the recorded video with a viewer program for PC

It provides various functions Zoom, partial zoom function, Lane drawing function, set recording frame.
Backup features include AVI file generation, tampering prevention, thumbnails, and interval repetitive searches.
