FT-610PLED-DI

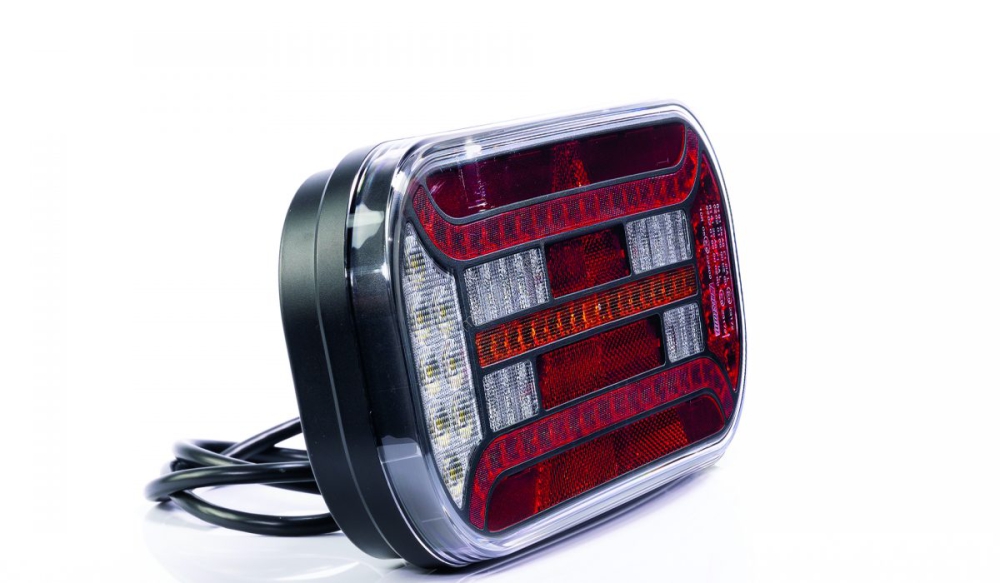

Fristom FT-610 P LED DI Rear Lamp

The Fristom FT-610 P LED DI is a universal rear combination lamp designed for right-side installation on semi-trailers, trailers, tow trucks, and other vehicles requiring a reflective triangle. This LED lamp operates within a 12-30V voltage range and integrates six essential lighting functions without a number plate light.

Key Features

• 6 functional lighting modes: stop, position, indicator (with dynamic direction indicator), reversing, and fog lamps
• Built-in reflective triangle for enhanced visibility and compliance
• Smart Brake Light technology partially illuminates the stop function when the fog lamp is active
• Universal voltage compatibility (12-30V) suitable for various vehicle types
• Robust construction with a polycarbonate (PC) cover for resistance to harsh weather and mechanical damage
• Electrical protection against reverse polarity
• Certified with European E9 approval and EMC electromagnetic compatibility
• Operates reliably in temperatures from -40°C to +55°C

Technical Specifications

• Voltage: 12-30V
• Functions: Stop, position, indicator (dynamic), reversing, fog
• Reflective triangle integrated
• Approvals: E9, EMC
• Cable length: 1 metre
• Weight: 0.95 kg

Electrical Consumption

• Rear running light + number plate light (bottom): 0.2A at 12V / 0.2A at 24V
• Stop light: 0.3A at 12V / 0.3A at 24V
• Indicator: 0.85A at 12V / 0.85A at 24V
• Reversing light: 0.2A at 12V / 0.25A at 24V
• Fog light: 0.15A at 12V / 0.15A at 24V

Applications

Ideal for use on semi-trailers, trailers, tow trucks, and other commercial vehicles requiring a compliant rear lamp with a reflective triangle. The lamp’s robust design and multiple functions make it suitable for demanding environments and ensure safety and visibility.

Installation

The lamp is supplied with a 1-metre cable and is designed for right-side mounting. It features electrical protection against reverse polarity to safeguard the lamp and vehicle wiring.

Compliance and Quality

The FT-610 P LED DI meets all European E9 approval requirements and holds EMC certification, ensuring electromagnetic compatibility. The lamp is manufactured with high-quality materials to withstand mechanical impacts and adverse weather conditions.

Technical Documents

No technical documents are currently available for this product.
