FT-500-25LED

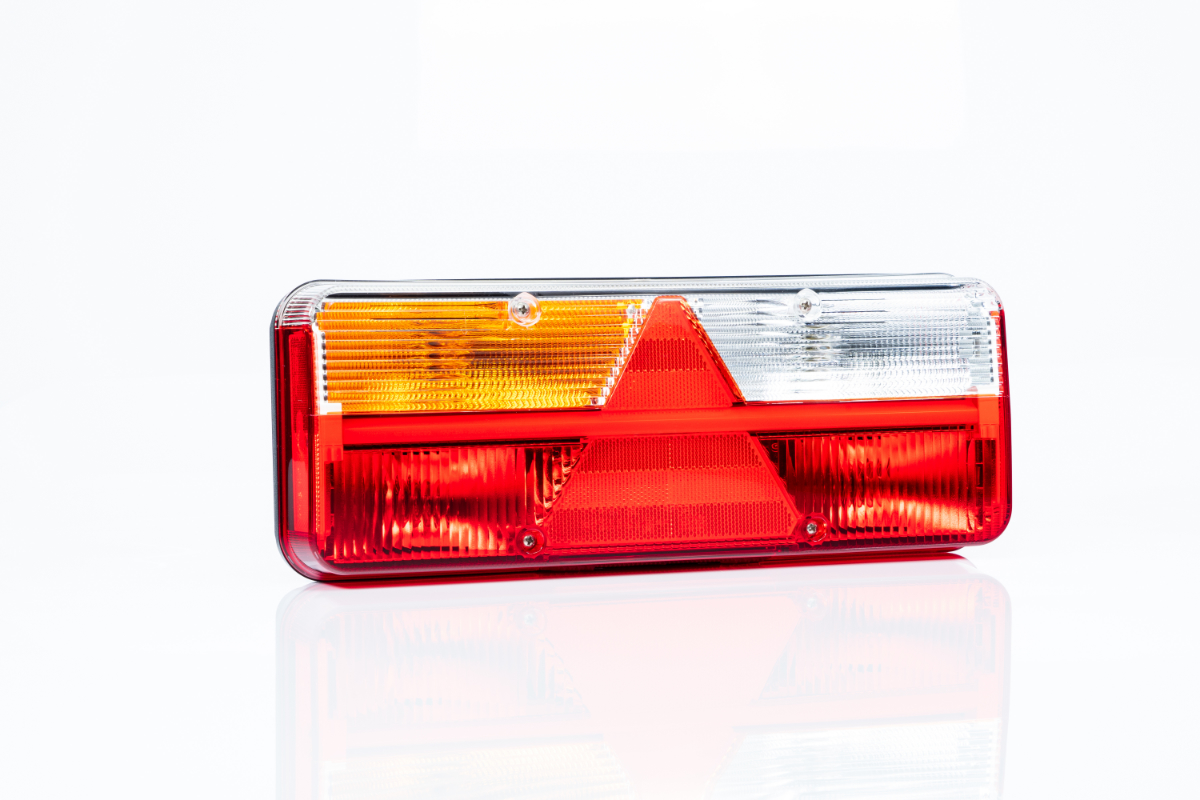

Fristom FT-500-25 LED Rear Lamp

The FT-500-25 LED rear lamp from Fristom offers a hybrid lighting solution combining LED and bulb technology, providing flexibility and reliability for various automotive applications. Designed for right-side mounting, this 6-functional lamp operates within a 12-30V voltage range and comes equipped with a 2 metre cable for easy installation.

Key Features

• Hybrid light technology allowing the user to swap between LED panel and bulb as needed
• Replaceable light cover to avoid full lamp replacement if damaged
• Available with or without outline marker lamp
• Dynamic LED direction indicator light
• Load on the LED direction indicator light for enhanced performance
• Four additional 2-pin outputs on the lamp body for optional connection of extra lights such as additional stop light, number plate lighting, reverse lamp, or side lamps
• Universal mounting screw spacing for compatibility with various vehicles
• Two fuse sockets for plate fuses to protect optional connected lights (note: fuses are not included)
• Possibility to mount a reversing signal

Technical Specifications

• Voltage: 12-30V
• Functions: 6-functional rear lamp (rear position light, brake light, indicator light, reverse light, rear fog light, number plate light not included)
• Cable length: 2 metres
• Current consumption (peak values at 12V / 24V):
  • Rear position light + number plate light: 0.12A / 0.12A
  • Brake light (STOP): 0.34A / 0.17A
  • Indicator light: 0.4A / 0.2A
  • Reverse light: 0.1A / 0.05A
  • Rear fog light: 0.34A / 0.17A

Additional Information

The FT-500-25 LED lamp is designed for durability and ease of maintenance, featuring a replaceable light cover and the option to connect additional lighting accessories. Its universal mounting and hybrid light technology make it suitable for a wide range of commercial vehicles.

For further details, please visit the Fristom product page.

Technical Documents

No technical documents are currently available for this product.
