FT-350LED

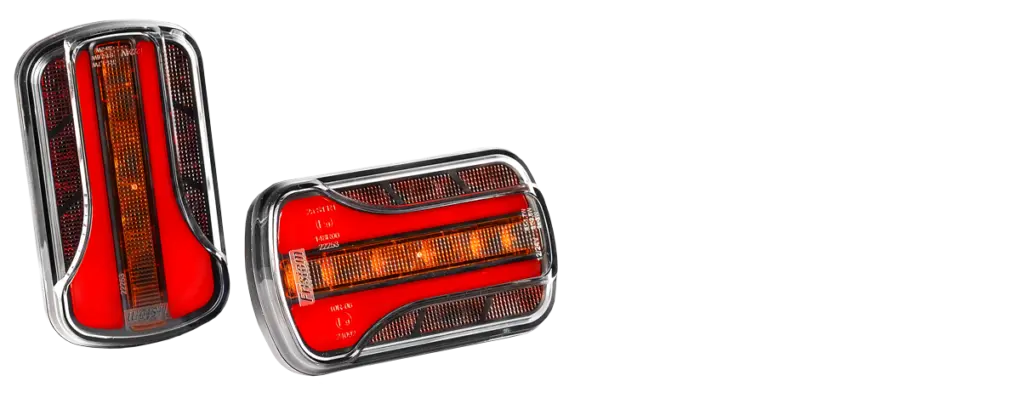

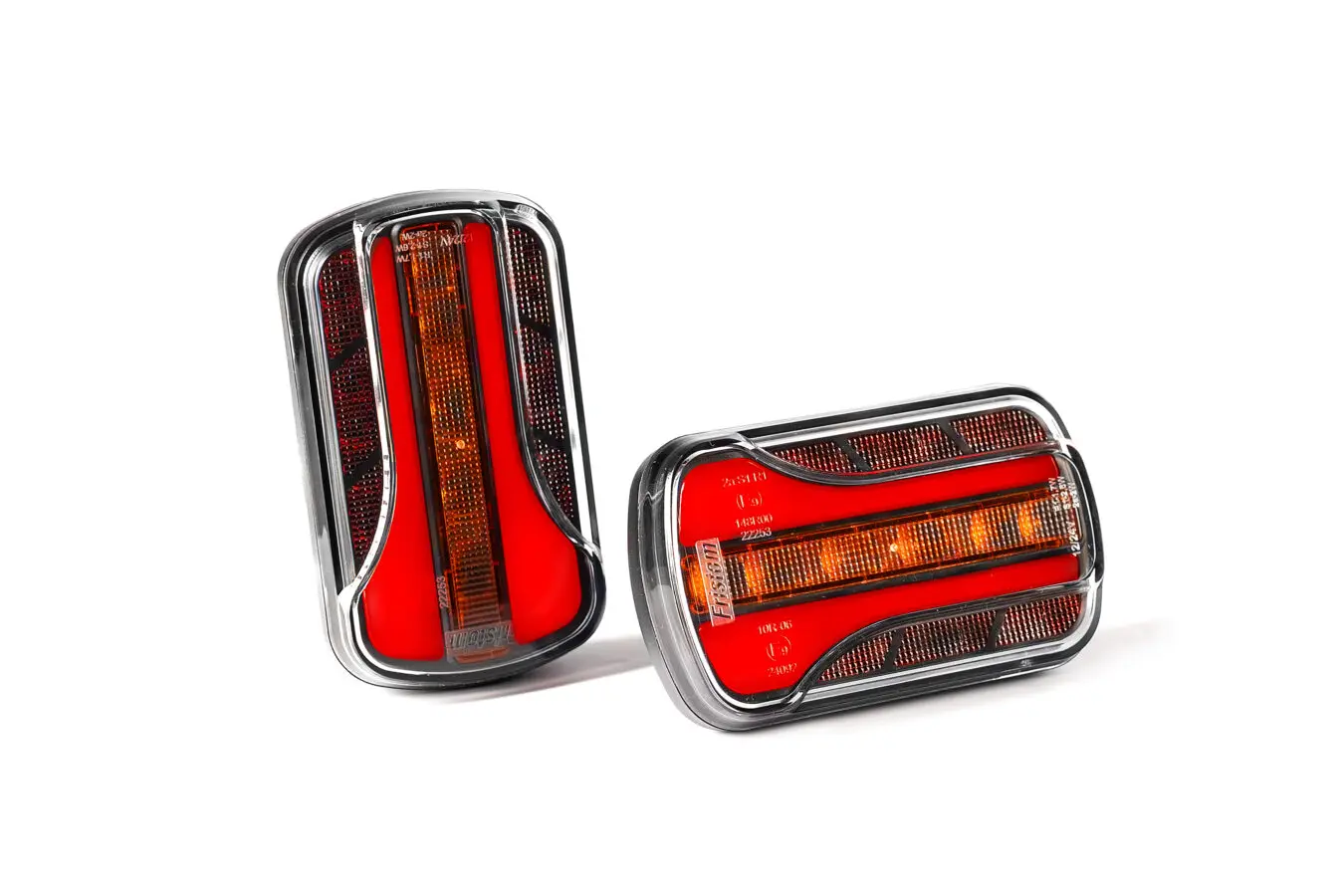

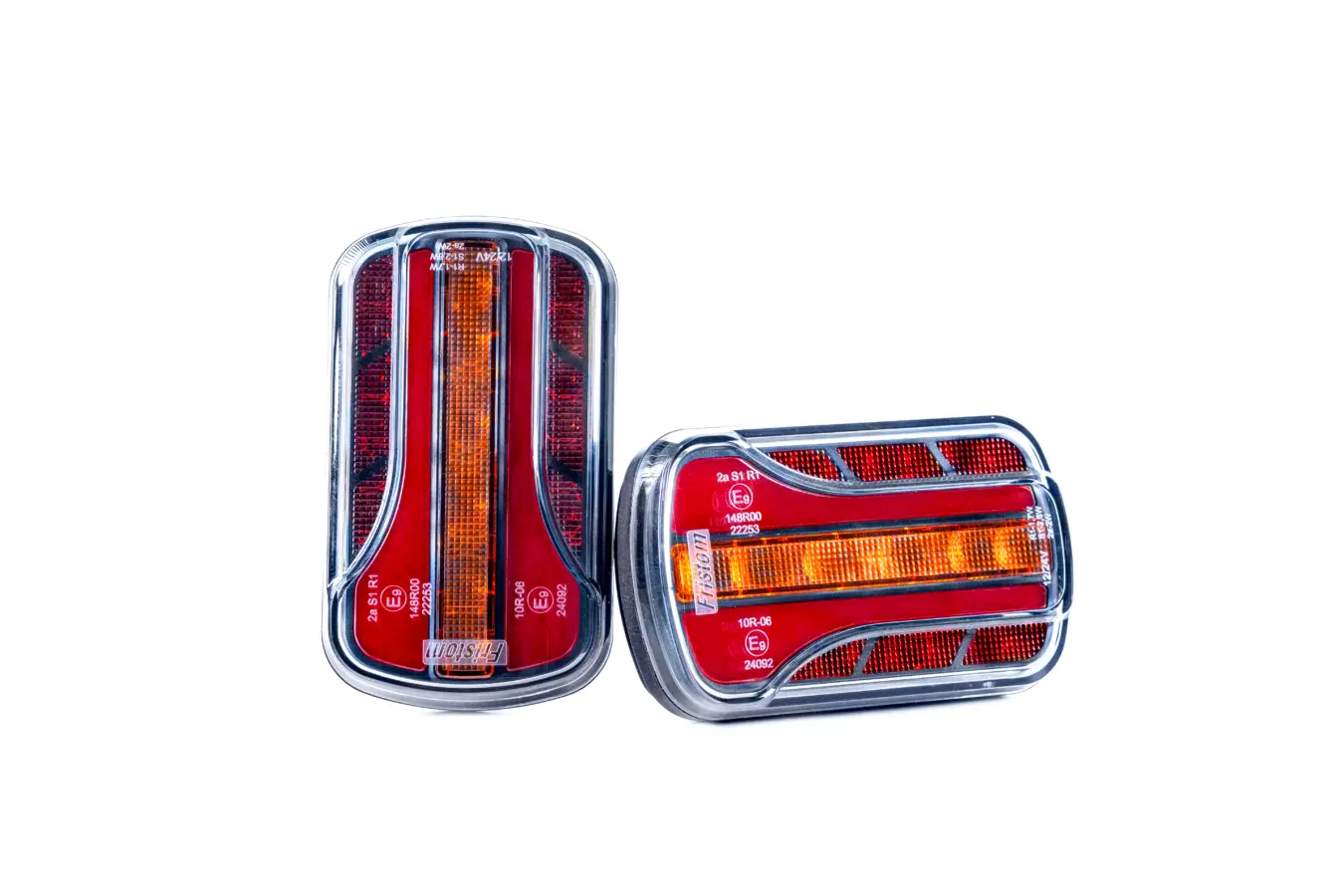

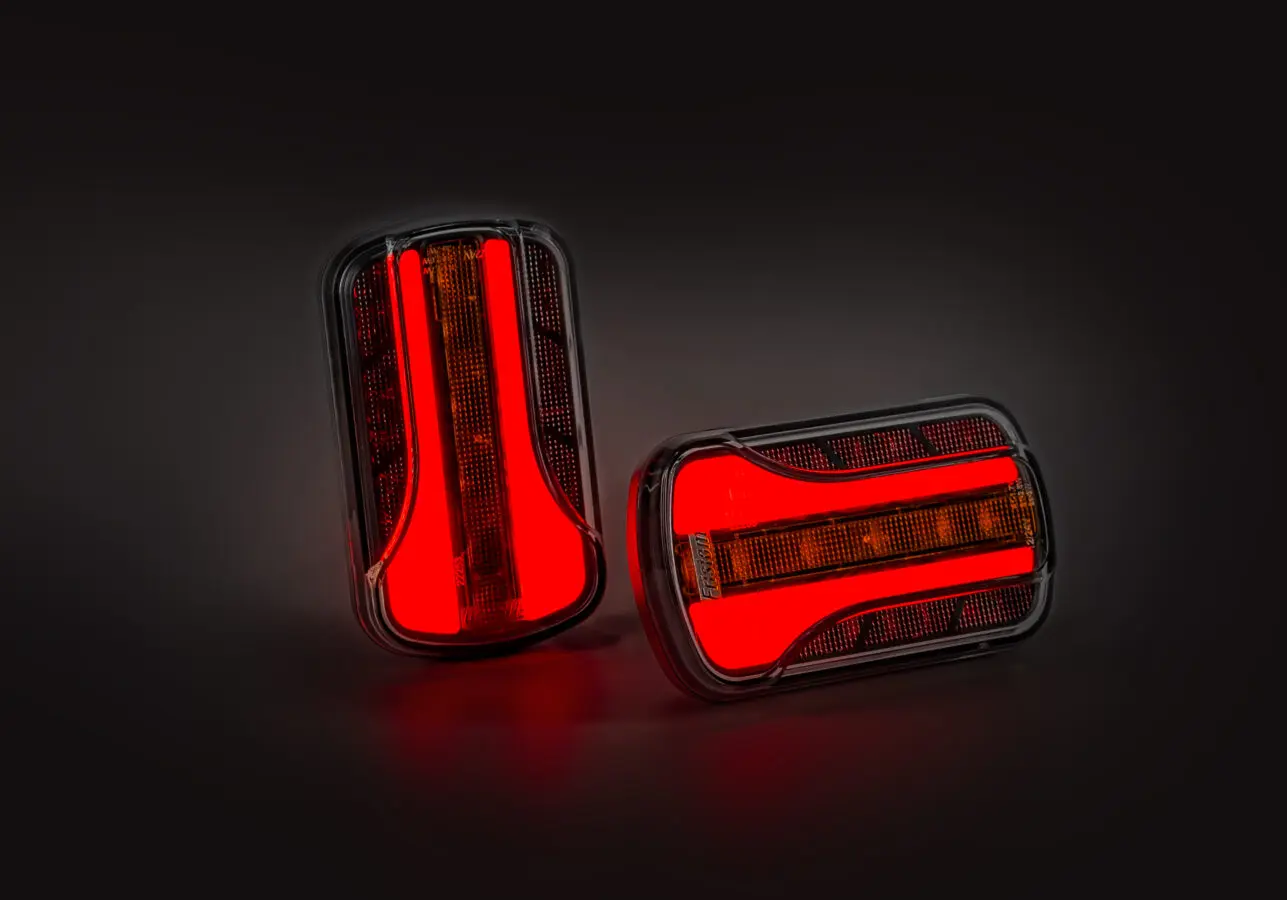

Fristom FT-350 LED Universal 3-Functional Rear Lamp

The FT-350 LED is a compact, slim, and robust rear lamp designed for automotive and agricultural trailers. It integrates three essential lighting functions: position lamp, stop lamp, and amber direction indicator, all powered by efficient LED technology.

Key Features

• Voltage range: 12-30V, compatible with 12V and 24V systems
• Three functions in one lamp: position, stop, and direction indicator
• High ingress protection rating of IP69, ensuring resistance to water, dust, dirt, and shocks
• Compact design ideal for vertical or horizontal installation on various trailer types
• Includes a 1 metre cable for easy connection
• Colour output: red for position and stop lamps, amber for direction indicator, and white elements
• Certified with European E9 homologation, ECE and EMC compliance

Technical Specifications

• Position lamp: 30 LEDs, 1.7W power consumption at 12V/24V
• Stop lamp: 12 LEDs, 2.6W power consumption at 12V/24V
• Direction indicator: 20 LEDs, amber light, 2W power consumption at 12V/24V
• Sequential activation of direction indicator LEDs
• Suitable for mounting height up to 750 mm above ground

Applications

The FT-350 LED rear lamp is perfect for all types of trailers, including automotive and agricultural trailers, where a reliable and multifunctional rear lighting solution is required. Its compact size and robust construction make it suitable for demanding environments.

Certifications and Approvals

• European E9 homologation (E9*148R00/05*22253*00)
• ECE compliance
• Electromagnetic compatibility (EMC) certified

Installation

The lamp can be installed both vertically and horizontally, offering flexible mounting options. It comes with a 1 metre cable to facilitate connection to the vehicle’s electrical system.

Technical Documents

• FT-350 LED E9 Homologation Certificate
• FT-350 LED Product Brochure
