FT-330LED

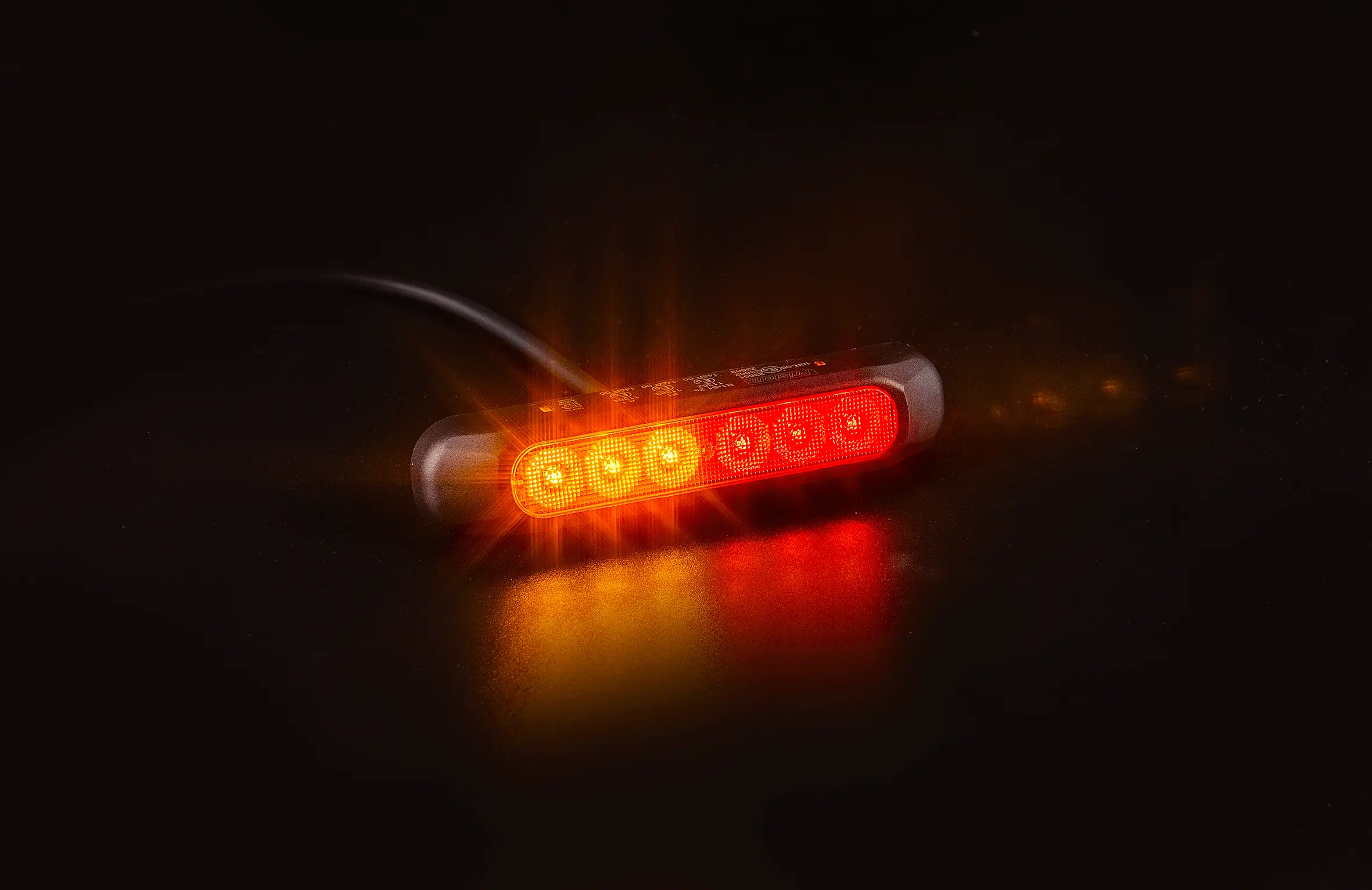

Fristom FT-330 LED Universal Rear Lamp

The Fristom FT-330 LED is a versatile rear lamp designed for automotive applications, compatible with 12 to 36 volts. It integrates three essential lighting functions: stop, positional, and indicator, utilising efficient LED technology to ensure reliable signalling and visibility.

Key Features

• Three functional LED lights: Stop (red), Positional (red, amber, white), and Direction Indicator (amber)
• Voltage range: 12-36V suitable for various vehicle types
• Robust construction with a polycarbonate (PC) lens for impact resistance
• Protection against electrical polarity reversal
• European homologations: E9, ECE, EMC ensuring compliance with regulatory standards
• 1 metre cable length for straightforward installation
• Sequential activation of indicator LEDs for clear signalling

Technical Specifications

• Stop lamp power consumption: 1W (12V), 2W (24V)
• Positional lamp power consumption: 0.25W (12V), 0.5W (24V)
• Indicator lamp power consumption: 0.8W (12V), 1.5W (24V)
• LED light colours: Amber (indicator), Red (stop and positional), White (positional)
• Approved for LED substitute light sources
• Designed for mounting height up to 750 mm above ground for positional lamp

Applications

The FT-330 LED rear lamp is ideal for universal use on trailers, commercial vehicles, and other automotive applications requiring compliant rear signalling and marker lighting.

Technical Documents

• Fristom FT-330 LED Technical Datasheet (PDF)
