FT-277LLED

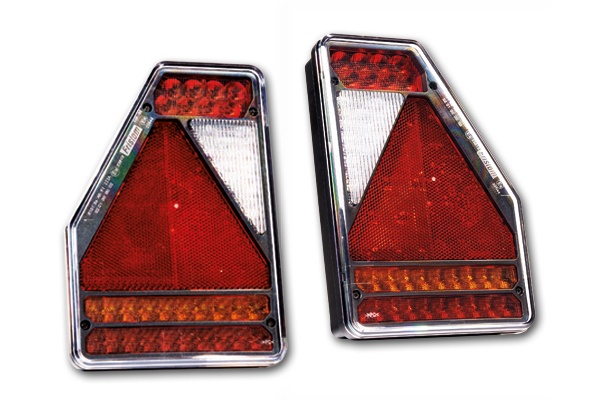

Fristom FT-277 L LED Universal Left Rear Lamp

The FT-277 L LED is a versatile and robust rear lamp designed for universal application on vehicles, trailers, agricultural and construction machinery. It operates within a wide voltage range of 12-30V, making it compatible with various electrical systems.

Key Features

• Six functional light modes: STOP, POSITION, INDICATOR, REVERSING, FOG, and rear running light.
• Integrated reflective triangle for enhanced visibility and safety.
• High ingress protection rating of IP68, ensuring total dust tightness and excellent water resistance.
• European homologation E9 and Electromagnetic Compatibility (EMC) certification.
• Shock-resistant polycarbonate lampshade for durability.
• Reverse polarity protection system to prevent electrical damage.
• Supplied with a 1 metre cable loom for straightforward installation.

Technical Specifications

• Voltage: 12-30V DC
• Light source: LED
• Functions and current consumption at 12V:
• Rear running light: 0.05A / 0.5W
• STOP light: 0.2A / 2.3W
• Indicator: 0.3A / 3.6W
• Reversing light: 0.13A / 1.6W
• Fog light: 0.25A / 2.7W
• Ingress Protection: IP68
• Homologation: E9, EMC

Applications

The FT-277 L LED lamp is suitable for use on a wide range of vehicles including trailers, trucks, agricultural and construction machinery, providing reliable rear lighting and signalling functions.

Installation

The lamp is supplied with a 1 metre cable loom for easy connection to vehicle wiring. A version with a 6-pin bayonet connector is also available for plug-and-play installation.

Technical Documents

No technical documents are currently supplied for this product.
