FT-230PMLEDDIBAJONET5PIN

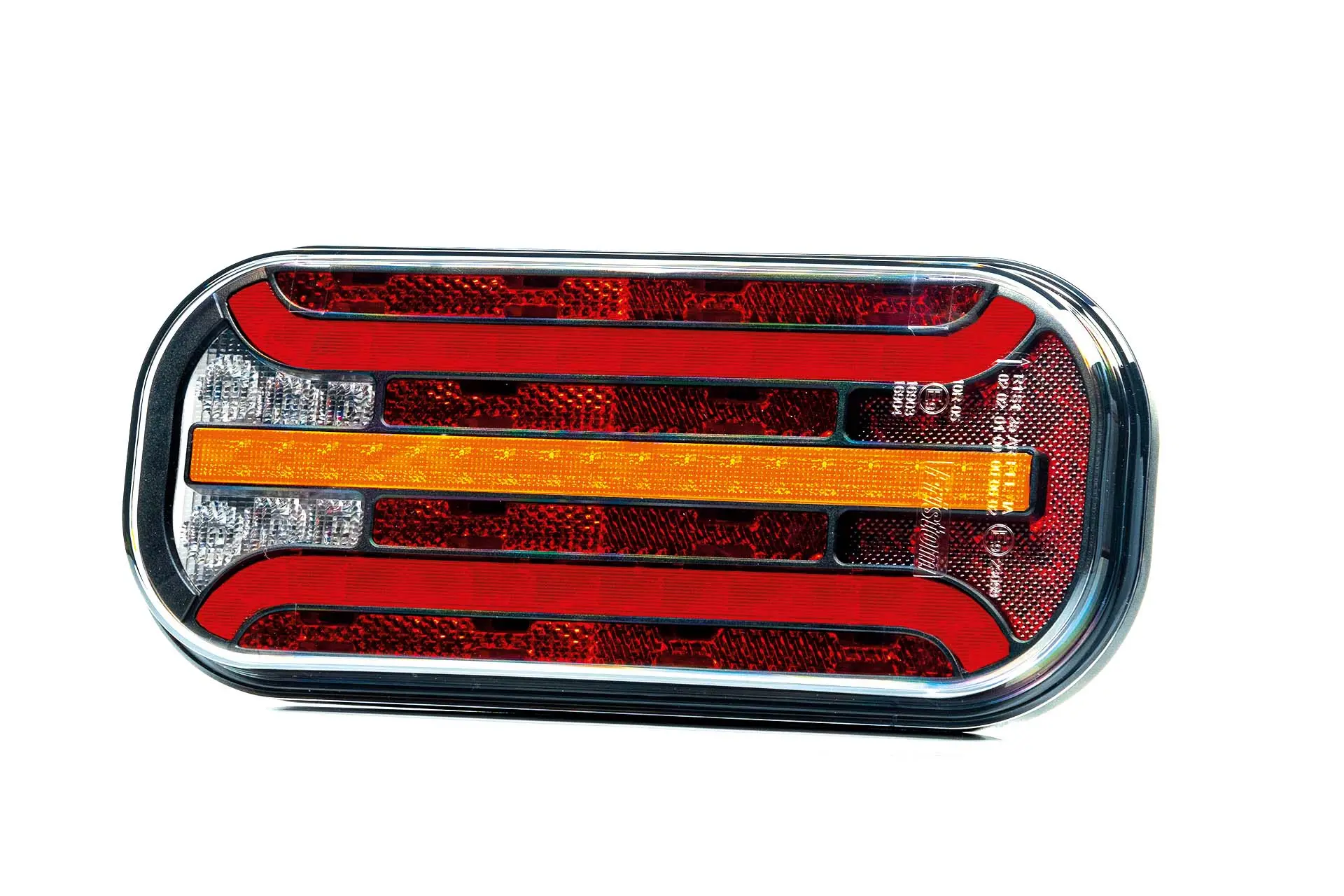

FT-230 PM LED DI BAJONET 5PIN Universal LED Rear Lamp

The FT-230 PM LED DI BAJONET 5PIN is a versatile six-functional rear lamp designed for automotive applications operating within a 12 to 30 volt range. Featuring a dynamic indicator and a 5 PIN bayonet connector, this lamp integrates multiple lighting functions into a single, compact unit.

Key Features

• Voltage range: 12-30V
• Six lighting functions: STOP, POSITION, INDICATOR, FOG, NUMBER PLATE LIGHT, and REFLECTOR
• Dynamic indicator for enhanced signalling
• 5 PIN bayonet connector for secure and reliable installation
• Low power consumption with specific current and power ratings per function
• European homologations: E9, EMC, R10 ensuring compliance with industry standards
• Shock-resistant polycarbonate lampshade with reverse polarity protection

Technical Specifications

• Current consumption (peak values):
  • Rear running light + number plate light: 0.12A (12V), 0.12A (24V)
  • STOP light: 0.12A (12V), 0.12A (24V)
  • Indicator: 0.35A (12V), 0.35A (24V)
  • Reversing light: 0.22A (12V), 0.22A (24V)
  • Fog light: 0.16A (12V), 0.16A (24V)
• Rated power:
  • Rear running light + number plate light: 1.5W (12V), 3W (24V)
  • STOP light: 1.5W (12V), 3W (24V)
  • Indicator: 4.5W (12V), 9W (24V)
  • Reversing light: 2.8W (12V), 5.5W (24V)
  • Fog light: 2W (12V), 4W (24V)

Applications

Ideal for use on trailers, commercial vehicles, and other automotive applications requiring multiple rear lighting functions combined into a single lamp unit. The dynamic indicator enhances visibility and safety on the road.

Certifications

• E9 European homologation
• ElectroMagnetic Compatibility (EMC) homologation
• R10 shock-resistance certification

For further details or to discuss your specific requirements, please contact us.
