FT-230PMLEDDI

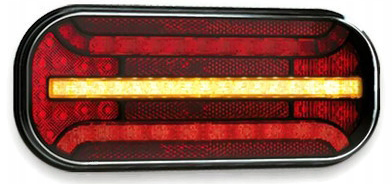

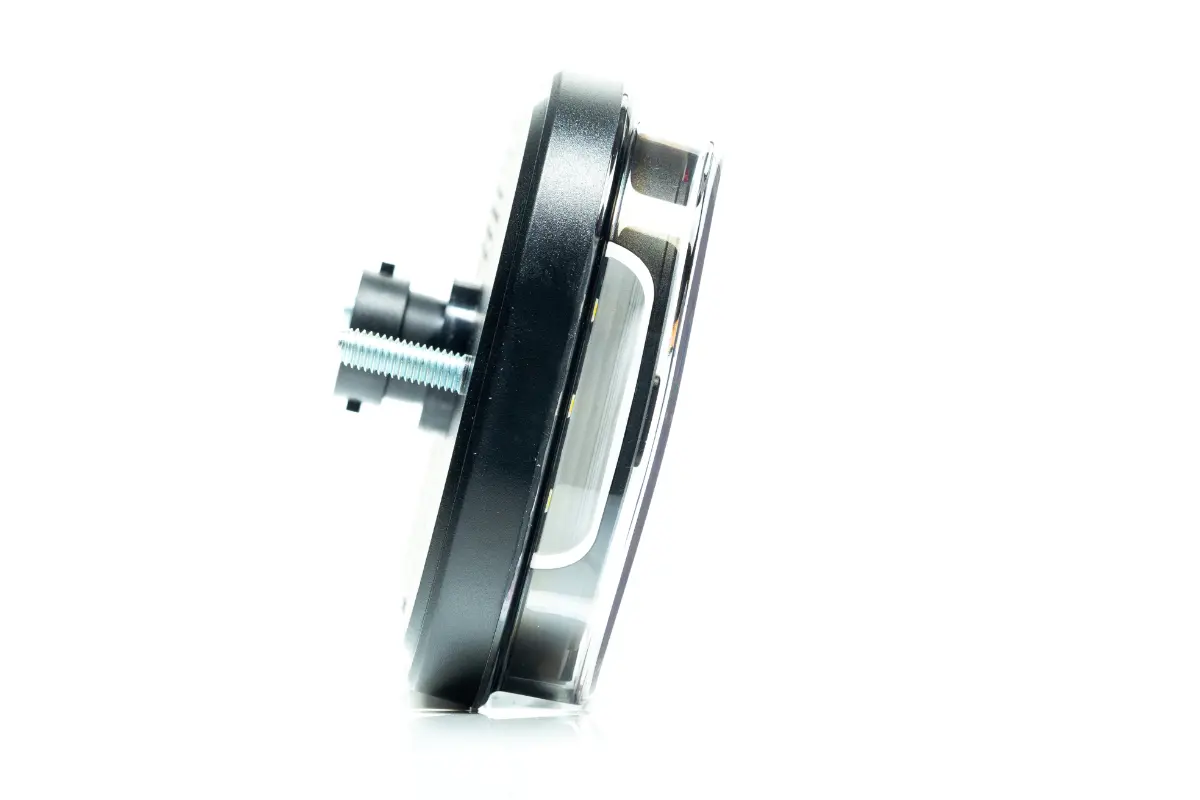

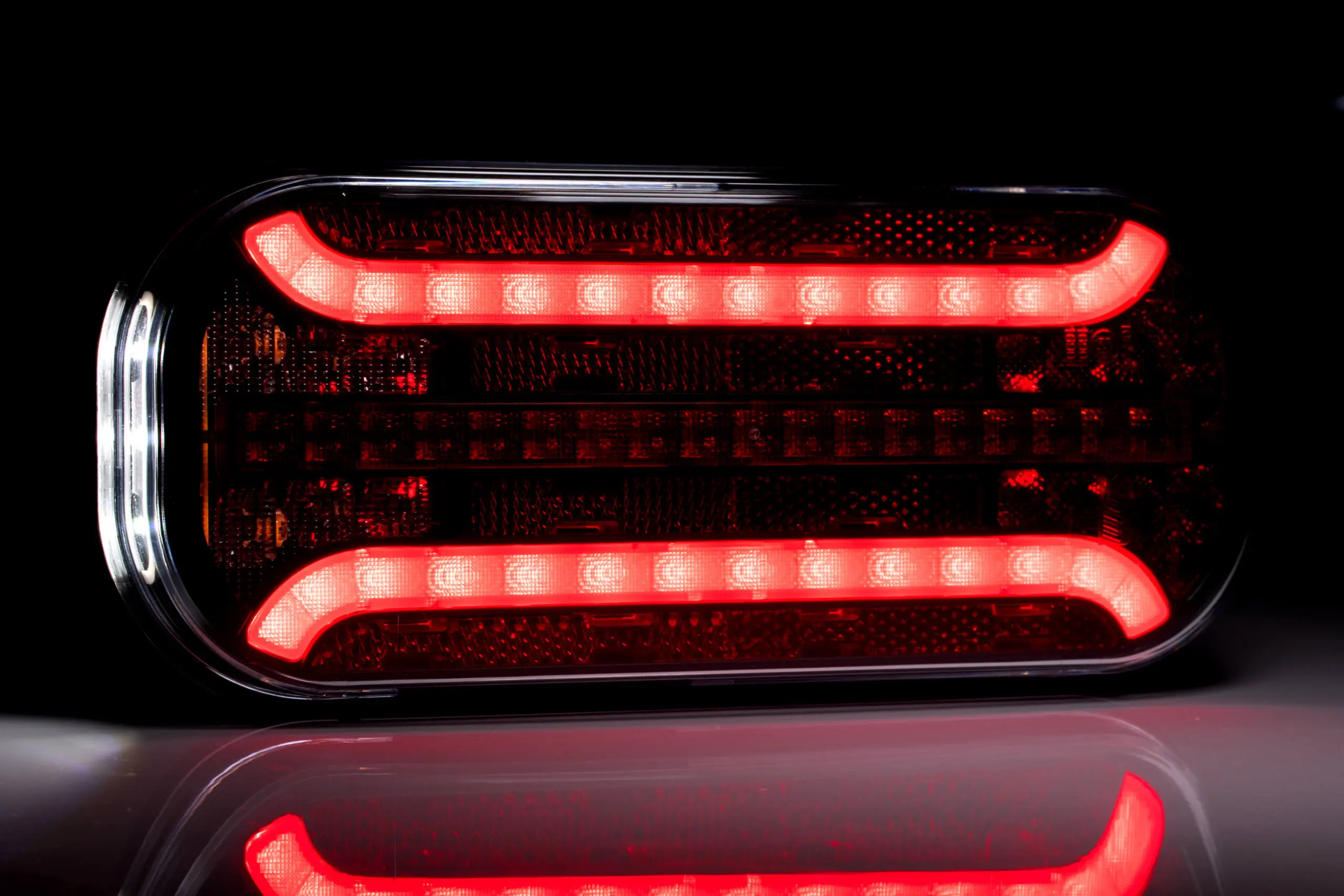

Fristom FT-230 PM LED DI Universal Rear Lamp

The Fristom FT-230 PM LED DI is a versatile six-function rear lamp designed for 12 to 30V vehicle electrical systems. It features a dynamic indicator and integrates multiple lighting functions to enhance vehicle visibility and safety.

Key Features

• Six lighting functions: STOP, position, indicator, fog, number plate light, and reflector
• Dynamic indicator for improved signalling
• Universal compatibility with 12-30V systems
• Low power consumption with detailed current and power ratings for each function
• Robust design with PC lampshade and reverse polarity protection
• European homologations: E9, EMC, and R10 ensuring compliance and electromagnetic compatibility

Technical Specifications

• Voltage range: 12-30V
• Functions and current consumption at 12V / 24V:
  • Rear running light + number plate light: 0.12A / 0.12A (1.5W / 3W)
  • STOP light: 0.12A / 0.12A (1.5W / 3W)
  • Indicator: 0.35A / 0.35A (4.5W / 9W)
  • Reversing light: Not included in this model
  • Fog light: 0.16A / 0.16A (2W / 4W)
• Dynamic indicator technology for enhanced signalling visibility
• Shock resistant with PC lampshade material
• Reverse polarity protection system to prevent damage during installation

Applications

Ideal for use on trailers, trucks, agricultural and construction machinery requiring a multifunctional rear lamp with fog light capability and dynamic indicators.

Approvals

• European E9 homologation
• Electromagnetic Compatibility (EMC) homologation
• R10 shock resistance approval

Installation

Supplied with a 1 metre wire loom for straightforward installation on compatible vehicles.

Technical Documents

No technical documents are currently available for this product.

For more information, visit the Fristom official product page.
