FT-214LED

Fristom FT-214 LED 3-Functional Lamp

The FT-214 LED is a versatile automotive lamp designed for universal use on vehicles operating within a 12-36V DC voltage range. This compact, round lamp combines three essential lighting functions in one unit: rear running light, reversing light, and fog light, making it ideal for enhancing vehicle visibility and safety.

Key Features

• Three integrated functions: rear running light, reversing light, and fog light
• Low power consumption for energy efficiency

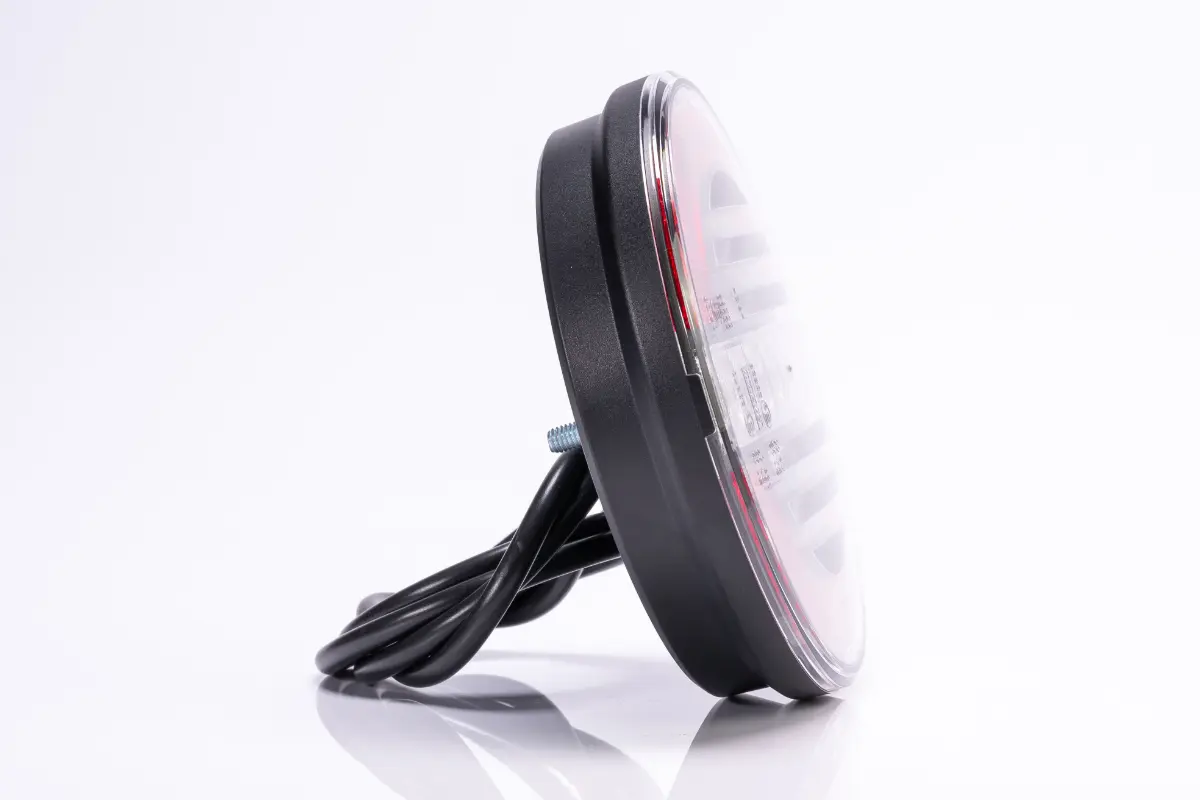

• Compact design with a lamp depth of only 35 mm
• Durable polycarbonate (PC) lampshade resistant to shocks and mechanical damage
• Protection against reverse polarity to prevent electrical damage
• Universal compatibility with 12-36V DC vehicle electrical systems

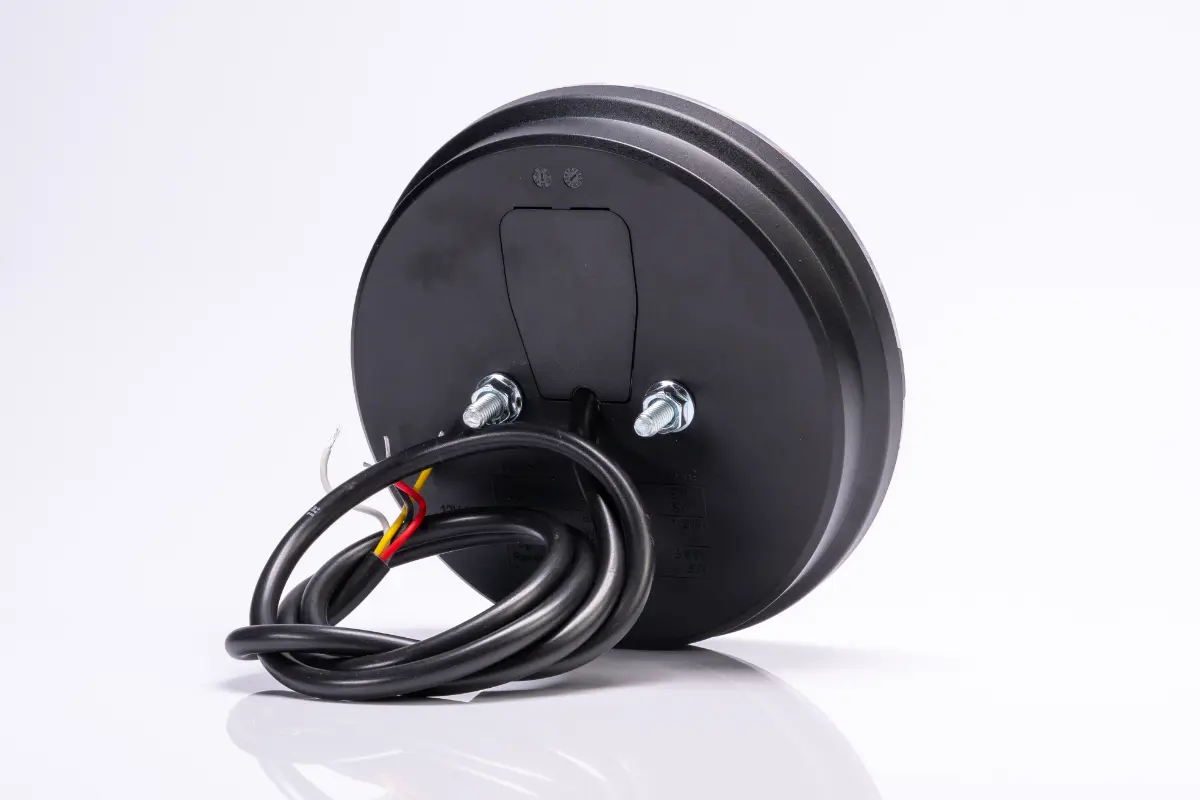

• 1.0 metre wiring loom for flexible installation
• European E9 homologation and Electromagnetic Compatibility (EMC) certification
• Operating temperature range from –40°C to +55°C
• Fully airtight and weather-resistant construction

Technical Specifications

• Voltage: 12-36 V DC
• Functions and Power Consumption:
  • Rear running light: 0.05 A (12V/24V), 0.6 W / 1.2 W
  • Reversing light: 0.2 A (12V), 0.12 A (24V), 2.4 W / 3 W
  • Fog light: 0.25 A (12V), 0.15 A (24V), 3 W / 3.6 W
• Lamp depth: 35 mm
• Wiring loom length: 1.0 metre
• Operating temperature: –40°C to +55°C

Innovative Position Light Design

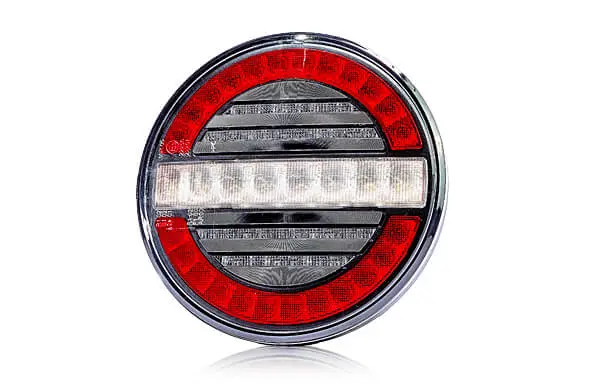

The rear running light function features an innovative position light that mimics microcrystals, creating a dynamic and vivid light effect when viewed from different angles, enhancing vehicle visibility and aesthetic appeal.

Certifications

• European E9 homologation
• Electromagnetic Compatibility (EMC) certification

Applications

The FT-214 LED lamp is suitable for a wide range of vehicles requiring reliable rear lighting solutions, including commercial vehicles, trailers, and agricultural machinery.

Technical Documents

• FT-214 LED Technical Datasheet (PDF)
