FT-190LED

Fristom FT-190 LED Third Brake Light (STOP)

The FT-190 LED third brake light is designed for reliable signalling on trailers, semi-trailers, and special vehicles. Featuring a single-function LED lamp, it offers low power consumption and is certified for ElectroMagnetic Compatibility (EMC).

Key Features

• Single-function third brake light (STOP) using LED technology
• Low power consumption: 1W at 12V, 2W at 24V
• Universal supply voltage range: 12-36V DC
• EMC certified for electromagnetic compatibility
• Shock-resistant polycarbonate lampshade

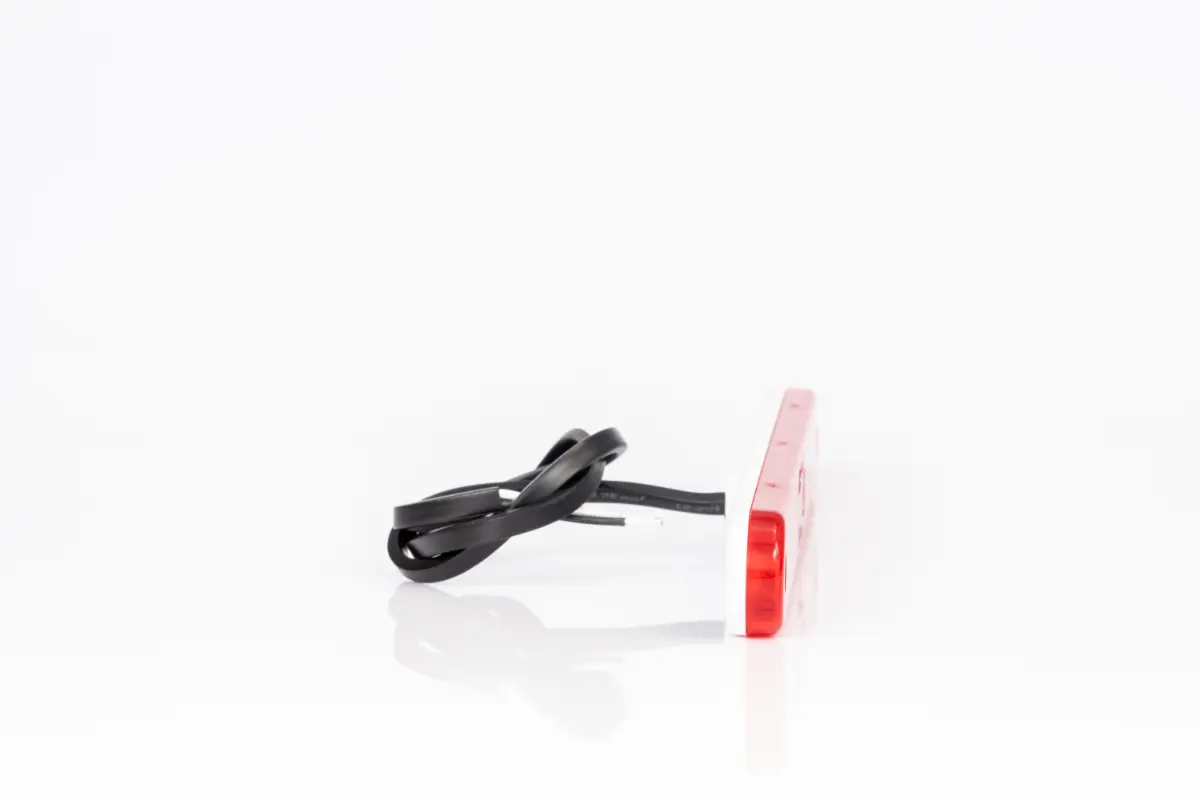

• Equipped with 2×0.75 mm² wires, available in 0.5 m or 4 m lengths
• Installation flexibility: vertical or horizontal mounting via self-adhesive tape and/or screws
• Operating temperature range: -40°C to +55°C
• Fully airtight and weather-resistant design

Applications

Ideal for use on trailers, semi-trailers, special vehicles, and other automotive applications requiring a reliable third brake light.

Technical Documents

• FT-190 LED Technical Leaflet (PDF)
