FT-124LED

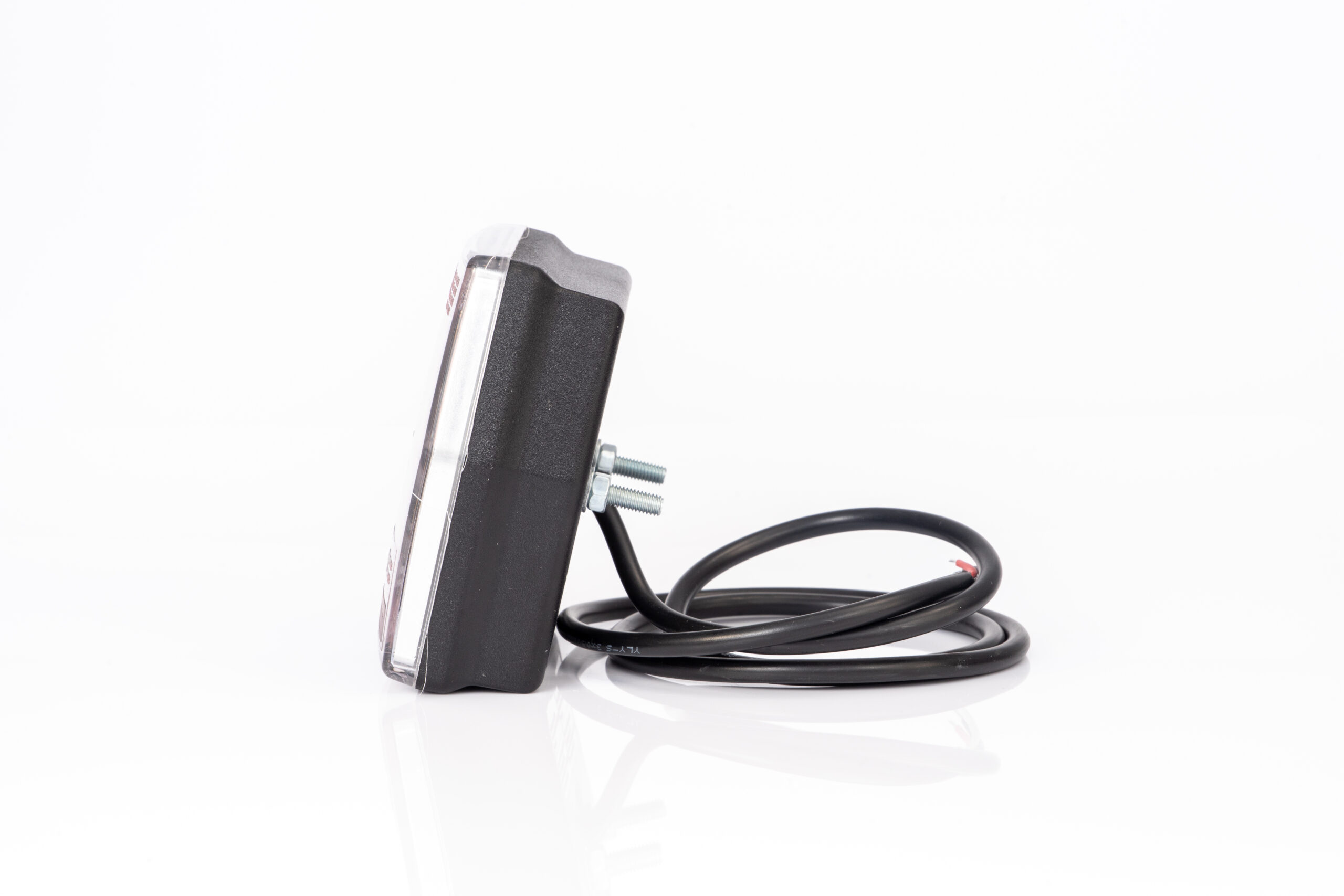

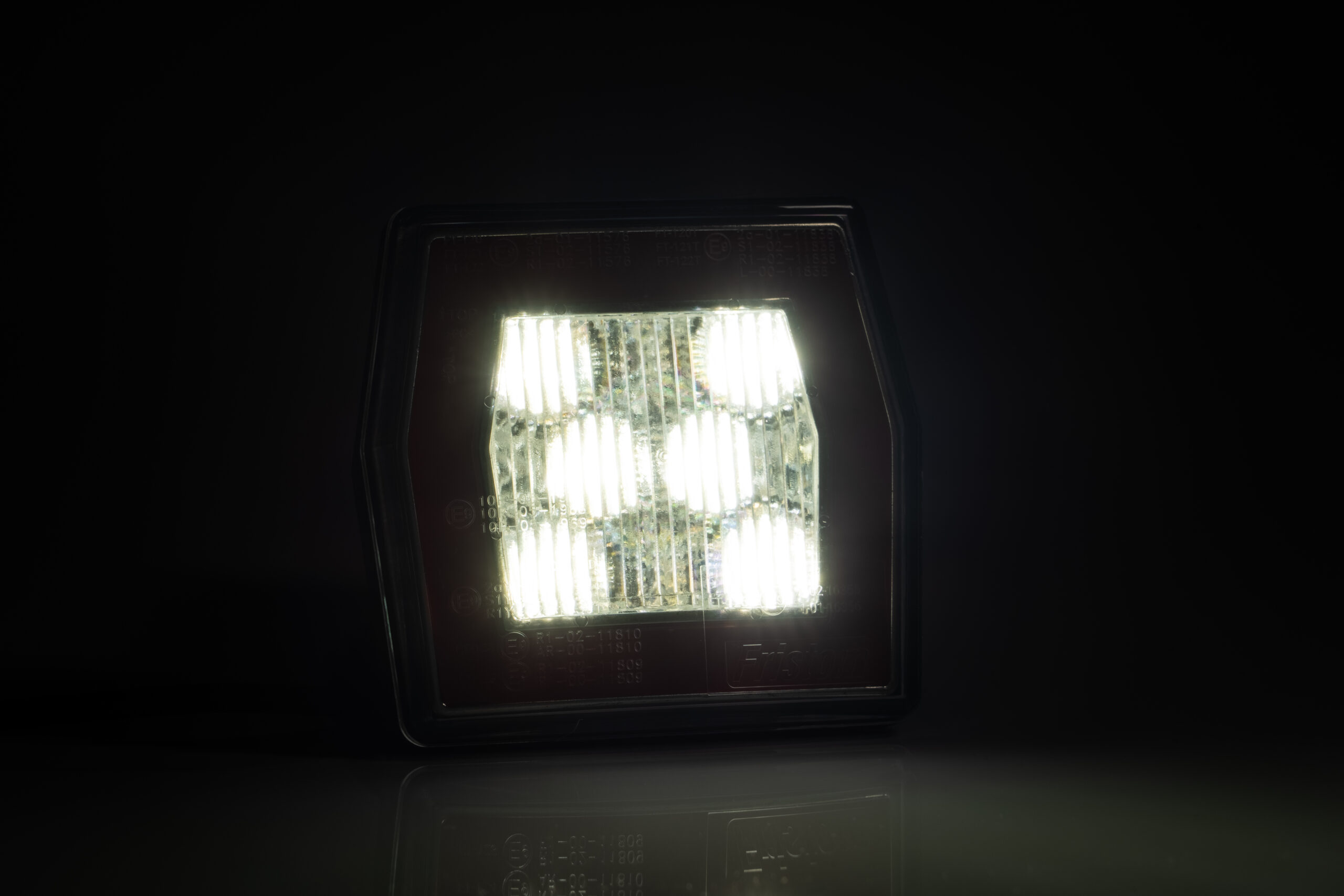

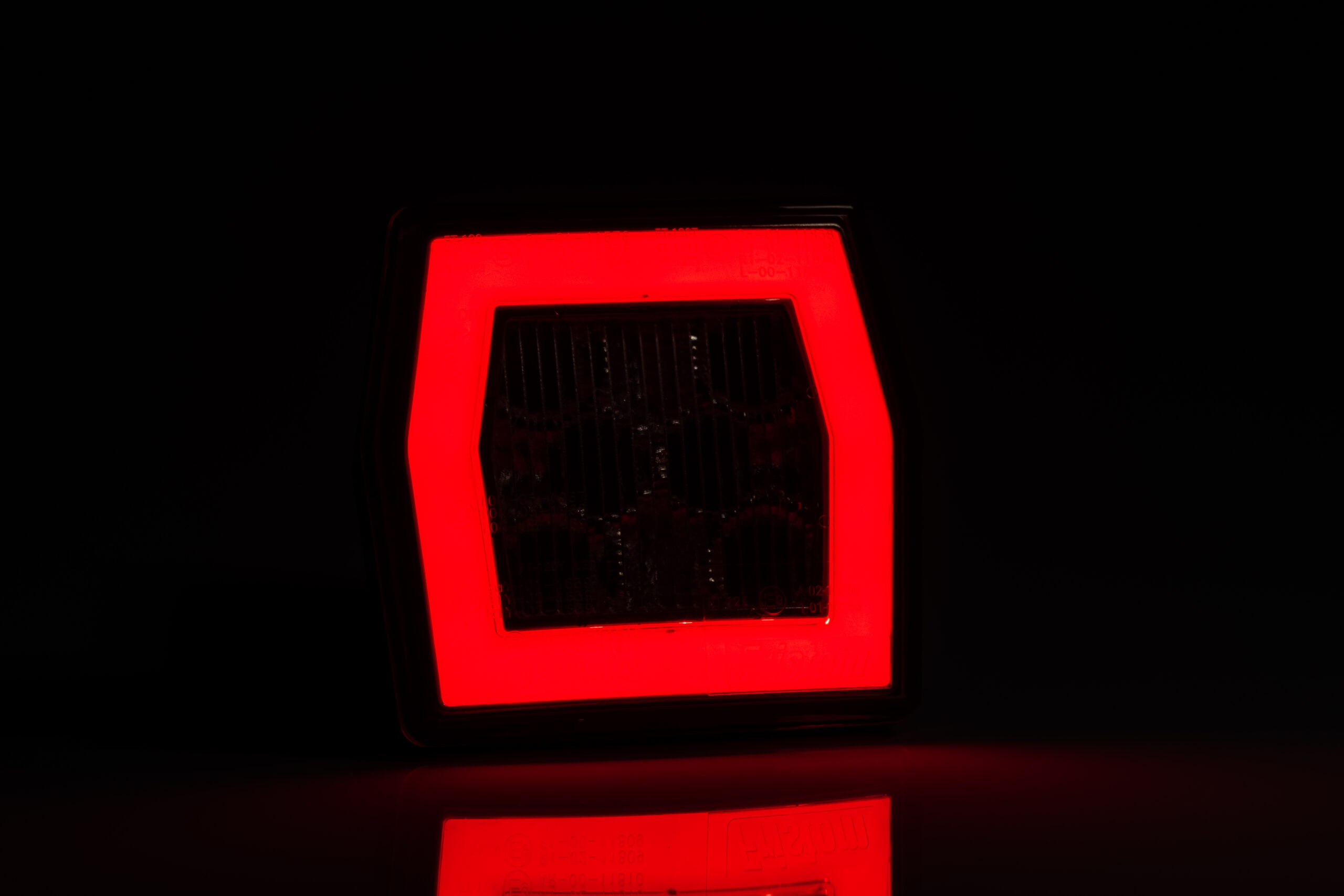

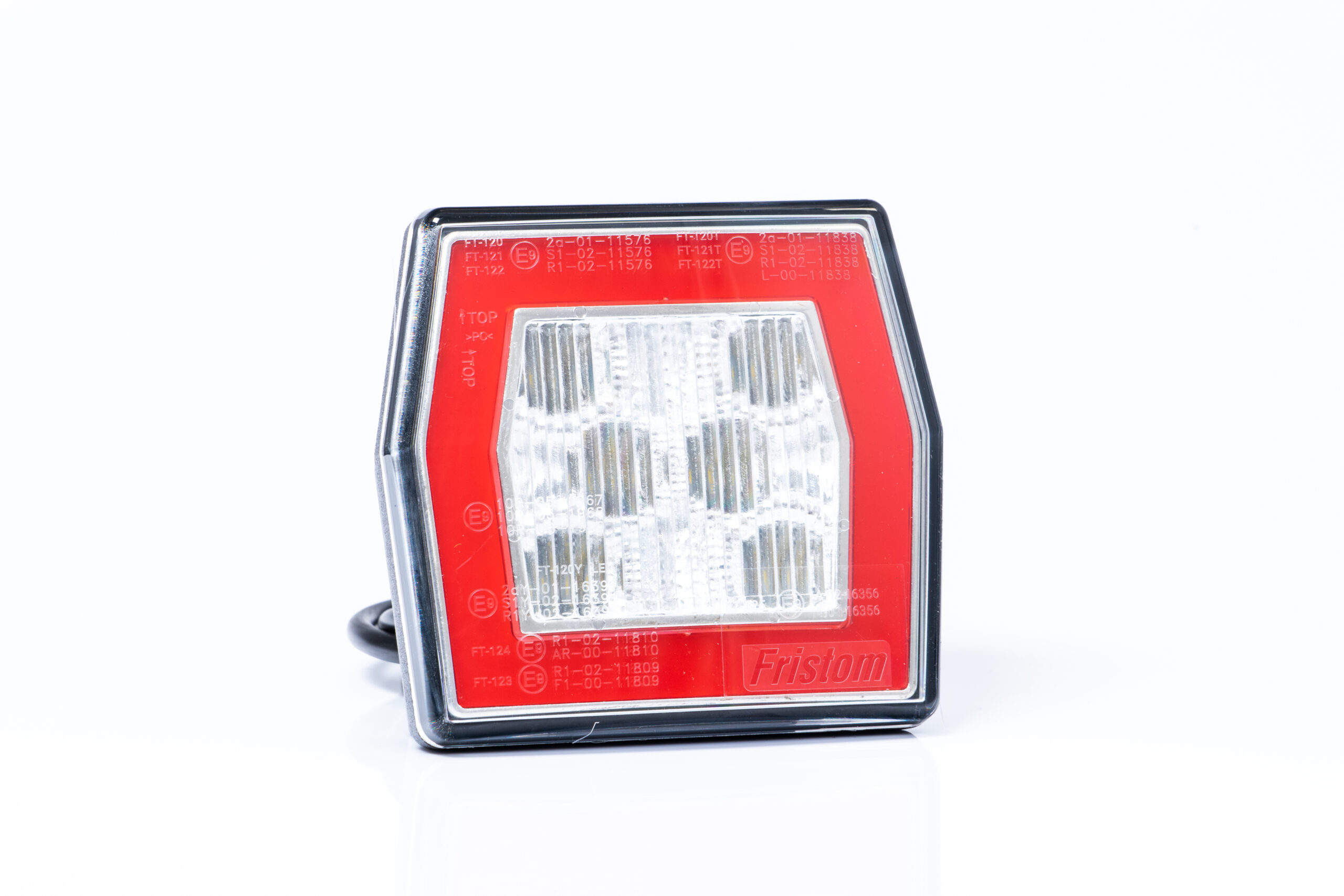

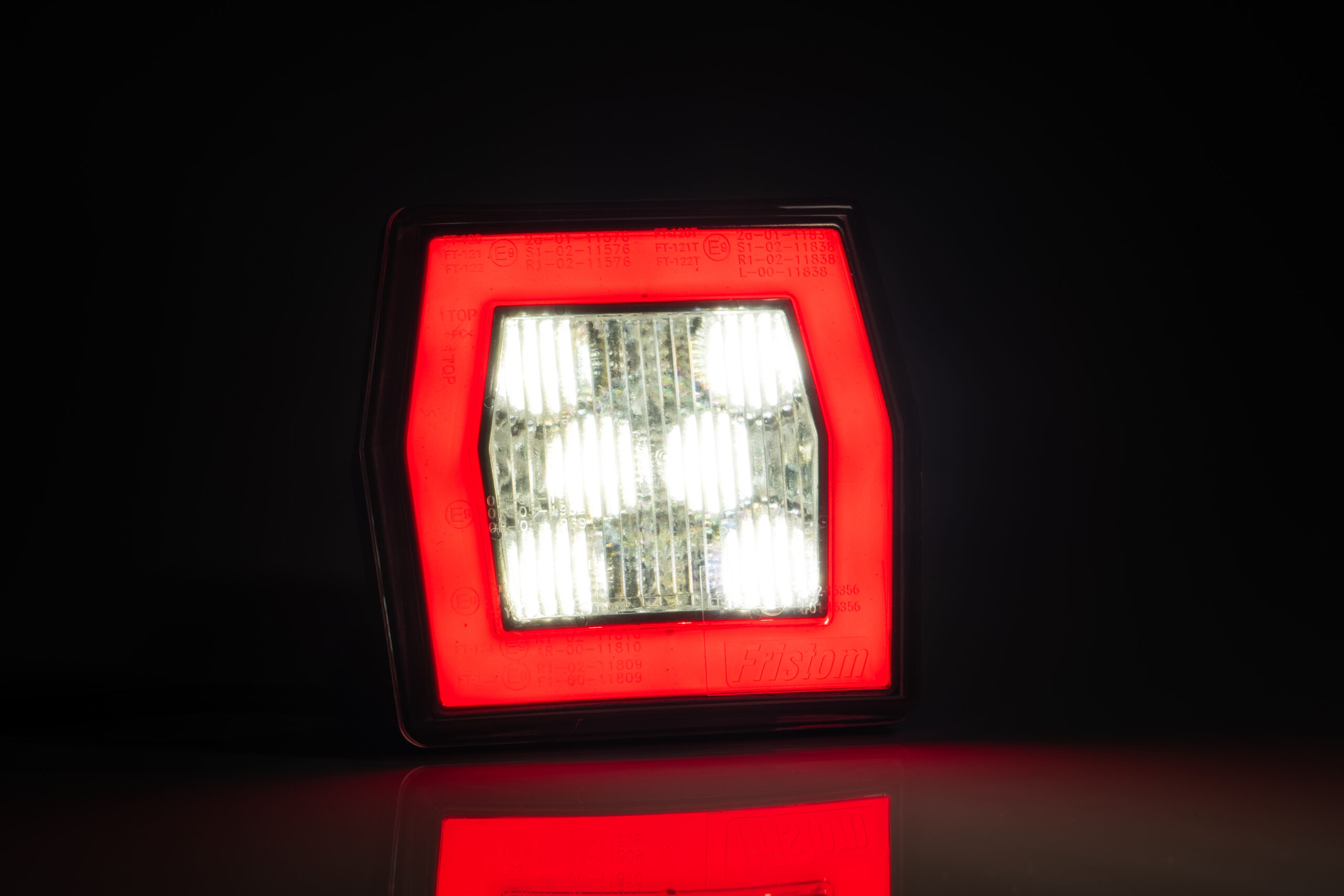

Fristom FT-124 LED Rear Reversing Lamp

The FT-124 LED is a universal, round rear reversing lamp designed for automotive applications requiring reliable illumination with low power consumption. It operates on both 12V and 24V electrical systems, making it suitable for a wide range of vehicles.

Key Features

• Two functional modes: rear running light and reversing light
• Low power consumption with rated power of 0.75W (12V) and 1.5W (24V) for rear running light, and 2.5W for reversing light
• Current consumption peaks at 0.06A (12V and 24V) for rear running light and 0.2A (12V) / 0.1A (24V) for reversing light
• Equipped with a 1-metre wiring loom for easy installation
• Shock-resistant polycarbonate lampshade
• Reverse polarity protection system to prevent damage during installation
• European E9 homologation and Electromagnetic Compatibility (EMC) certification ensuring compliance with automotive standards

Technical Specifications

• Voltage: 12V / 24V
• Functions: Rear running light and reversing light
• Rated power: Rear running light – 0.75W (12V), 1.5W (24V); Reversing light – 2.5W
• Current consumption (peak): Rear running light – 0.06A; Reversing light – 0.2A (12V), 0.1A (24V)
• Housing: Shock-resistant polycarbonate
• Wiring: 1 metre wiring loom included
• Homologation: E9, EMC

Installation and Usage

The FT-124 LED lamp is ideal for use as a rear reversing lamp on commercial and passenger vehicles. Its universal design and dual voltage compatibility simplify fitting across various vehicle types. The included wiring loom facilitates straightforward connection, while the reverse polarity protection safeguards the lamp during installation.

Technical Documents

No technical documents are currently available for this product.
