FT-112LED

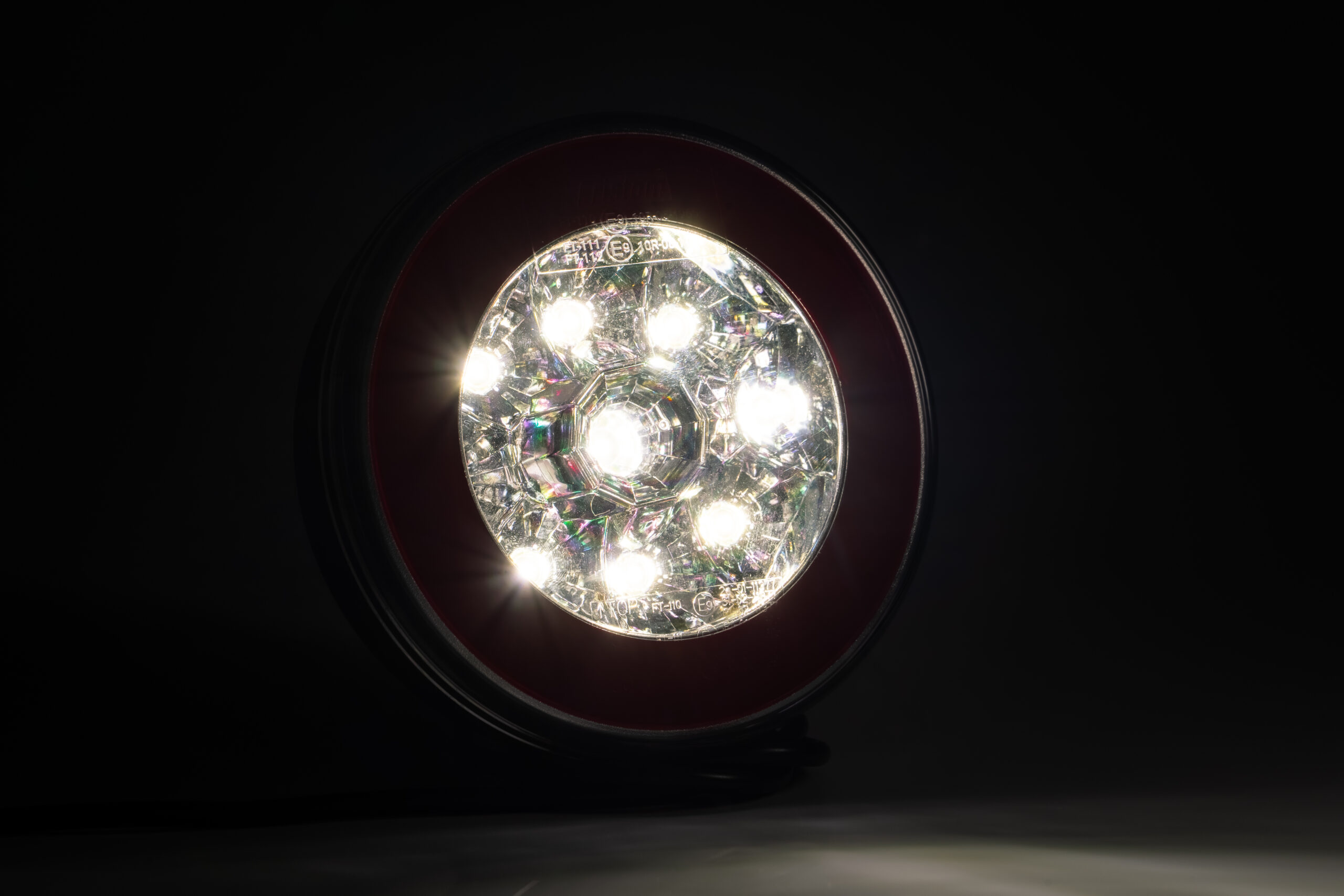

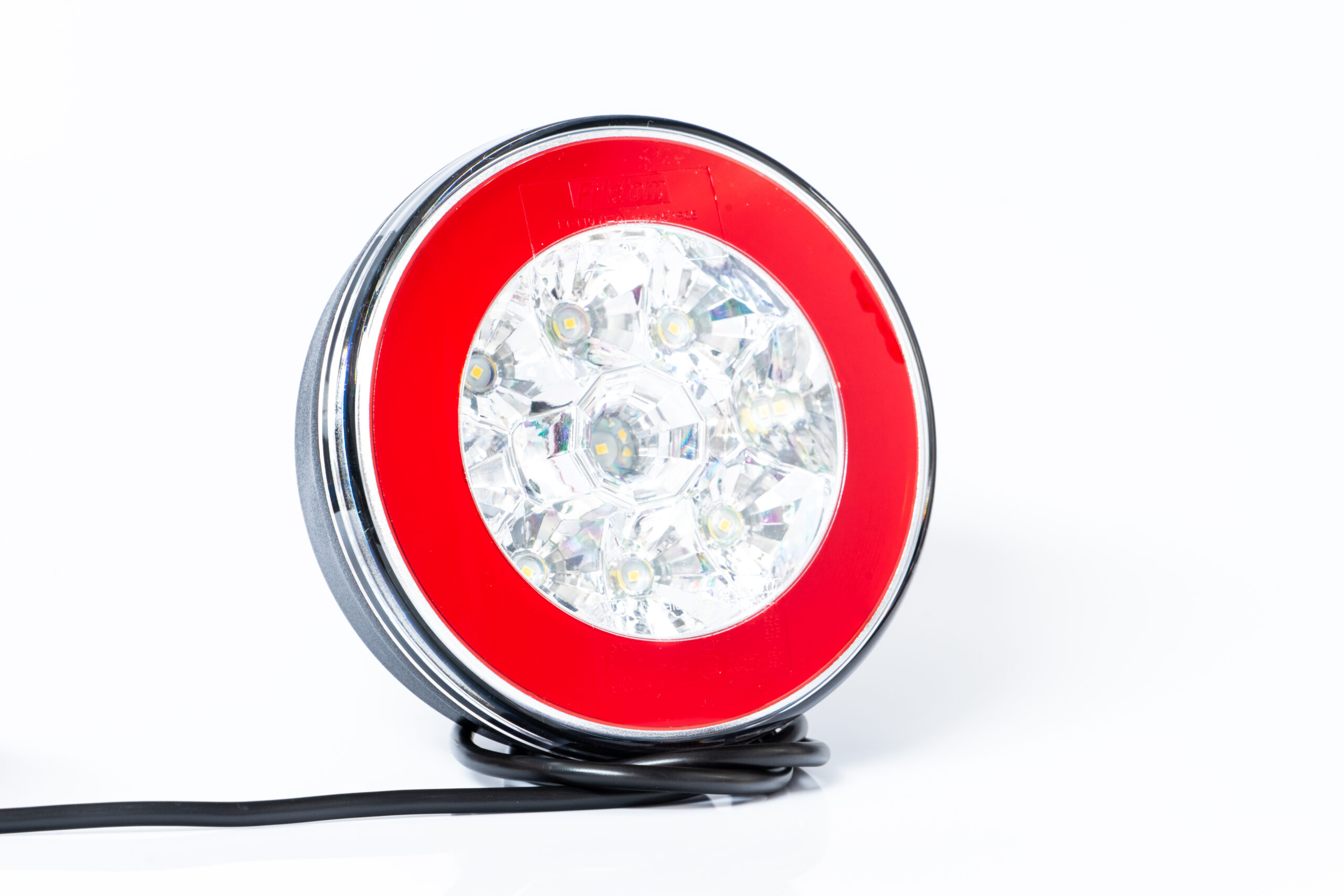

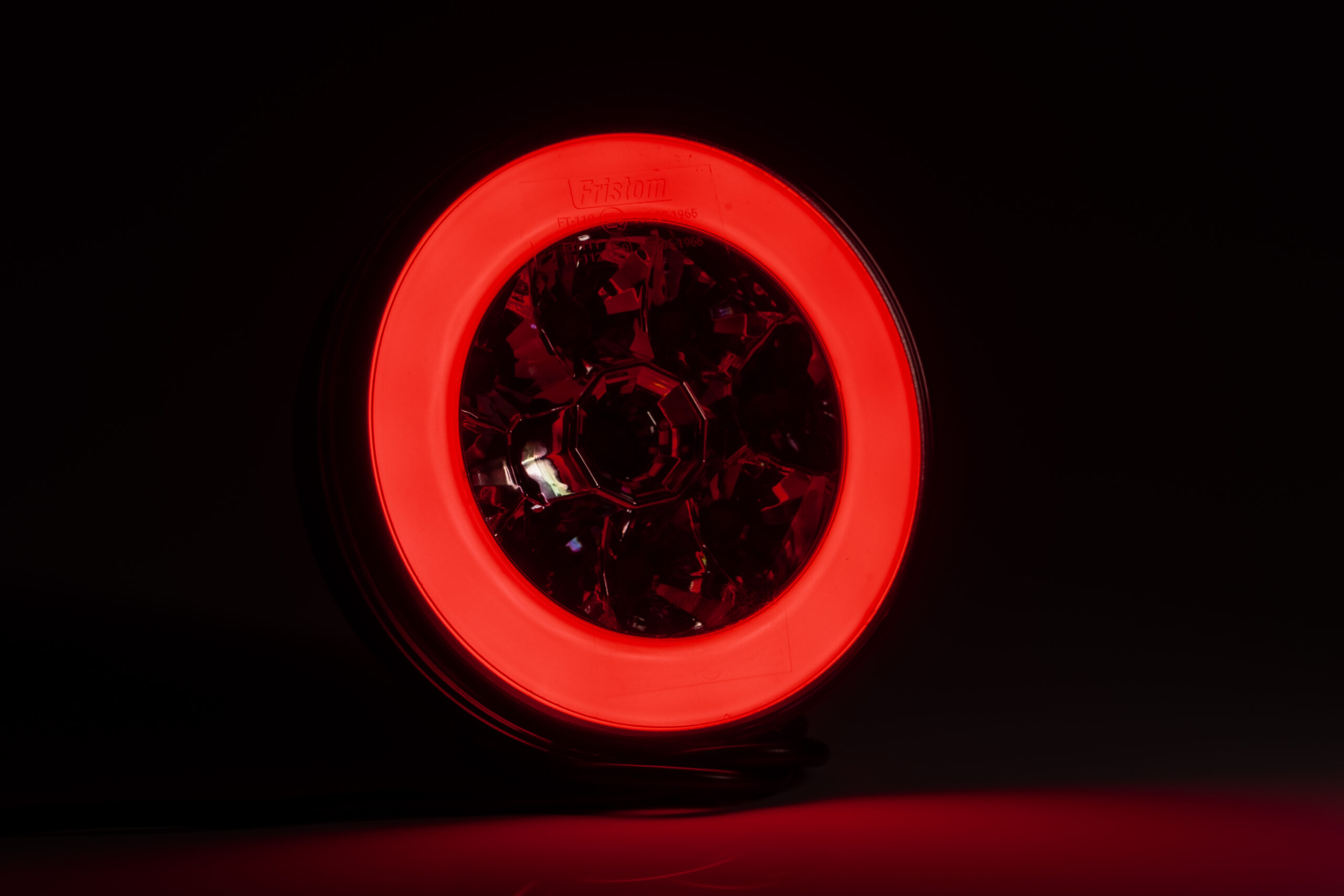

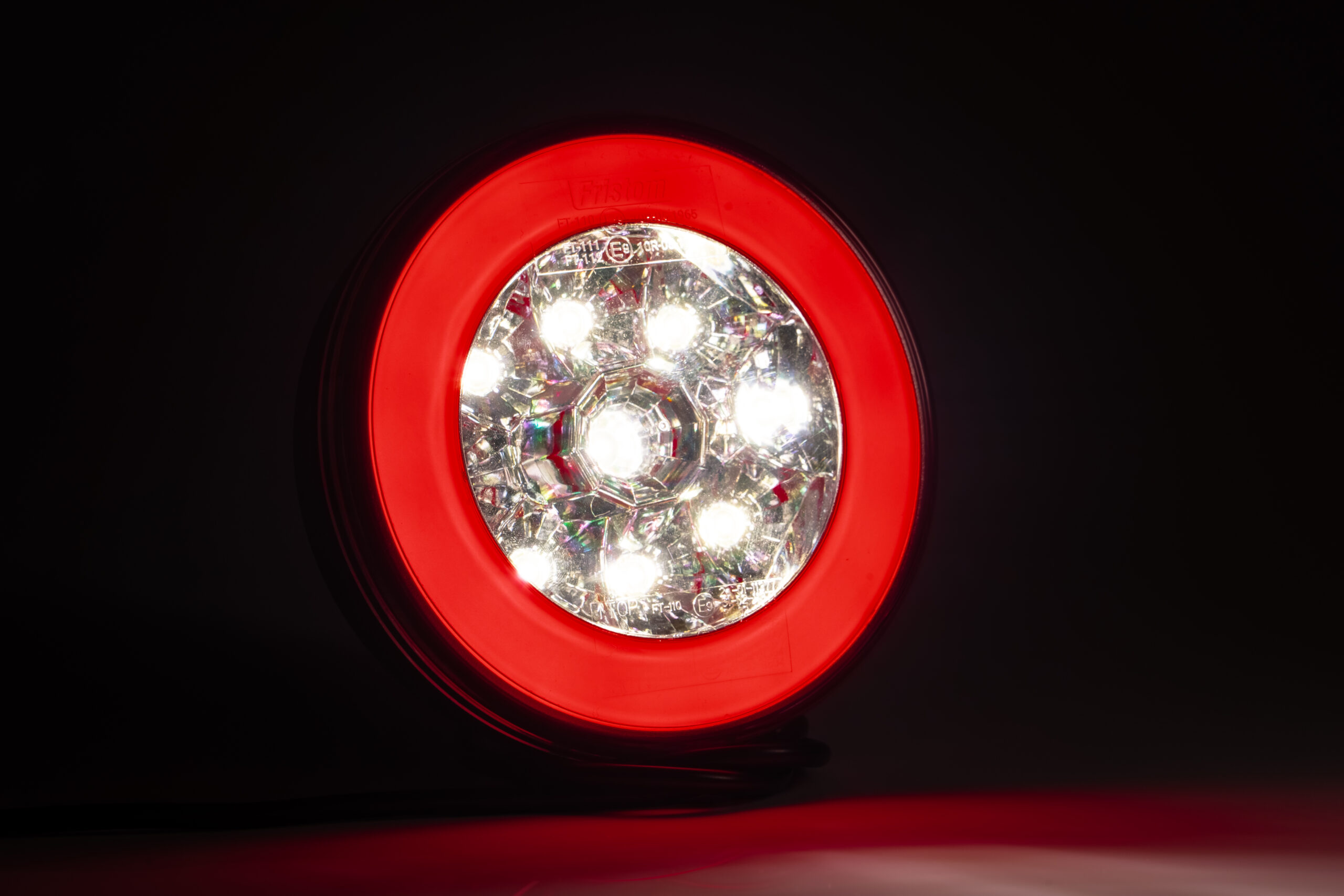

Fristom FT-112 LED Universal LED Reversing Lamp

The FT-112 LED is a versatile, round reversing lamp designed for automotive applications requiring reliable illumination with low power consumption. It operates on a wide voltage range from 12 to 30 volts, making it suitable for various vehicle types.

Key Features

• Two functional modes: position light and reversing light
• Low power consumption for energy efficiency
• Integrated 1.0 metre wiring loom for easy installation
• Robust polycarbonate lampshade ensuring shock resistance
• Reverse polarity protection system to prevent electrical damage
• Universal fit with round design

Technical Specifications

• Voltage: 12-30 V
• Rated power consumption:
  • Position light: 1.2 W (12 V), 2.4 W (24 V)
  • Reversing light: 2.5 W (12 V), 5 W (24 V)
• Current consumption (peak):
  • Position light: 0.1 A (12 V and 24 V)
  • Reversing light: 0.2 A (12 V), 0.1 A (24 V)
• Homologations: E9, ElectroMagnetic Compatibility (EMC), ADR

Applications

This lamp is ideal for use as a reversing lamp with integrated position light on commercial vehicles, agricultural machinery, and trailers requiring compliance with European standards.

Installation

The FT-112 LED comes with a 1.0 metre wiring loom for straightforward connection. Its reverse polarity protection safeguards the lamp during installation.

Technical Documents

No technical documents are currently available for this product.
