FT-075BLED

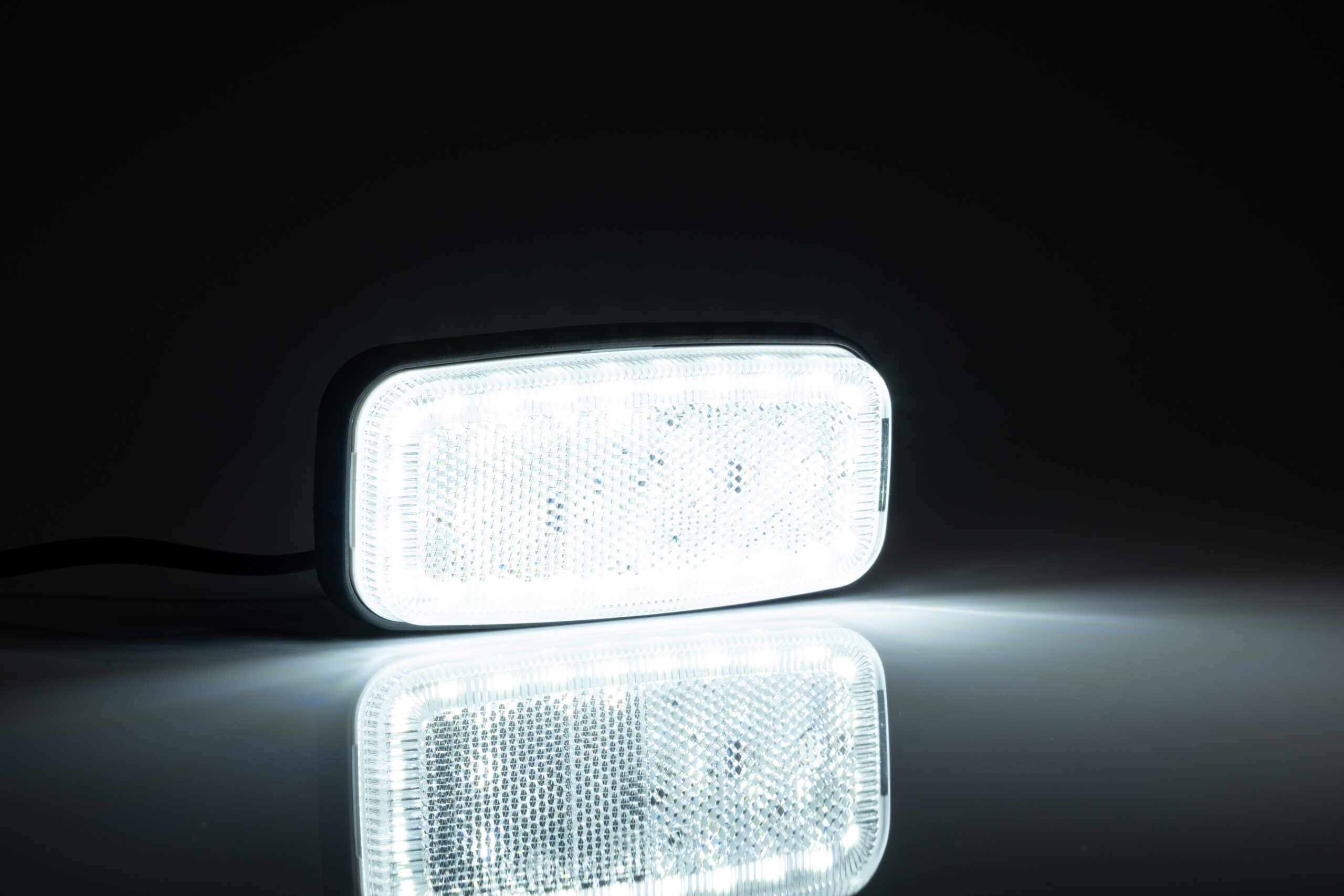

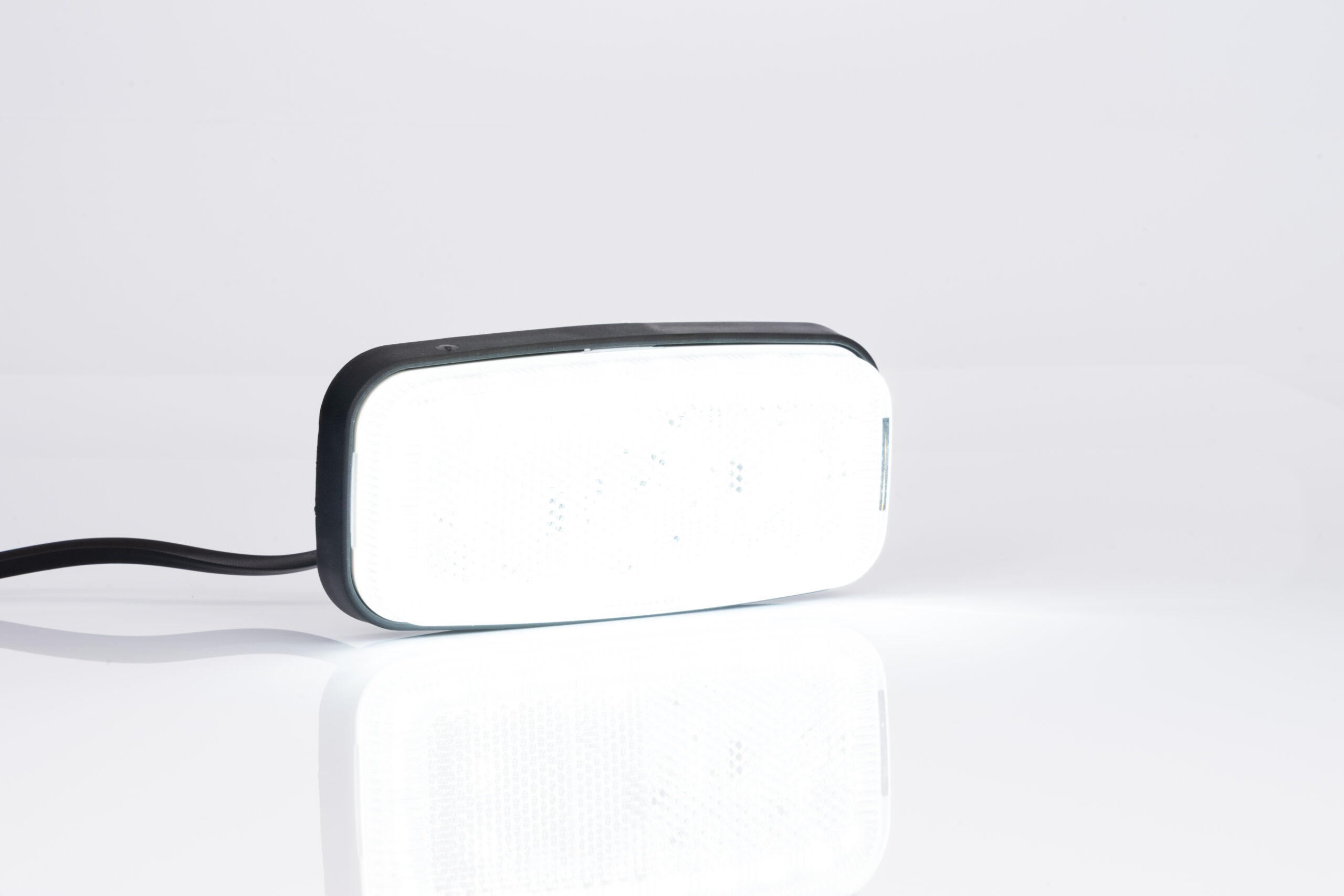

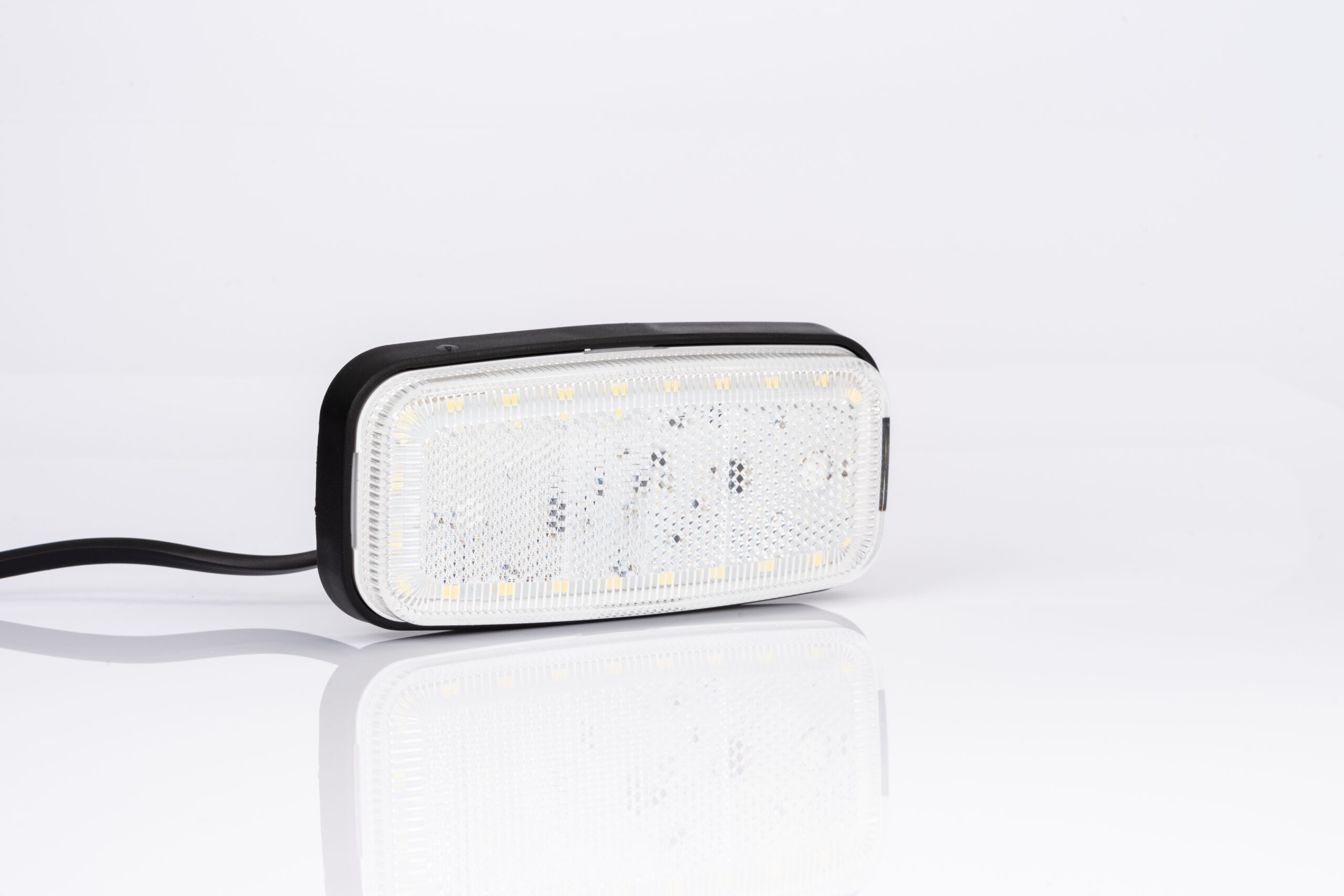

Fristom FT-075 B LED Marker Lamp

The FT-075 B LED marker lamp by Fristom is a versatile, low power consumption lighting solution suitable for a wide range of automotive applications. Designed to operate within a 12-30V voltage range, this lamp features a white LED light source combined with a reflector to ensure high light emission and visibility.

Key Features

• 2-functional LED marker lamp with low power consumption
• Operates on 12-30V DC systems
• White light colour with integrated reflector
• European E9 homologation and Electromagnetic Compatibility (EMC) certification
• Innovative “click-on” assembly for easy installation
• Optional polarity connection with concealed assembly screws
• Includes wiring loom for straightforward connection

Technical Specifications

• Rated power consumption: 1W at 12V, 2W at 24V
• Current consumption: 0.08A at 12V and 24V (position light)
• Voltage range: 12-30V DC
• Light colour: White
• Homologation: E9, EMC certified

Installation and Compatibility

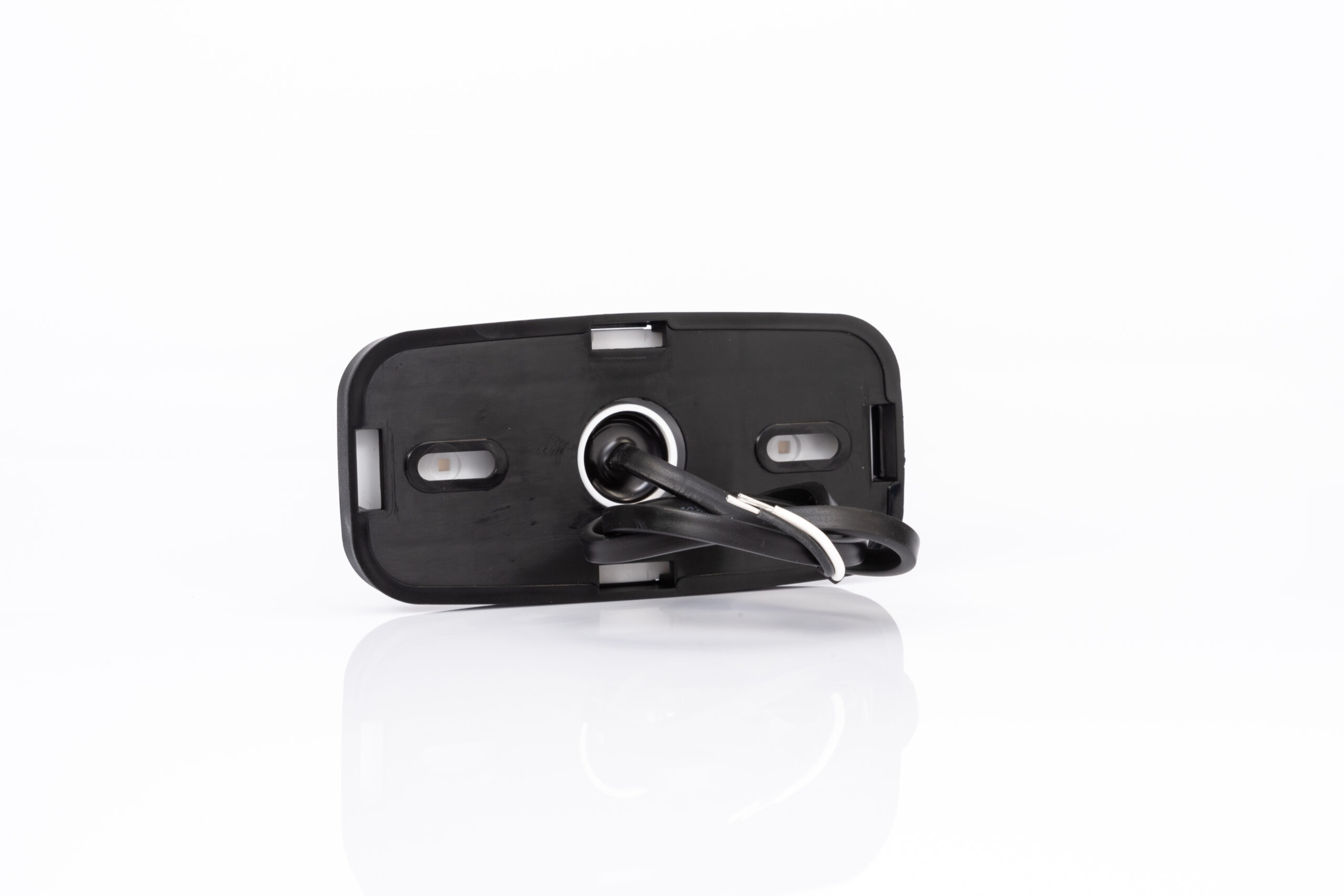

The FT-075 B LED lamp is designed with user-friendly installation in mind, featuring a “click-on” assembly system and optional concealed polarity connection screws. It is supplied with a wiring loom to facilitate easy integration into existing vehicle electrical systems.

This lamp is suitable for use as a marker lamp on various commercial vehicles, trailers, and machinery requiring compliant and efficient lighting solutions.

Additional Information

Fristom is a reputable manufacturer with a long-standing tradition in automotive lighting and cable harness production, ensuring high-quality and reliable products.

For more details, visit the official Fristom product page.
