FT-074NLED

FT-074 N LED Decorative Lamp

The FT-074 N LED is a high-quality decorative lamp from Fristom, designed for automotive and machinery applications requiring reliable and efficient lighting. This model features a blue LED light source housed in a round, recessed casing, suitable for 12 to 30 volts electrical systems.

Key Features

• Voltage range: 12-30V, compatible with a wide range of vehicles and machines.

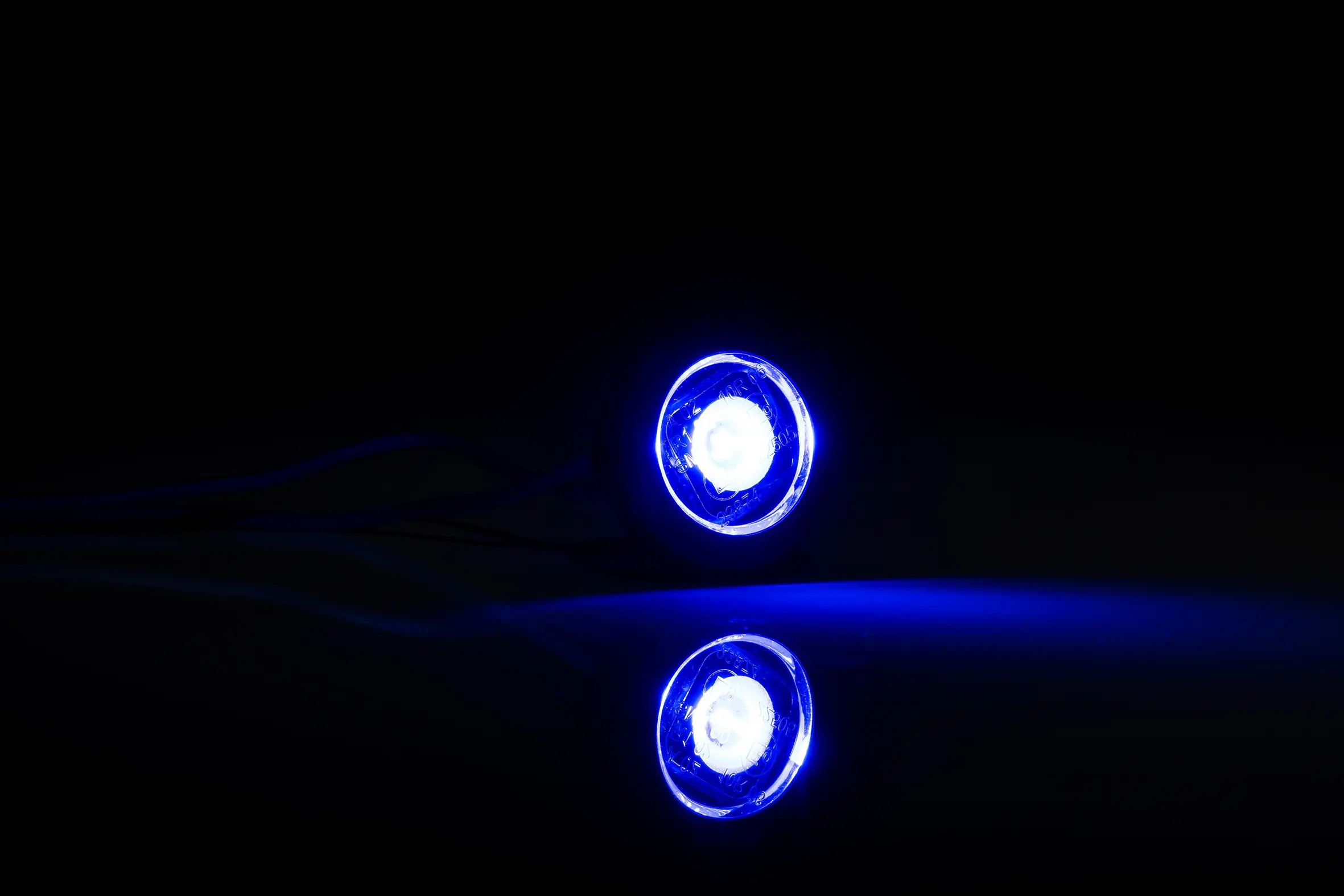

• Blue LED light for decorative applications.
• Round, recessed design for a sleek and integrated appearance.

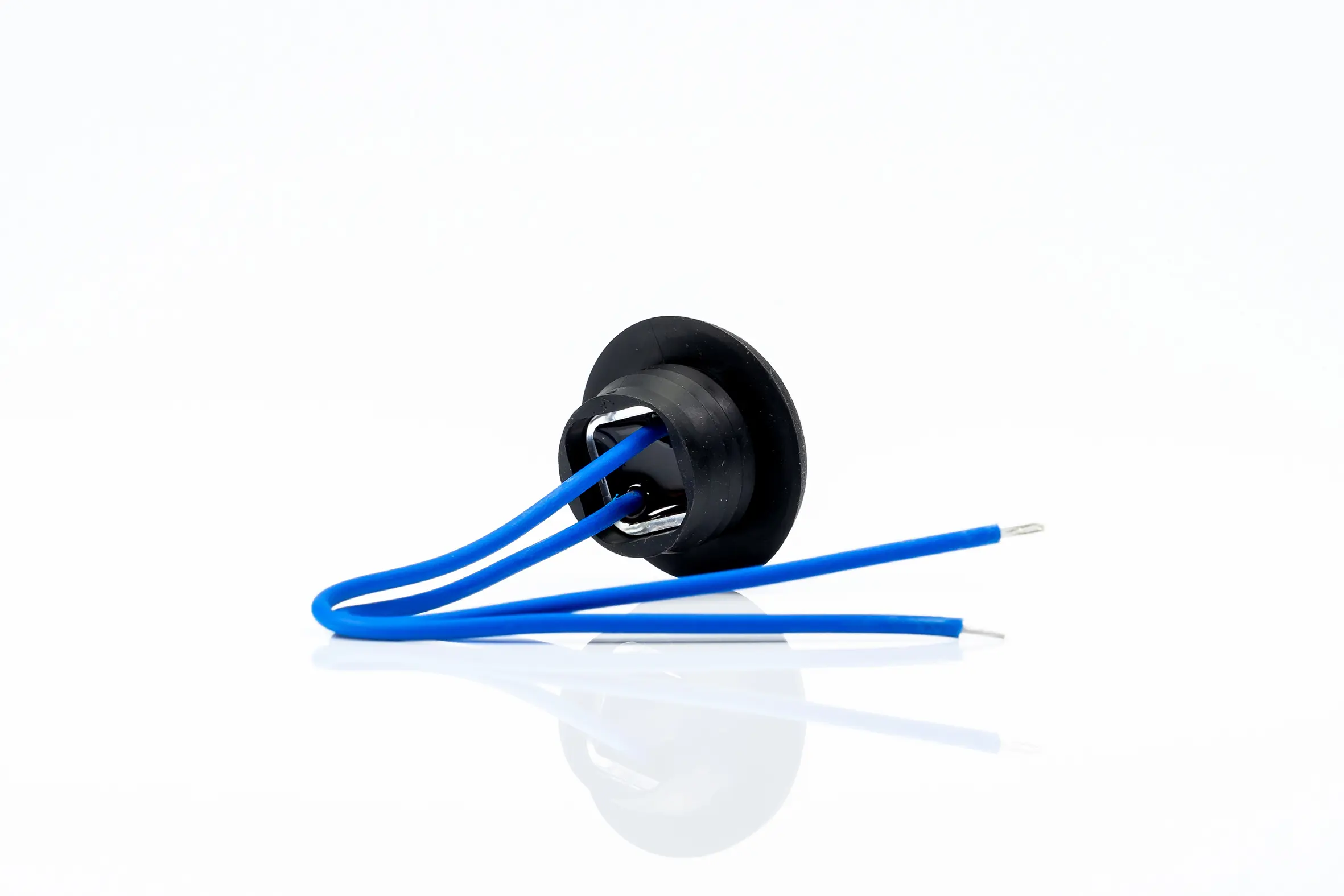

• Supplied with a 0.15 metre cable for straightforward connection.
• European E9 homologation and Electromagnetic Compatibility (EMC) certification ensure compliance with industry standards.
• Shockproof construction for durability in demanding environments.
• Polarity-independent connection simplifies installation.

Technical Specifications

• Light Type: LED Work Lamp
• Voltage: 12-30V
• Colour: Blue
• Cable Length: 0.15 metres
• Approvals: E9, EMC
• Power Consumption: Position light peak current 0.03A at 12V (0.4W), 0.03A at 24V (0.8W)

Installation and Use

The lamp is designed for recessed mounting using a contoured rubber adapter, allowing easy and secure attachment to vehicle bodywork. Its polarity-independent connection means it can be installed without concern for wiring orientation.

Ideal for use as a decorative lamp on commercial vehicles, agricultural machinery, and other specialised equipment.

Technical Documents

No technical documents are currently available for this product.
