FT-062ZLED

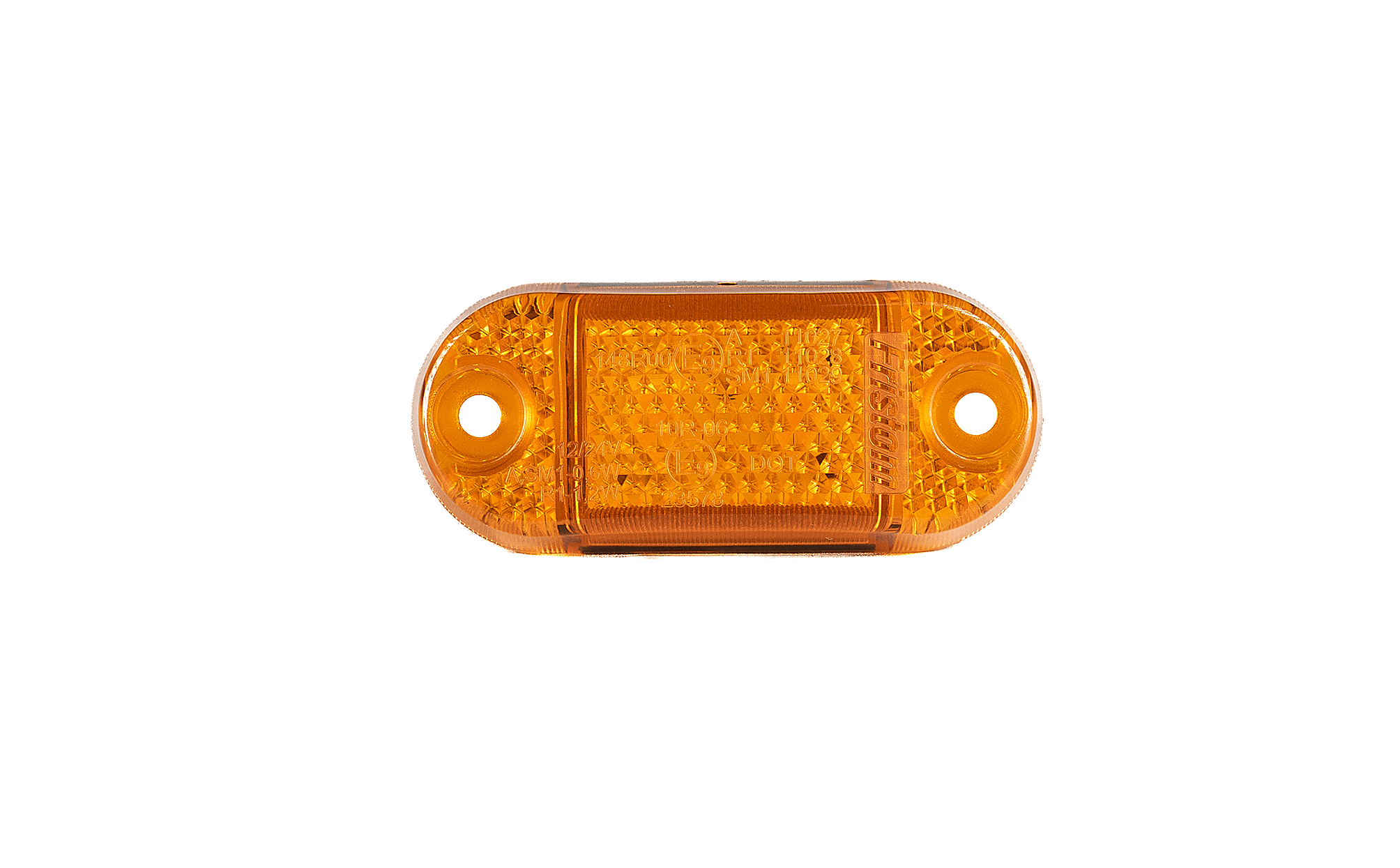

Fristom FT-062 Z LED Marker Lamp

The FT-062 Z LED marker lamp is designed for automotive applications requiring reliable and efficient lighting. It operates within a voltage range of 12 to 30 volts and features an amber LED light source, compliant with European E9 and Electromagnetic Compatibility (EMC) approvals.

Key Features

• Voltage: 12-30V DC
• Light Colour: Amber
• LED technology for low power consumption
• Supplied with 0.15 metre cable for easy installation
• European E9 and EMC homologations ensuring compliance and quality
• Shock-resistant polycarbonate lampshade

Technical Specifications

• Current consumption (peak): 0.025A at 12V, 0.025A at 24V (front/side light function)
• Rated power: 0.3W at 12V, 0.6W at 24V (front/side light function)
• Rear light function current consumption: 0.05A at 12V, 0.05A at 24V
• Rear light rated power: 0.6W at 12V, 1.2W at 24V

Applications

This amber LED marker lamp is suitable for use on a wide range of vehicles and trailers where marker lighting is required. Its robust construction and approvals make it ideal for both front and rear marker lighting applications.

Installation

The lamp comes with a 0.15 metre cable for straightforward electrical connection. The design supports both vertical and horizontal mounting orientations.
