FT-018BLED

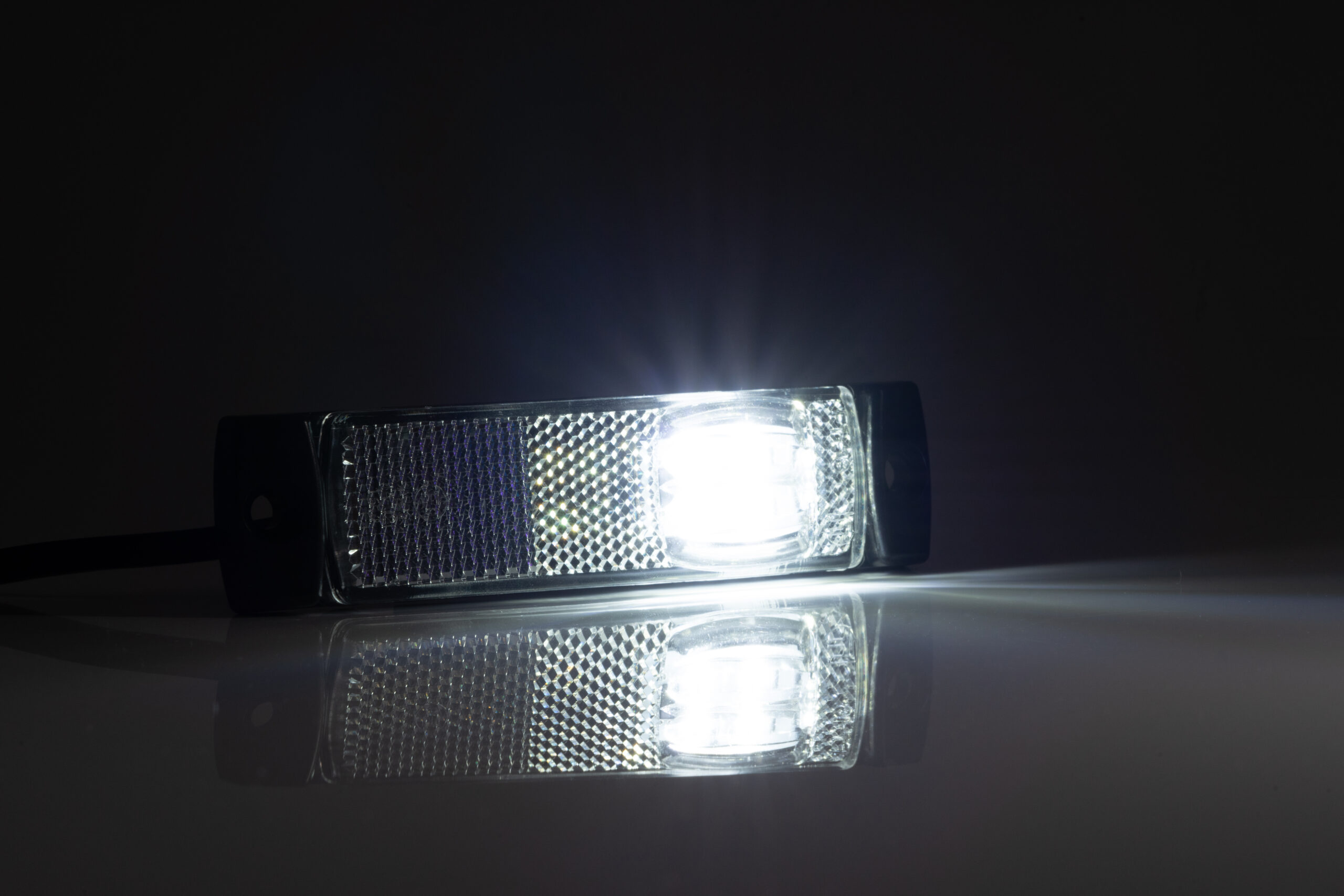

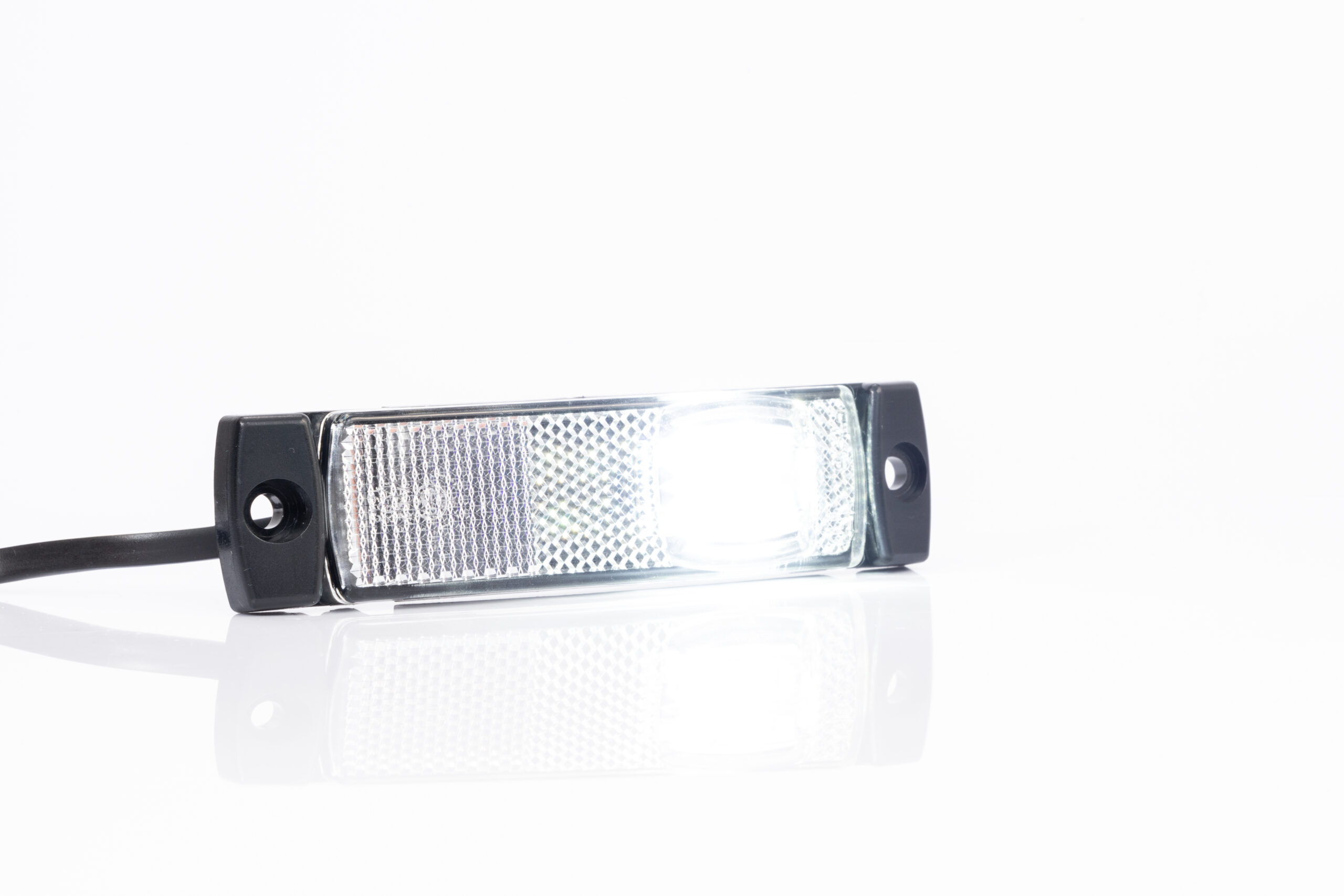

Fristom FT-018 B LED Marker Lamp

The FT-018 B LED is a white LED marker lamp designed for automotive applications, featuring a reflector for enhanced visibility. It operates efficiently within a 12-30V voltage range and is ideal for flat mounting installations.

Key Features

• White LED light with reflector for clear signalling
• Voltage range: 12-30V suitable for a variety of vehicles
• Low power consumption: 0.5W at 12V and 1W at 24V
• Current consumption: 0.04A at both 12V and 24V
• Flat mounting design with a 0.5m cable for easy installation
• European E9 homologation ensuring compliance with safety standards
• ElectroMagnetic Compatibility (EMC) certified
• ADR approved for use on vehicles in Australia and New Zealand

Applications

This LED marker lamp is suitable for use as a marker lamp on trailers, trucks, and other commercial vehicles requiring reliable and efficient lighting solutions.

Technical Specifications

• Light Type: LED Marker Lamp
• Voltage: 12-30V
• Power Consumption: 0.5W (12V), 1W (24V)
• Current Consumption: 0.04A (12V and 24V)
• Colour: White
• Mounting: Flat
• Cable Length: 0.5m
• Approvals: E9, EMC, ADR

Installation

The FT-018 B LED lamp is designed for straightforward flat mounting and comes with a 0.5-metre cable, allowing for flexible connection options.

Additional Information

Fristom is a trusted manufacturer with a long-standing tradition in automotive lighting, ensuring high-quality products that meet industry standards.

Technical Documents

No technical documents are currently available for this product.
