FEEL7000

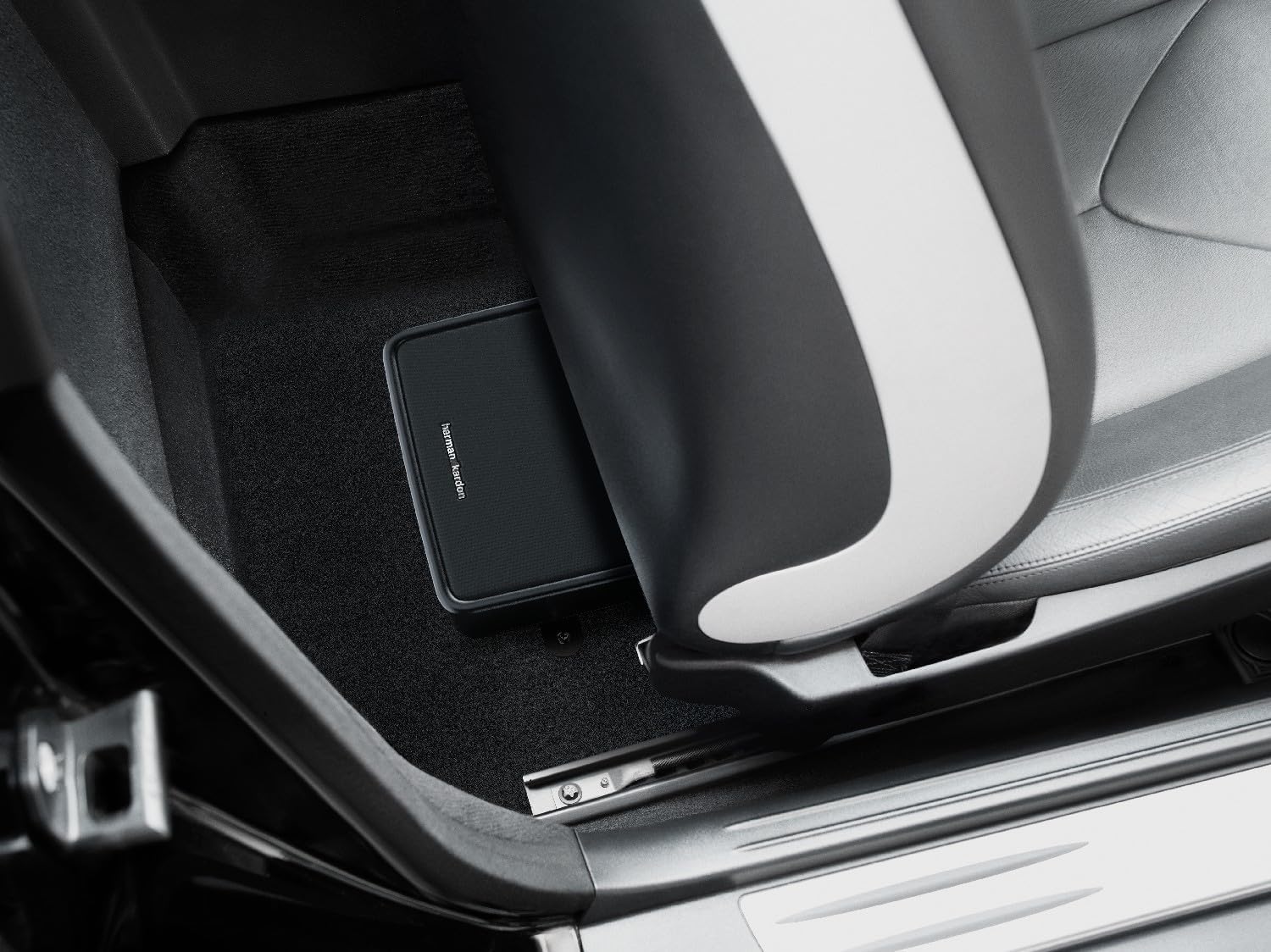

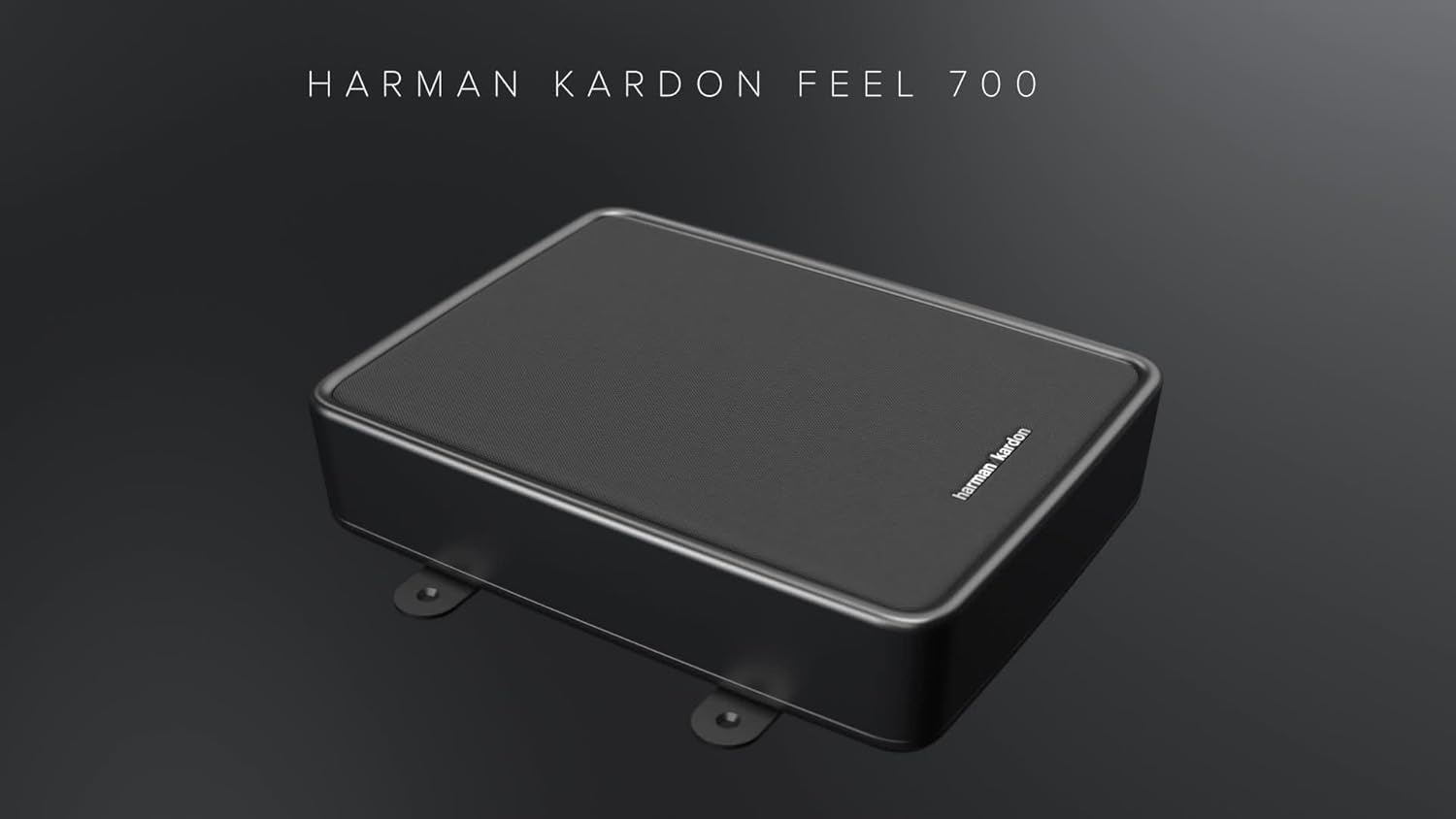

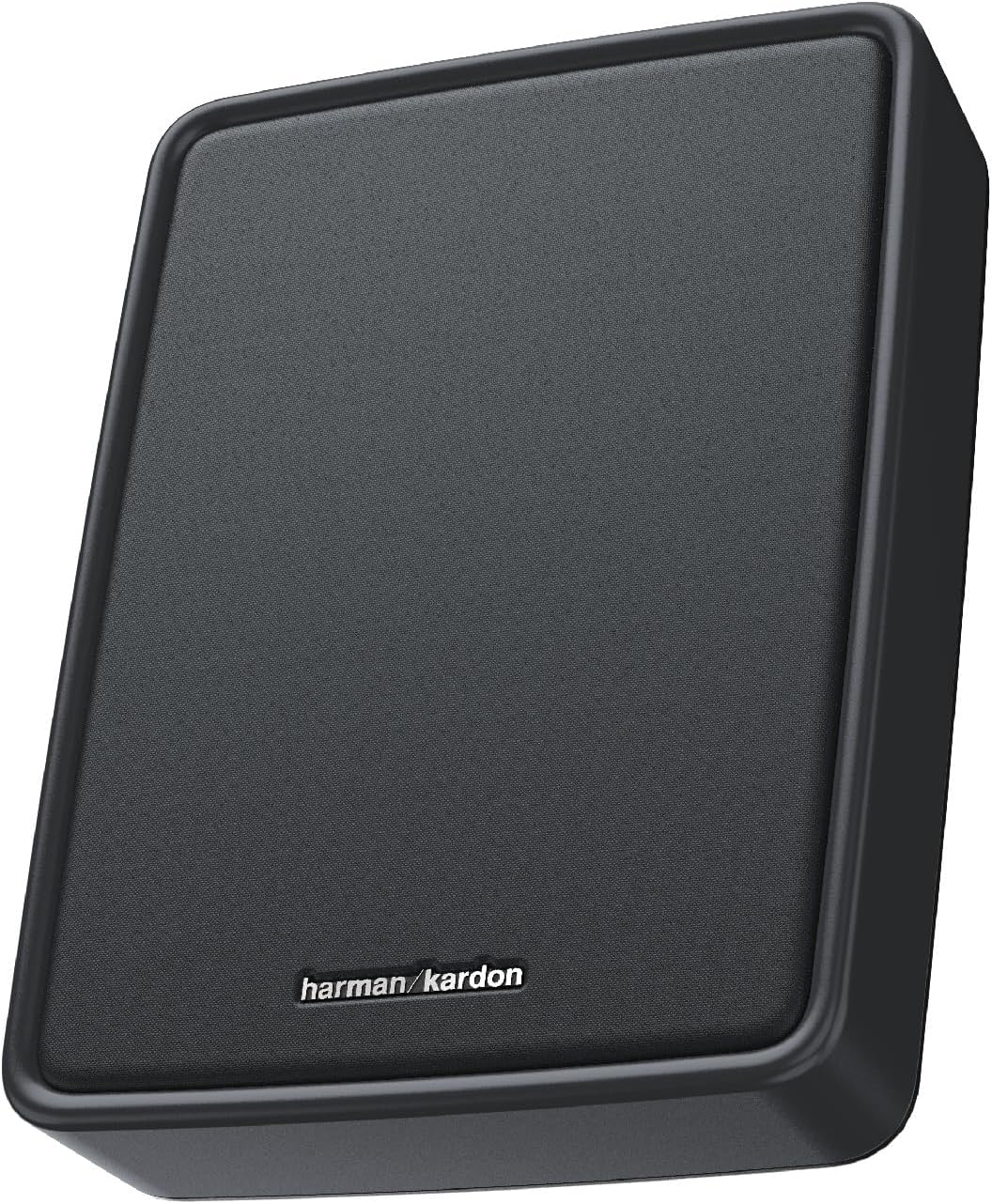

The active HK FEEL 700 Under Seat Subwoofer was designed for integration into existing vehicle sound systems. Despite its compact size, it boasts numerous connection and adjustment options. In the style of the materials used in the automotive industry, it harmonises particularly well with today’s dark vehicle interiors. The aluminium cover protects the loudspeaker from damage when mounted in the rear seat area. The jury was impressed by the precise, powerful bass reproduction, as well as the consistent implementation of the well-thought-out design and construction principle.

General specifications

• Driver Complement: super powerful 7″ (165mm) Subwoofer
• Amplifier Power: Class D, 125Wrms; 250W Max
• Frequency Response: 40Hz – 150Hz • Fuse: 15A
• Maximum Current Draw: 14 A • Quiescent Current Draw: <700 mA
• Input Sensitivity: 0.10 V – 5.0 V Low-Level Input; 0.5 V – 25V High-Level Input
• Crossover Frequency: 50 Hz – 150 Hz • Crossover Slope: 12 dB/octave
• Bass Boost: 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H): 10-1/4″ x 7-11/16″ x 2-5/16″ (260mm x 195mm x 58mm)
• Weight: 7.7 lbs (3.5kg)

What’s in the box

• 1x Subwoofer
• 2x Wiring harness for power and speaker level input (300mm)
• 4x Mounting plates
• 8x M4x6 Philip screws
• 4x M4x25 Philip screws
• 1x 15A Fuse
• 1x Safety sheet
• 1x OM

Powerful Bass, Ultra-compact Space HK

FEEL 700 reproduces deep, powerful bass while taking up minimal space

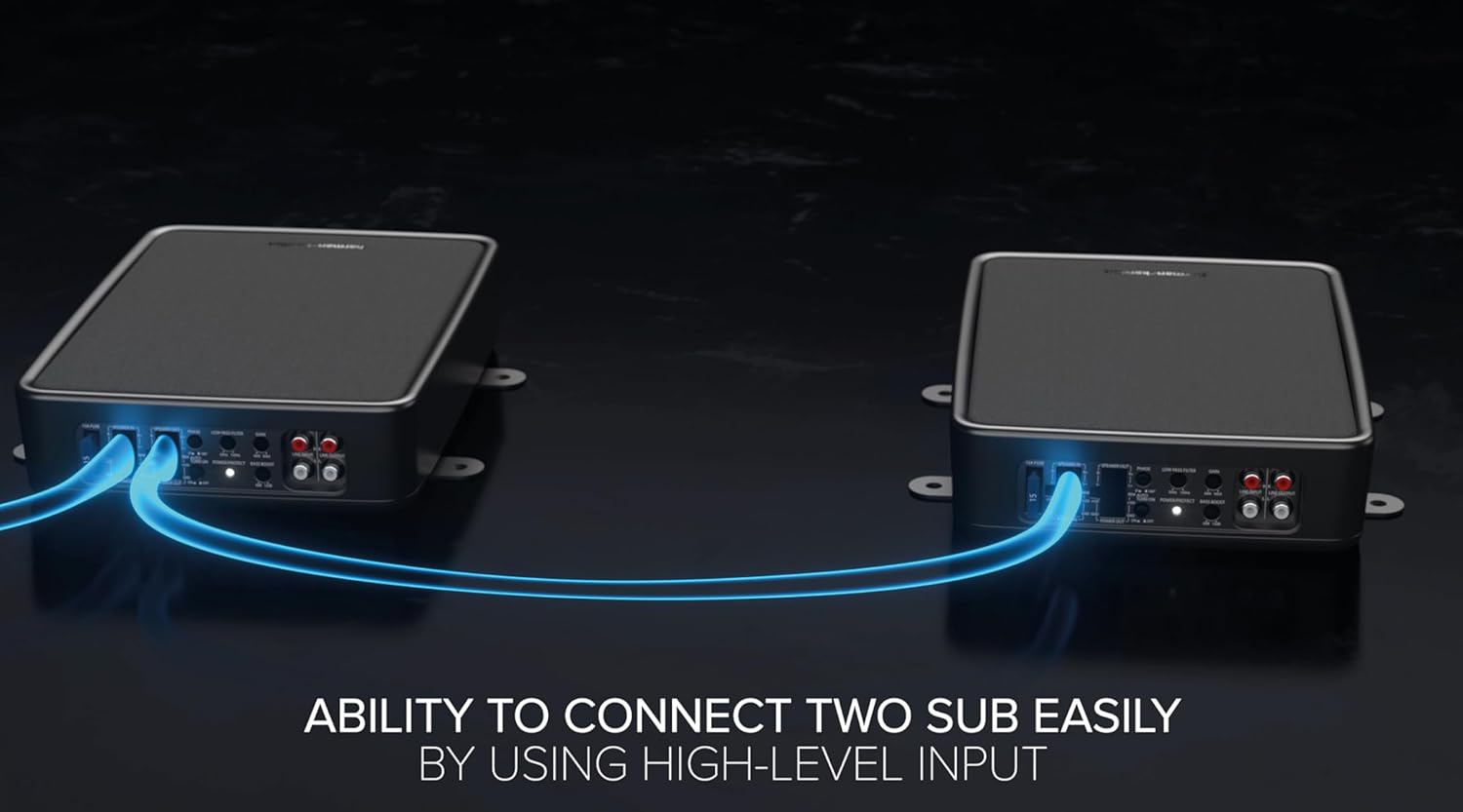

Easy Upgrade with Series Wiring Capability

HK FEEL 700 can be connected in series to a second (sold separately) for even more bass output. This is achieved by daisy chaining, with no need for complex wiring or installation, and is independently adjustable.

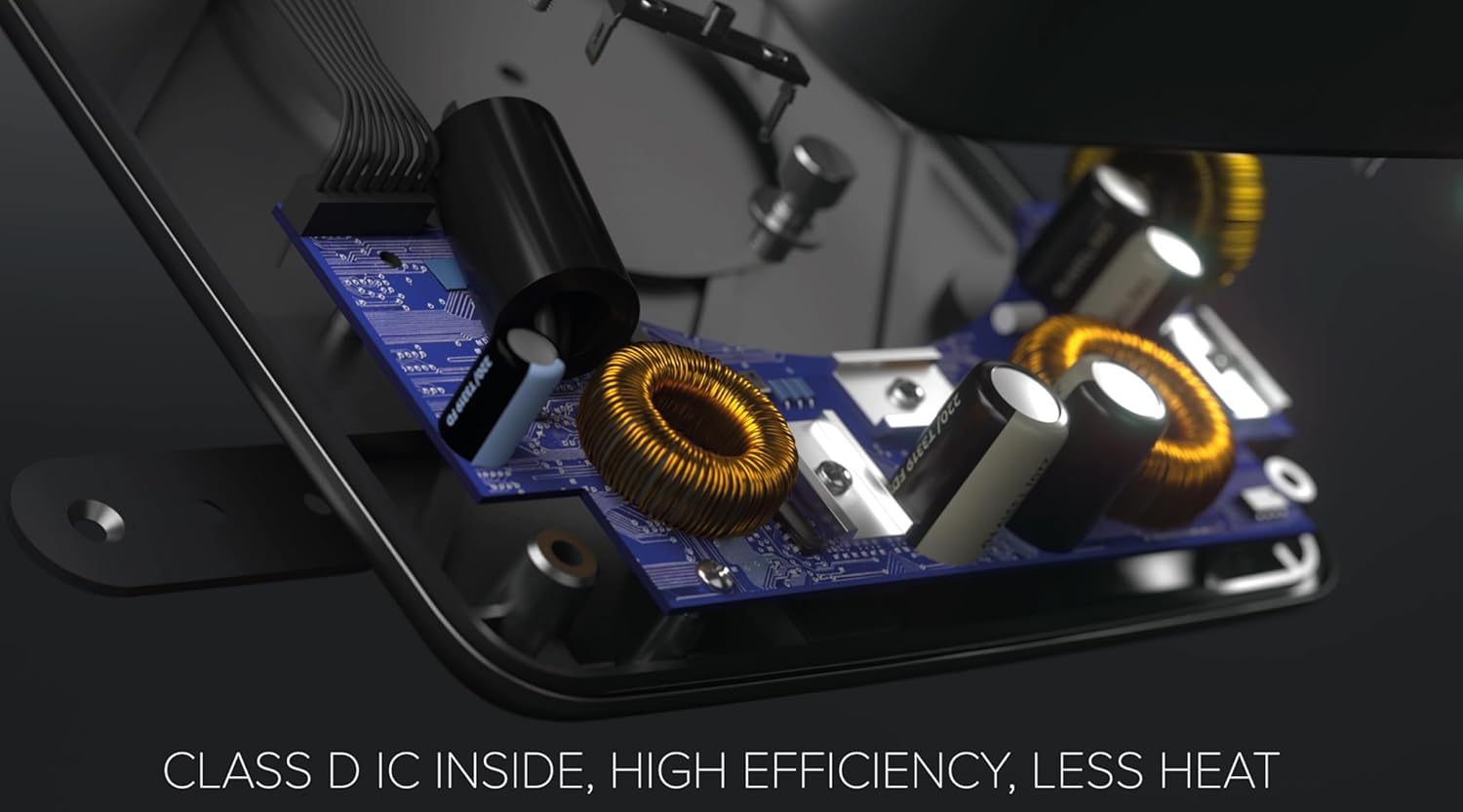

Efficient Class D amplifier

The amp that powers the FEEL 700 produces minimal heat, and it doesn’t require a lot of current from the car’s electrical system

Crossover Control

An adjustable crossover (LOW PASS FILTER: 50Hz – 120Hz) lets you adjust how much upper bass and mid-bass the FEEL 700 produces. Fine-tune the crossover to achieve a smooth transition from the FEEL 700 to the rest of the system’s speakers.

Flexible EQ Adjustments

Level control (GAIN) adjusts the HK FEEL 700’s volume to the other speakers in your system, while BASS BOOST (0-12dB) control lets you minimize peaks or dips in bass frequencies in your car’s acoustic environment.

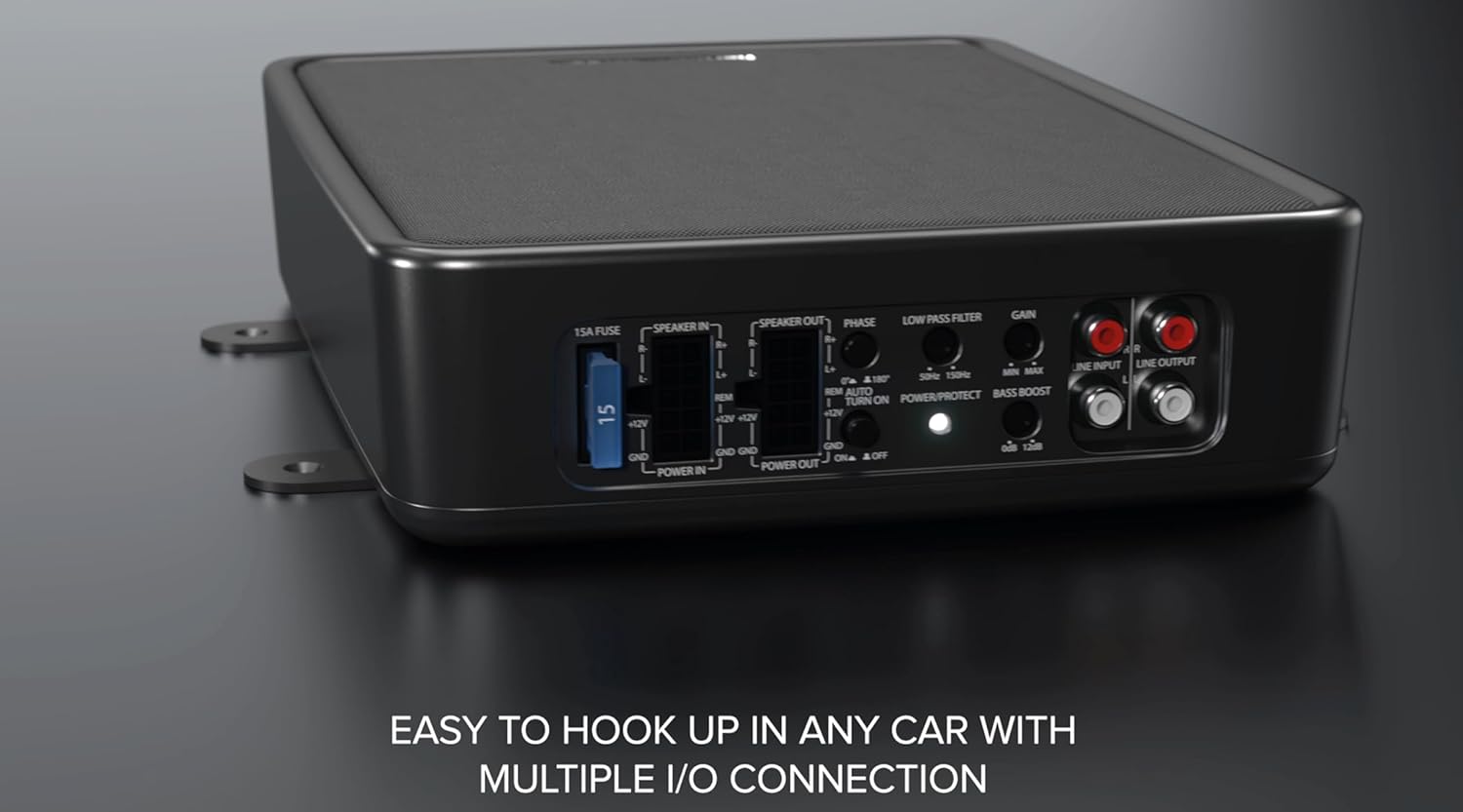

Line- and High-level Inputs

For added installation flexibility, the FEEL 700 features both line- and high-level inputs.

Die-Casting Aluminum Enclosure Design

The all-die-cast aluminum enclosure design is not only Ultra-compact size, but the ALL IN ONE is combined elegant Harman Kardon clean design language and powerful acoustic performance.

Harman/Kardon’s Clean Aesthetic Design

Clean, powerful presence communicates clean, powerful bass. Harman/ Kardon leverages its distinct design language in the car beautifully. Clean corners and edge treatments maximize Feel 700’s internal air volume, critical for bass performance. Wrapping the grille in an automotive grade fabric allows for Feel 700 to live in harmony with automotive carpets. Pillowing the edges of the fabric grille sub-flush to the aluminum frame’s outer edge protects it from second row passenger feet. Finishing the clean appearance is the aluminum badge, justified forwards the bottom edge, quietly, yet proudly presenting itself in the vehicle.
