DX-TOCT80

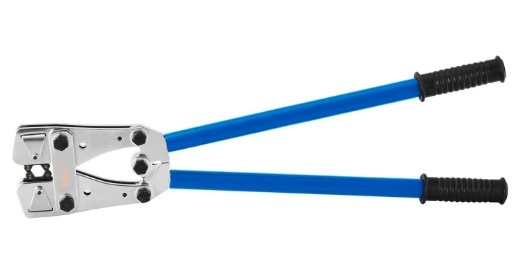

The DeltX DX-TOCT80 is a heavy-duty mechanical crimping tool designed for fitting large non-insulated terminals and tube cable lugs to cables ranging from 10mm² to 120mm².

Its adjustable crimping mechanism allows one tool to cover a wide range of heavy-duty cable sizes. Mechanical operation provides the leverage required to create firm and repeatable crimps without the need for a separate hydraulic pump or electrical power supply.

The tool is suitable for automotive electricians, commercial-vehicle workshops, fleet maintenance departments and installers working with battery, starter, charging and other high-current electrical cables.

Key Features

• Mechanical crimping tool for heavy-duty electrical connections
• Suitable for cable sizes from 10mm² to 120mm²
• Designed for large non-insulated terminals and tube cable lugs
• Adjustable crimping mechanism covers multiple cable sizes
• Manual operation requires no hydraulic pump or electrical supply
• Long-handle design provides increased mechanical leverage
• Suitable for professional workshop and mobile installation work
• Robust construction for automotive and commercial-vehicle applications

Technical Specification

Typical Applications

• Battery cable manufacture and repair
• Starter motor and alternator cables
• Commercial-vehicle electrical systems
• Truck, trailer and fleet maintenance
• High-current DC power connections
• Inverter and auxiliary battery installations
• Automotive and industrial workshop repairs

Installation Guidance

Always select a terminal and crimp setting that match the cable cross-section. The completed connection should be checked for correct compression, cable retention and exposed conductor before being insulated or installed in the vehicle.

Cross-Reference

Alternative reference: Durite 0-703-80.

Why Choose DeltX?

DeltX tools and electrical products provide practical solutions for automotive, commercial-vehicle, fleet and professional workshop applications.
