DX-ASB50

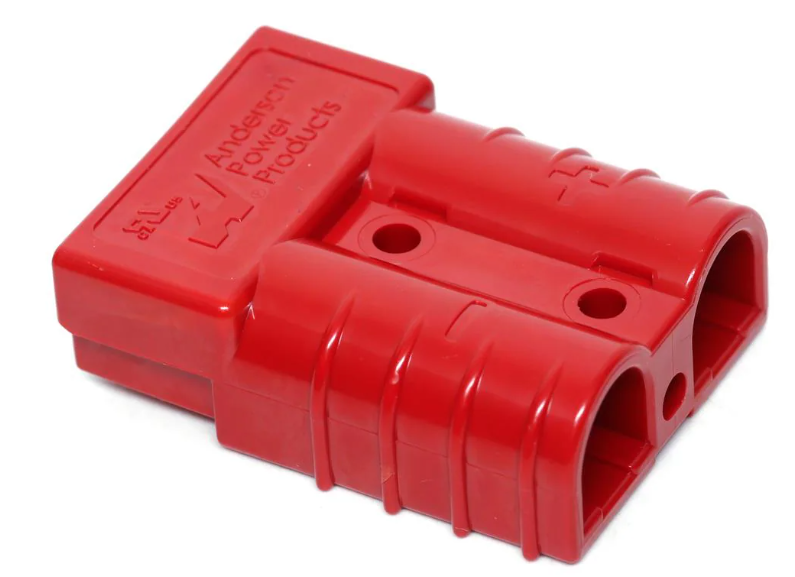

The DX-ASB50 is a 50A Anderson-style power connector housing, widely recognized as the industry standard for high-current DC connections. These are essential for heavy-duty applications where a secure, vibration-proof, and “dummy-proof” connection is required.

## Core Specifications

The DX-ASB50 (Red) follows the standard SB50 footprint. Here are the technical vitals:

• Current Rating: 50 Amps

• Voltage Rating: Recommended for 24V systems (coded by color).

• Housing Material: Polycarbonate (high impact and heat resistant).

• Contact Material: Silver-plated copper (minimizes resistance at high current).

• Genderless Design: There are no “male” or “female” plugs; two identical connectors simply flip 180° to mate with each other.

## The “Color Key” System

In the world of Anderson plugs, color matters. The housings are mechanically keyed so that they will only mate with a connector of the same color.

• Red Housing: Specifically keyed for 24-volt applications.

• The Logic: This prevents a user from accidentally plugging a 12V device (Grey plug) into a 24V power source (Red plug), which would likely cause electrical damage or fire.

## Key Features

• Self-Wiping Action: The internal springs keep constant pressure on the contacts. When you plug and unplug them, the surfaces “wipe” each other clean of oxidation.

• Vibration Resistance: The stainless steel leaf spring inside the housing locks the contacts in place, making them ideal for off-road vehicles and machinery.

• Standard Compatibility: The DX-ASB50 is fully compatible with original Anderson Powerpole SB50 series connectors.

## Common Applications

## Installation Tip

When assembling the DX-ASB50, ensure you hear a distinct “click” when pushing the metal contact into the housing. This indicates the terminal has cleared the internal metal spring and is locked. If you can pull the wire back out, it isn’t seated correctly!
