CANM8CLICK

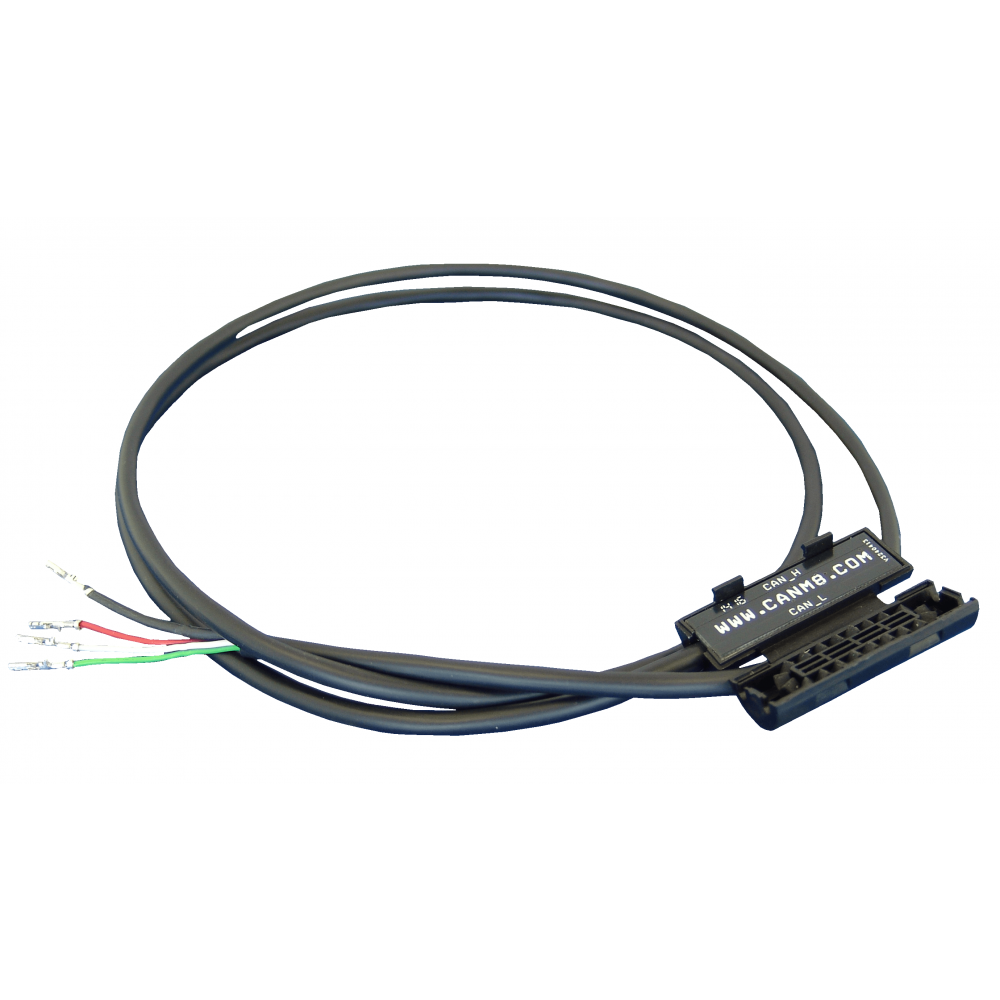

The Contact-less Reader option allows the CAN Bus interface to read vehicle CAN Bus data without any actual metal to metal connection between the interface and the vehicle CAN Bus. The reader is secured around a section of the vehicle CAN Bus wiring and data is read by an induction method, thus protecting any manufacturers warranty.

This version of our Contact-less reader works on 5v and is directly compatibility with our CANNECT Rnage of Interfaces. If you are installing one of our CANNECT Products, and wish to purchase a contact-less reader to work with it, then this is the product for you. If you are using the contactless reader for anything else, other than connecting our interfaces, then please click here to purchase our 12-30v version which is compatible with most electronic devices.

The readers feature a strong locking clamp to retain their position around the CAN wiring. The CAN wiring must first be straightened for a short distance and the HI – LO wires identified and placed in to the corresponding channels of the reader before the reader housing can be closed over the wiring.
