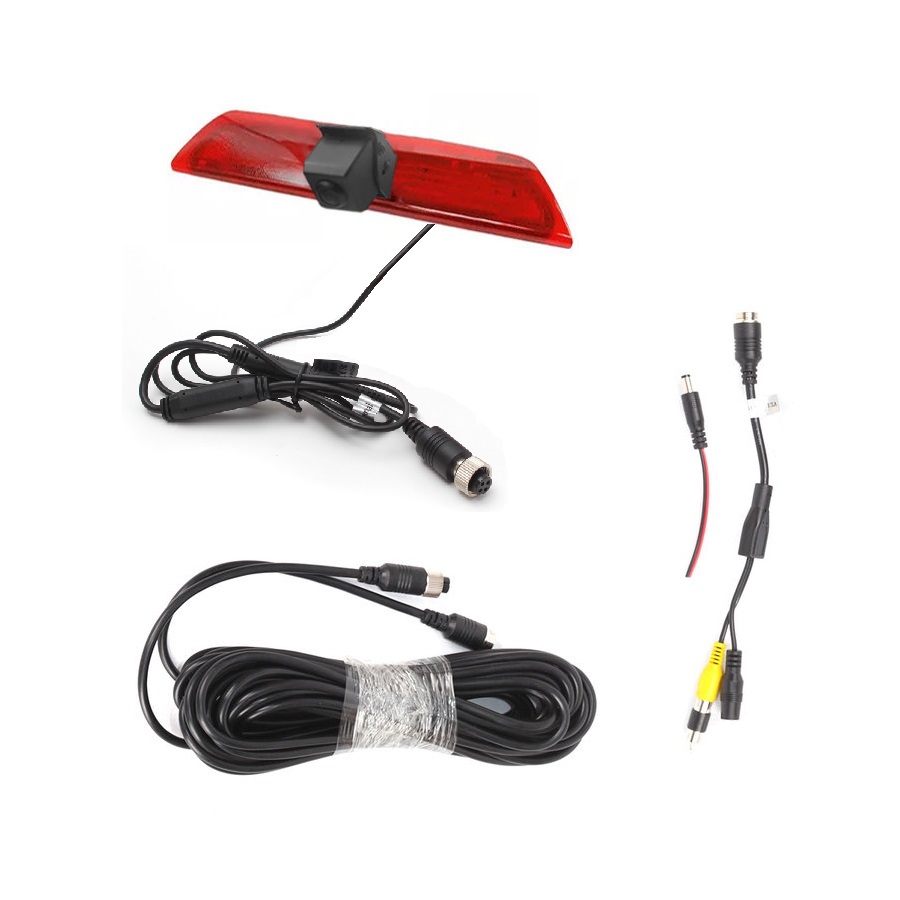

VW CADDY 2 Rear View Camera in Brake Light (2020-)

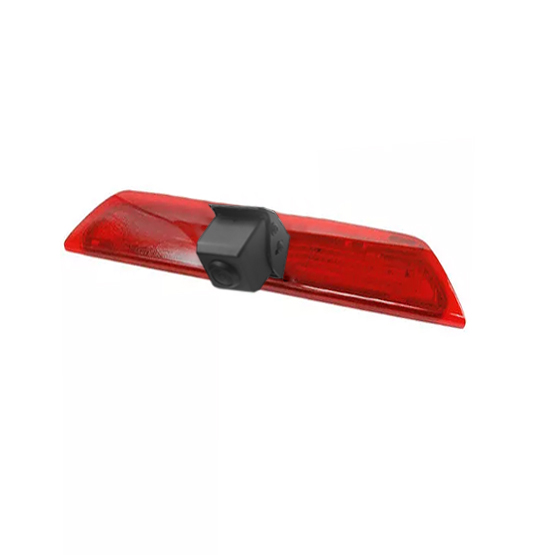

Parking camera integrated in the central brake light installed above the rear door for VW Caddy (2020-) vans. Camera with E-mark.

Assigned for the car models:

• VW Caddy V. (2020-)
• Ford Tourneo Connect

Technical parameters:

• sensor: 1/2.7 FH8536H+C2399
• Electronic Aperture: 1/50 1/10000 sec.
• Minimum lighting: 0.1Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC
• video resolution: 1.000 TV lines
• weather protection: IP69K
• sensing angle: 122° horizontal
• camera body: durable plastics “private housing”
• image display: mirror
• white balance: automatically
• operating temperature from -20 °C to + 75 °C
• AGC, BLC, white balance: automatically

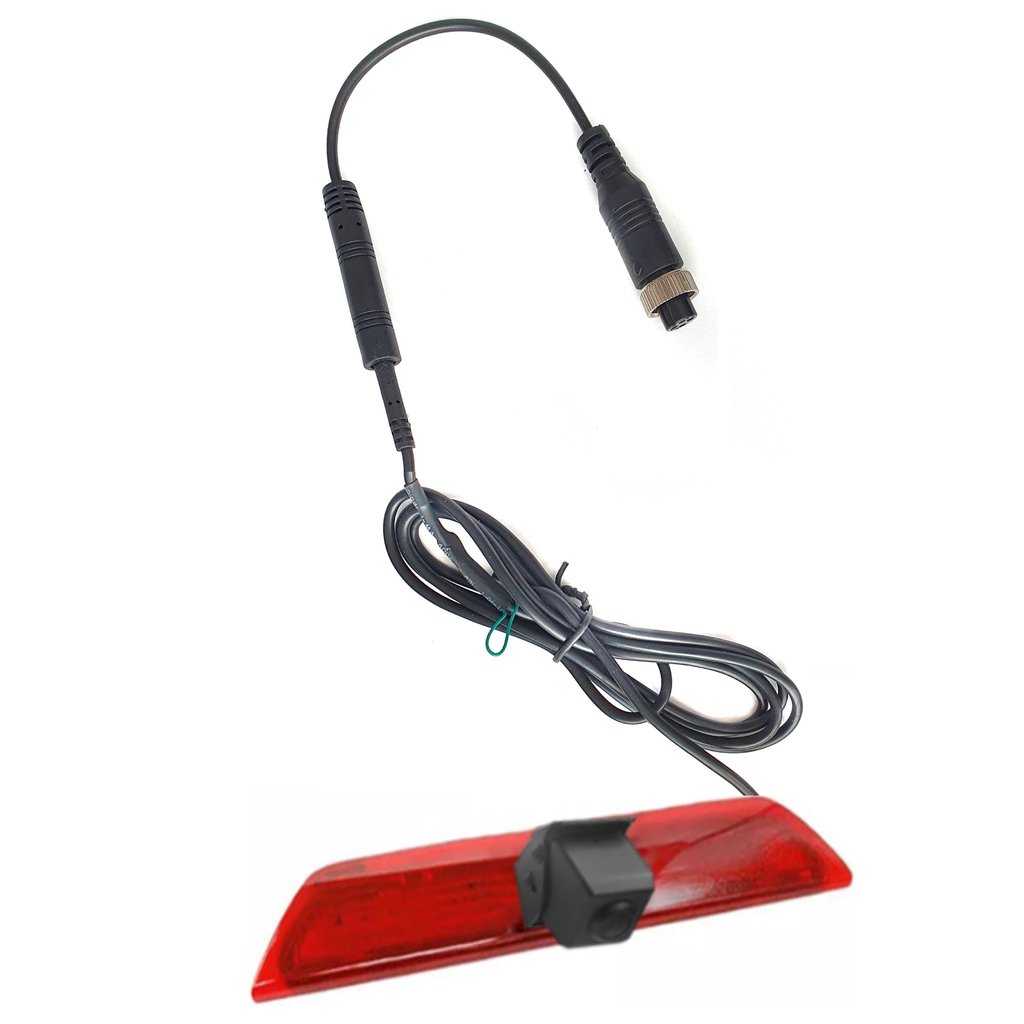

• Signal cable: 10m long with CINCH / RCA connector
• video output: 1.0V / 75 Ohm
• power cord length: 1m
• power supply: 12V DC
• consumption: <1W
• brakelight dimensions:   181 mm x 31 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit requires to add the video adapter for parking camera!
