1FE 008 773-081

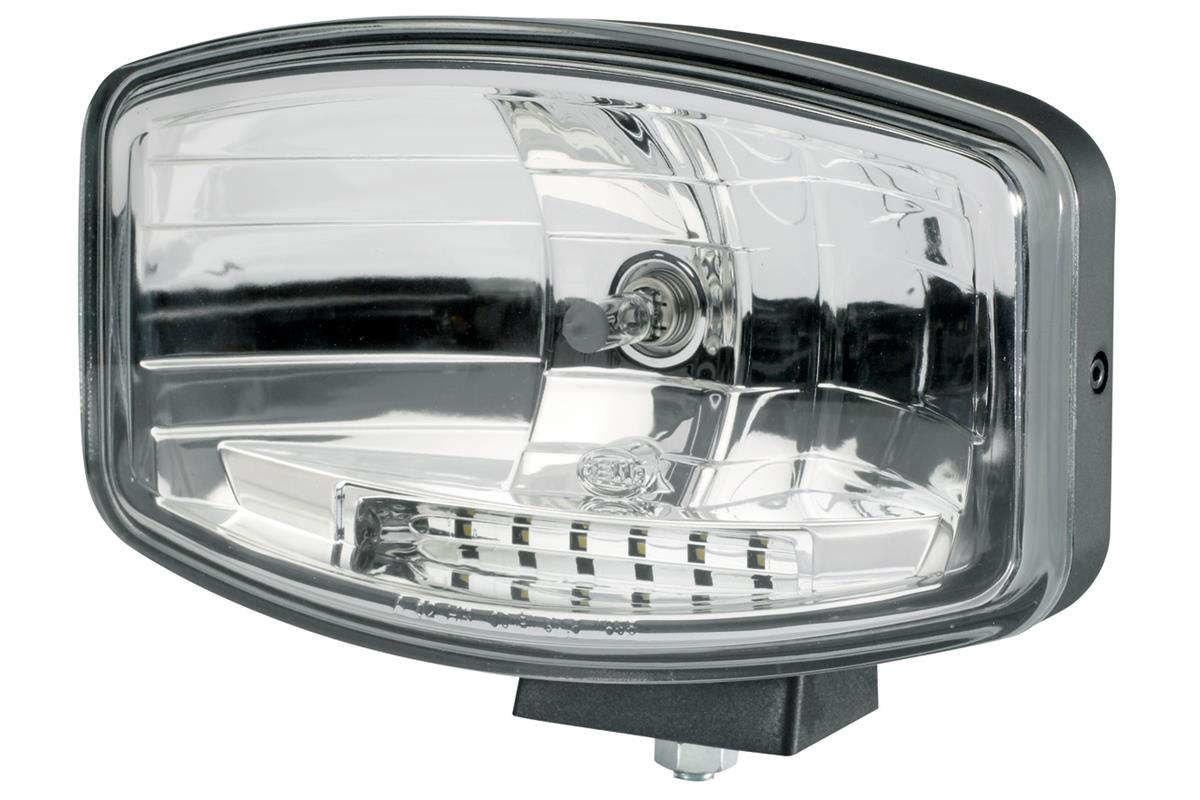

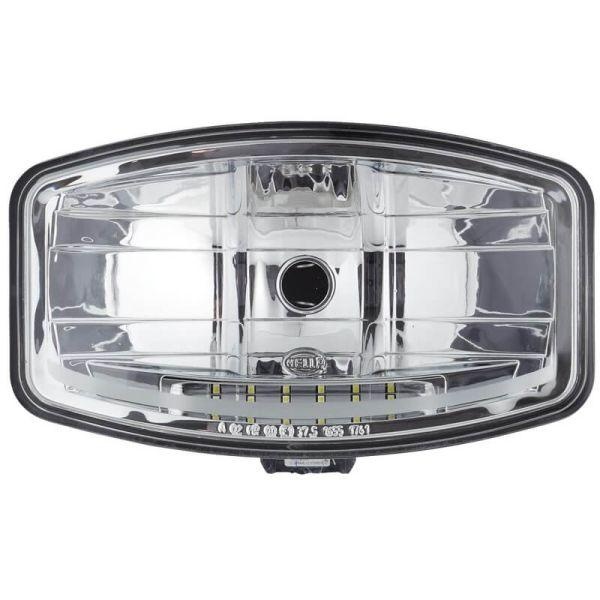

The HELLA Jumbo 320 FF is a rectangular auxiliary high-beam headlamp designed for 12V and 24V vehicle electrical systems. It combines a powerful H7 halogen high beam with an integrated position light formed by six high-performance LEDs.

Its FF high-boost reflector is engineered to provide efficient long-range illumination, while the robust plastic housing and die-cast metal reflector make the lamp suitable for demanding commercial vehicle applications.

Key Features

• H7 auxiliary high-beam headlamp
• Integrated position light with six high-performance LEDs
• Suitable for 12V and 24V vehicle systems
• FF high-boost reflector for efficient long-range illumination
• Robust plastic housing
• Die-cast metal reflector
• Surface mounting in an upright or pendant position
• ECE reference number: 37.5
• ECE-approved high beam and LED position light

Typical Applications

• Trucks and commercial vehicles
• Agricultural machinery
• Construction and plant equipment
• Off-road and utility vehicles
• Other 12V or 24V vehicles requiring an auxiliary driving lamp

Technical Specifications

Scope of Supply

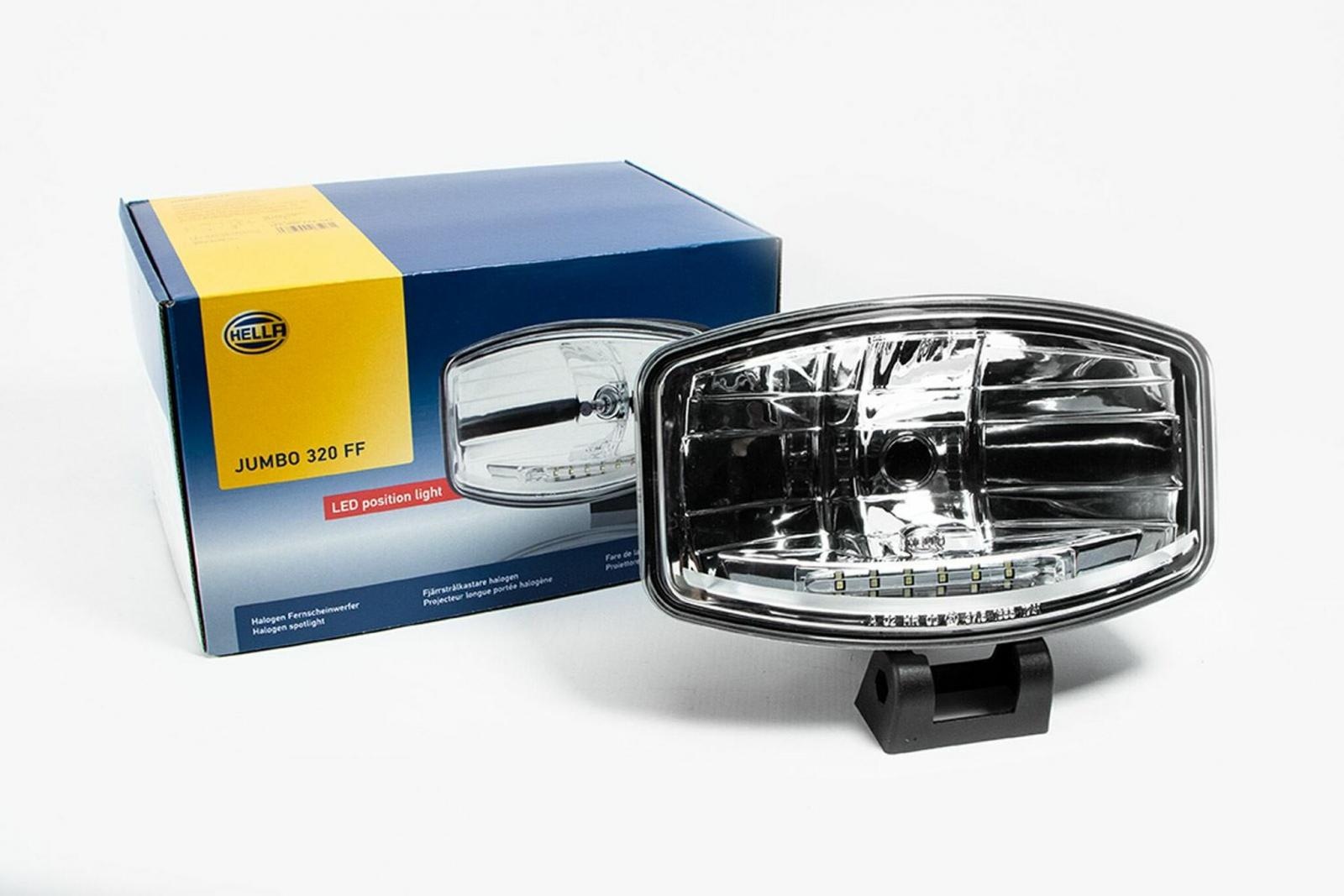

• HELLA Jumbo 320 FF headlamp
• Mounting hardware
• Installation instructions

Please note: The H7 bulb is not included. Select the correct H7 bulb for the vehicle voltage. Installation must comply with ECE R48 and applicable local regulations.
