12ARM

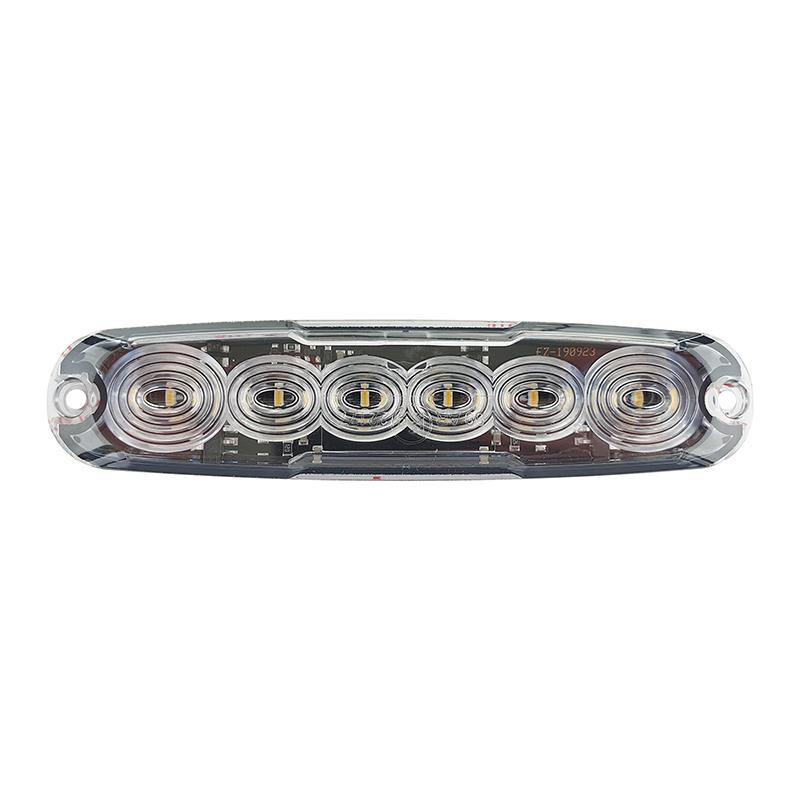

The LED Autolamps 12ARM is an ultra-compact rear combination lamp providing stop, tail and indicator functions within a housing measuring just 131 x 30 x 8 mm. Its low-profile construction makes it particularly suitable for installations where available mounting space is limited.

Six high-brightness LEDs provide dependable rear signalling for 12V and 24V vehicles. The lamp can be installed horizontally or vertically and secured using screws or suitable 3M adhesive backing tape.

Key Features

• Combined stop, tail and indicator functions
• 12/24V multivolt operation
• Six high-brightness LEDs
• Ultra-low-profile housing measuring only 8 mm deep
• Suitable for horizontal or vertical mounting
• Screw mounting or installation using 3M adhesive backing tape
• Shock, water and dust-resistant construction
• IP67 protection rating
• ECE R10, ECE R6 and ECE R7 approved
• Covered by the manufacturer’s five-year warranty

Technical Specification

Typical Applications

• Commercial vehicles
• Trailers and semi-trailers
• Recovery and utility vehicles
• Specialist vehicle bodywork
• Installations with restricted mounting depth

Alternative Products

• DeltX DX-L12ARM – direct DeltX equivalent
• DeltX DX-L12A80 – alternative version supplied with an 80 cm cable
