WKLADFT-500KIERL

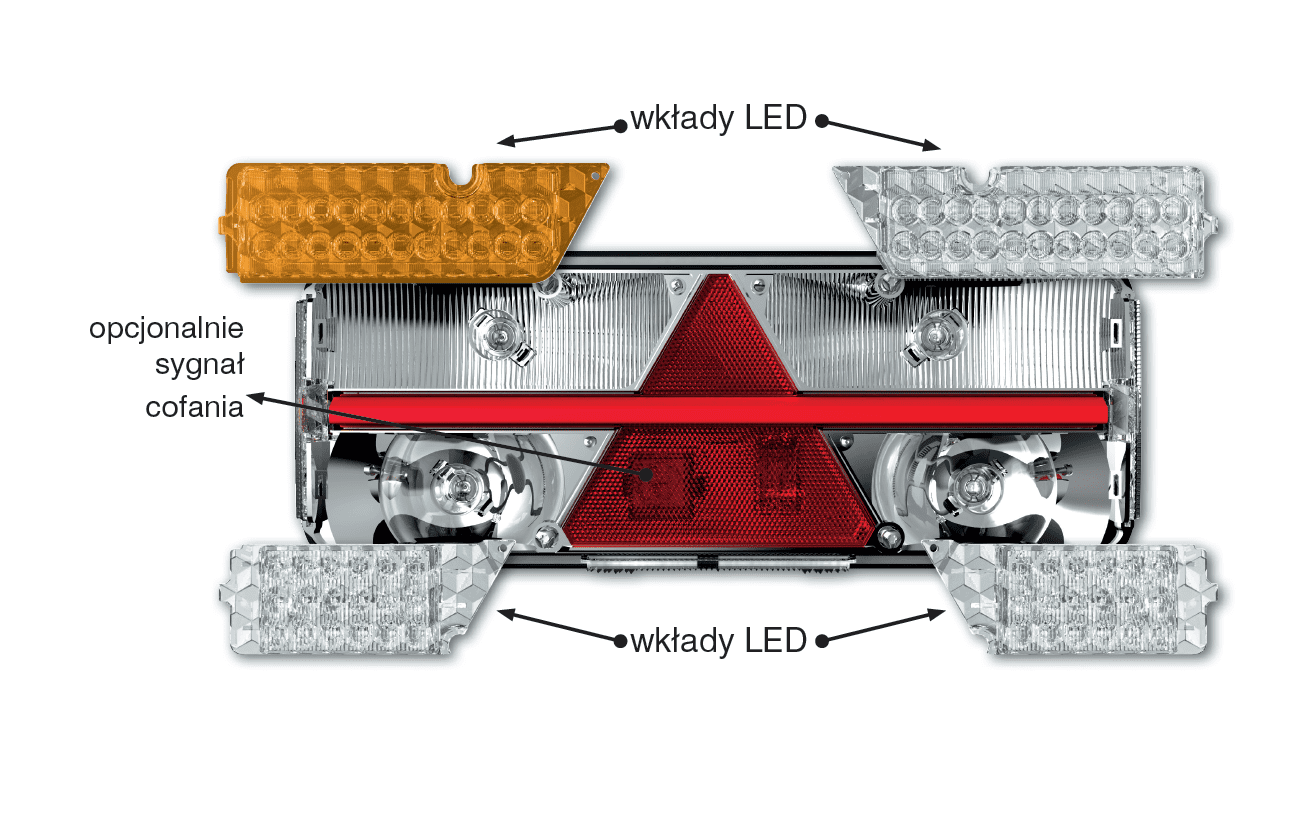

Fristom FT-500 LED Indicator Panel Left

The FT-500 LED indicator panel for the left side is designed as a hybrid light solution for rear lamps, compatible with the Fristom FT-500 range. It allows users to interchange between the LED panel and traditional light bulb, providing flexibility and ease of maintenance.

Key Features

• Hybrid light design enabling swap between LED panel and bulb.
• Replaceable light cover to avoid discarding the entire LED light in case of damage.
• Dynamic LED direction indicator for clear signalling.
• Available with or without outline marker lamp.
• Includes two fuse sockets for plate fuses to protect optional connected lights (fuses not included).
• Supports a “load” on the LED direction indicator light.

Technical Specifications

• Voltage: 12-30V
• Functions: Part of a 6 or 7 function rear lamp system (depending on configuration).
• Mounting: Universal spacing of mounting screws.
• Additional Outputs: Four 2-pin outputs on the lamp body for connecting additional lights such as stop light, number plate lighting, reverse lamp, or side lamps.

This indicator panel is part of the FT-500 LED rear lamp system, which offers multiple lighting functions including rear position, brake, indicator, reverse, and rear fog lights. It is engineered to provide reliable performance and ease of service for commercial and automotive applications.
