W-1527DDP

WAS LED Rear Lamp 12/24V Stop/Tail/Dynamic Indicator/Fog/Reverse/NP Right SMART STOP

SKU: W-1527DDP Category: Rear lamps Tags: 1527, SMART STOP, W150DD, was Brand: WAŚ

Description
Additional information

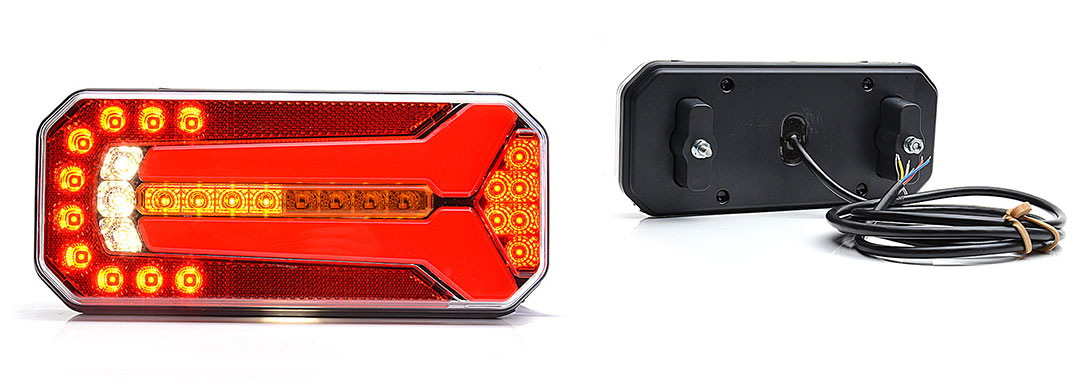

LED multifunctional rear lamp

1527 DD P

catalogue number	cable / wires	light source	mounting side	operating voltage	stop	position / rear clearance	reversing light	reflective device	fog	side license plate light	bottom license plate light	S2 – SMART STOP	dynamic indicator	pieces in the box
1527 DD P *	200cm YLY-S 6×0,5mm²	LED	Right	12V-24V										10
1527 DD P ADR *	200cm FLRYY 6×0,5mm²	LED	Right	12V-24V										10

* – product with extended delivery time

This product is also available in ADR-compliant version. This means that it meets the requirements of the European Agreement concerning the International Carriage of Dangerous Goods by Road: materials (substance, chemical, compound, waste, etc.) or objects (a product containing hazardous materials), the carriage of which is regulated by the ADR agreement.

W150DD is a modern LED rear lamp with the unique shape of a position light and dynamic indicator. The LED position lamp modules are made of a special compound thanks to which the particular lightning points are not visible and it is only possible to see the shape and is pleasant to the eye glow with a neon-like effect. Dynamic indicator brings light moving effect heading towards the direction of turn, when each of 8 led lights up with a delay. The lamp can be used in working voltage 12V and 24V. It is EC, EMC approved and it is also rated for IP 66/68. These are probably the best-looking lamps available on the market.

Power consumption	12V	24V
position light	1,4 W	2,9 W
stop light	1,4 W or 3,3 W	2,9 W or 5,9 W
indicator light	2,2 W	4,3 W
dynamic indicator light	2,2 W	4,3 W
reverse light	2,2 W	4,3 W
fog light	1,3 W	1,3 W
bottom license plate light	0,7 W	1,4 W

Weight: 0,7kg or 1,2kg with extra load for indicator

W150
functions	optional lighting – – license plate	assembly side	cable	load 12V	load 24V	WAS5	WAS7
5 functions T/S/I/F/R	side	universal	1114 DD L/P	1114 DD L/P O12	1114 DD L/P O24	x	1114 DD L/P WAS7
	bottom	left	1117 DD L	1117 DD L O12	1117 DD L O24	x	1117 DD L WAS7
	bottom	right	1120 DD P	1120 DD P O12	1120 DD P O24	x	1120 DD P WAS7
	without	universal	1123 DD L/P	1123 DD L/P O12	1123 DD L/P O24	x	1123 DD L/P WAS7
4 functions T/S/I/R	side	universal	1115 DD L/P	1115 DD L/P O12	1115 DD L/P O24	1115 DD L/P WAS5	1115 DD L/P WAS7
	bottom	left	1118 DD L	1118 DD L O12	1118 DD L O24	1118 DD L WAS5	1118 DD L WAS7
	bottom	right	1121 DD P	1121 DD P O12	1121 DD P O24	1121 DD P WAS5	1121 DD P WAS7
	without	universal	1124 DD L/P	1124 DD L/P O12	1124 DD L/P O24	1124 DD L/P WAS5	1124 DD L/P WAS7
4 functions T/S/I/F	side	universal	1148 DD L/P	1148 DD L/P O12	1148 DD L/P O24	1148 DD L/P WAS5	1148 DD L/P WAS7
	bottom	left	1149 DD L	1149 DD L O12	1149 DD L O24	1149 DD L WAS5	1149 DD L WAS7
	bottom	right	1150 DD P	1150 DD P O12	1150 DD P O24	1150 DD P WAS5	1150 DD P WAS7
	without	universal	1151 DD L/P	1151 DD L/P O12	1151 DD L/P O24	1151 DD L/P WAS5	1151 DD L/P WAS7
3 functions T/S/I	side	universal	1116 DD L/P	1116 DD L/P O12	1116 DD L/P O24	1116 DD L/P WAS5	1116 DD L/P WAS7
	bottom	left	1119 DD L	1119 DD L O12	1119 DD L O24	1119 DD L WAS5	1119 DD L WAS7
	bottom	right	1122 DD P	1122 DD P O12	1122 DD P O24	1122 DD P WAS5	1122 DD P WAS7
	without	universal	1125 DD L/P	1125 DD L/P O12	1125 DD L/P O24	1125 DD L/P WAS 5	1125 DD L/P WAS 7

W150/S2
functions	optional lighting – – license plate	assembly side	cable	load 12V	load 24V	WAS5	WAS7
5 functions T/S/I/F/R	side	universal	1519 DD L/P	1519 DD L/P O12	1519 DD L/P O24	x	1519 DD L/P WAS7
	bottom	left	1527 DD L	1527 DD L O12	1527 DD L O24	x	1527 DD L WAS7
	bottom	right	1527 DD P	1527 DD P O12	1527 DD P O24	x	1527 DD P WAS7
	without	universal	1520 DD L/P	1520 DD L/P O12	1520 DD L/P O24	x	1520 DD L/P WAS7
4 functions T/S/I/F	side	universal	1523 DD L/P	1523 DD L/P O12	1523 DD L/P O24	1523 DD L/P WAS5	1523 DD L/P WAS7
	bottom	left	1529 DD L	1529 DD L O12	1529 DD L O24	1529 DD L WAS5	1529 DD L WAS7
	bottom	right	1529 DD P	1529 DD P O12	1529 DD P O24	1529 DD P WAS5	1529 DD P WAS7
	without	universal	1524 DD L/P	1524 DD L/P O12	1524 DD L/P O24	1524 DD L/P WAS5	1524 DD L/P WAS

Brand	WAS

Since 2003

W-1527DDP

LED multifunctional rear lamp

1527 DD P
