CS-PS2004-3K

Specifications:

• Input Voltage: DC-12V
• Output Voltage: 200~240VAC
• Output Wattage: 3000w
• Output Frequency: 50Hz±1%
• Sockets : 2 x UK/ Euro combined
• Mounting: Bolted Through End Flange
• Frequency Htz: 50
• Working temperature: -10 ~ +50ºC
• Protection: Overload protection shutdown
• Power consumption: <0.9A

Additional Specifications:

• Output Wave Form: Pure Sine Wave (THD < 3%)
• Weight: 14 Kg
• The USB Output: 5V 2A
• Peak Power: 6000W
• Dimensions: 480mm (W) x 220mm (D) x 90mm (H)
• Max Constant Power Start : 3600W for 10 seconds
• Efficiency: 90% (Full Loading) / 95% (1/3 Loading)
• Low Voltage Alarm: DC 10.5V± 0.5V
• Low Voltage Protection: DC 11.0V / 11.9V
• High Voltage Protection: DC 15V±0.5V
• Short Circuit Shutdown: Reverse Polarity (External Fuse)
• Over Temperature Protection: YES Temperature >75℃
• Overload Shutdown: YES 3600w > 10 sec
• Radiator Fan: YES, Temperature control

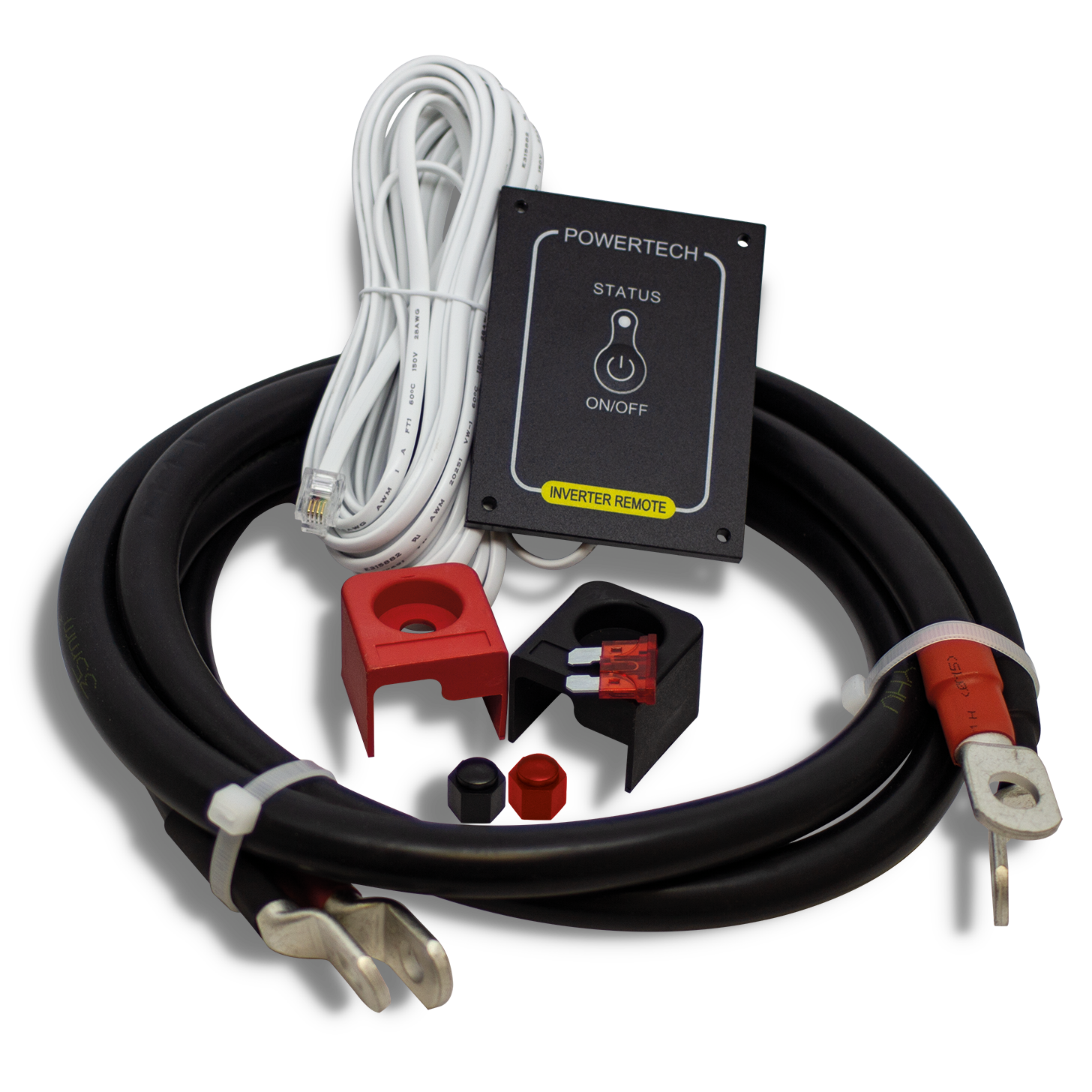

• Remote Control: YES
