GX-3800

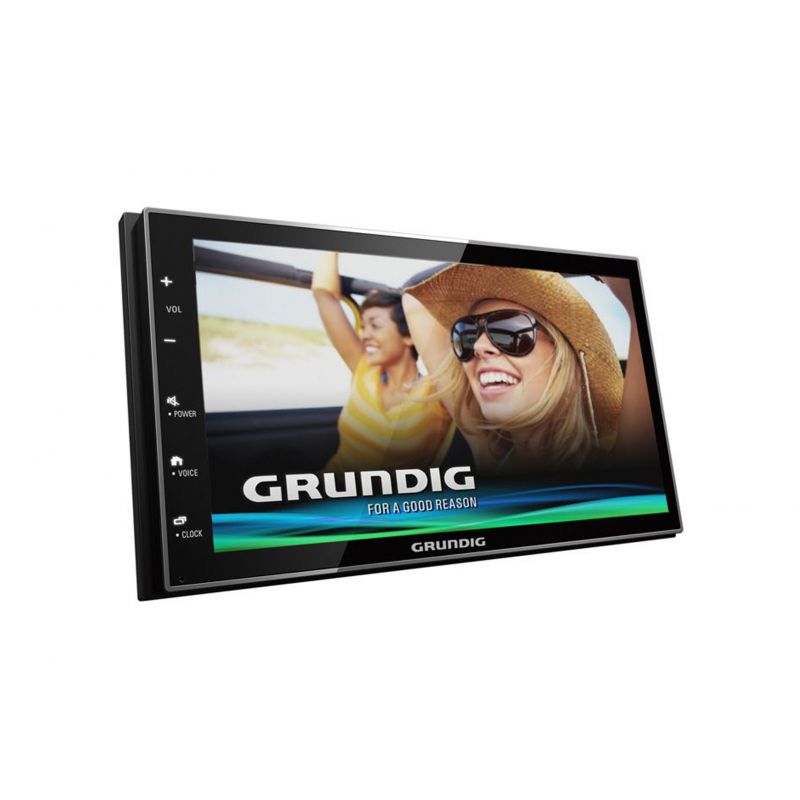

Grundig GX-3800 double din head unit with a 6.8″ capacitive touch screen. Featuring both Apple CarPlay and Android Auto,

the product has a 32bit True Colour touch control monitor providing crystal clear visuals for viewing your entertainment on the go.

The unit also features smartphone mirroring with direct control using the touchscreen and full HD 1080p media playback. Additionally,

the GX-3800 uses built-in hands-free calling and music streaming, USB phone charging, and a 24-bit digital audio processor

with 13 band true EQ and dynamic bass booster to provide fantastic audio quality and adjustability that any audiophile can enjoy.

General System

• Radio Region Global
• OS System Linux

Front Face

• Panel Dimension 178X100mm
• Screen Size & Resolution 6.8″ / 1024X600
• Touch Screen Capacitive Glass Type
• USB Interface Rear 1M Pig Tail USB (Type A)
• Play / Charge /Smart Phone Connectivity

Smart Phone Connectivity

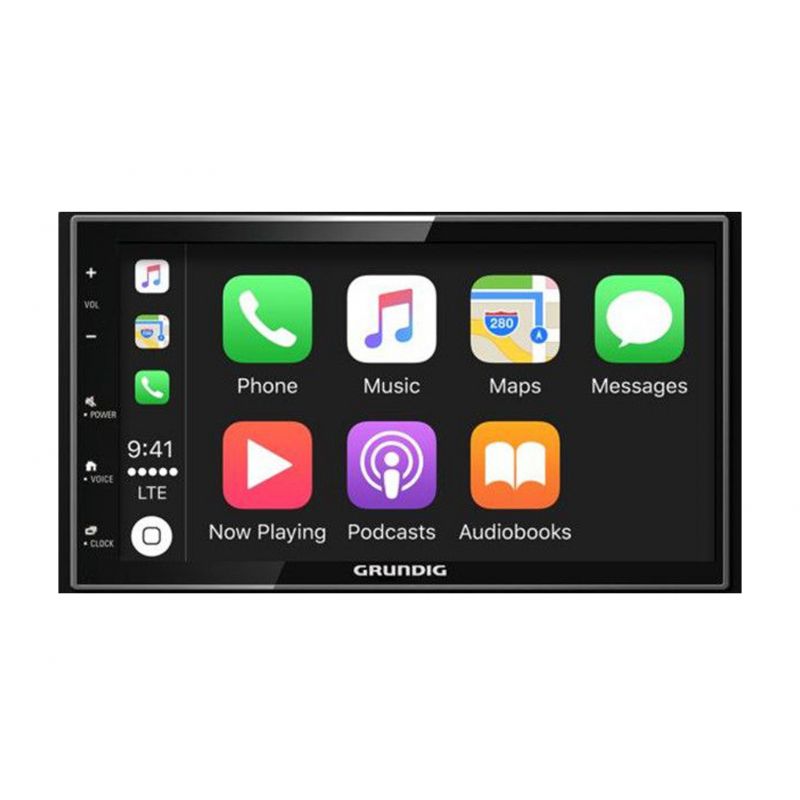

• CarPlay via USB

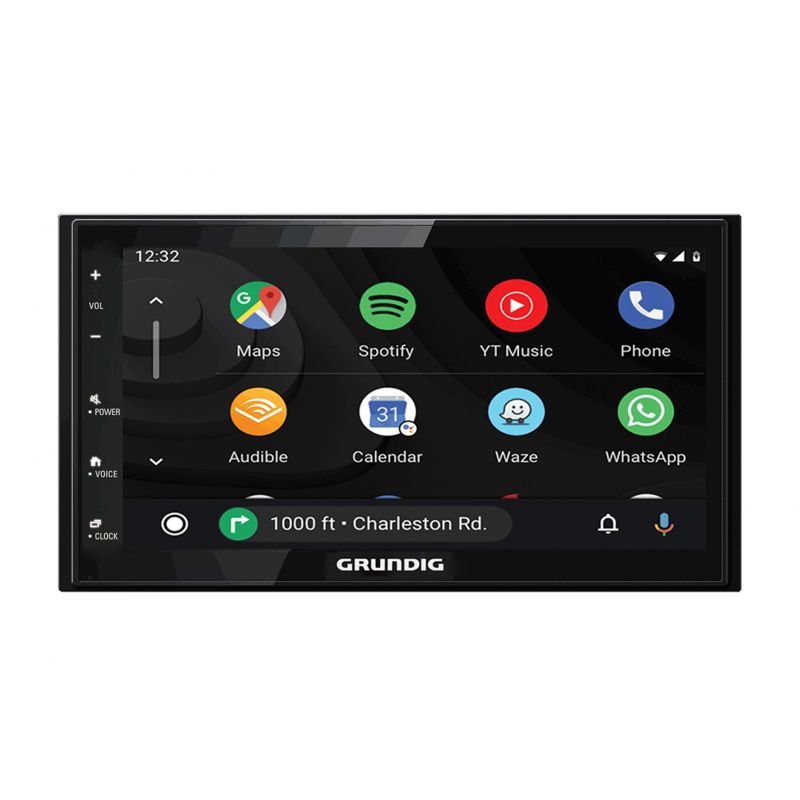

• Android Auto via USB
• Android Mirroring & Touch Mirroring via USB / Touch via BT
• iPhone Mirroring & Touch Mirroring via USB / Touch via BT

USB Media Playback

• Lossless Music Format FLAC / WAV
• HD 1080P Video Format H.264 / WMV / FLV / MP4 / MKV
• File System   FAT16,32 / NTFS / exFAT
• ID3 Information display
• Album artwork display
• Random Folder
• Repeat Folder/file/All
• Music Browser Song / Artist / Album / Files Search

iPod / iPhone (MFI)

• Playback via BT
• Music list Browser via CarPlay
• Music list Browser via BT
• Album Artwork Display via CarPlay
• Album Artwork Display via BT

Bluetooth Connectivity

• HFP v4.1
• Version v1.6
• Private Mode
• Call ID with Caller Name
• Call Waiting
• Call History
• A2DP v1.2
• Codec SBC
• AVRCP v1.5
• ID3 information
• Wireless Browse iPhone & Android
• PBAP (Phone Book) v1.0 (2000 Phone List)
• Phonebook Alphabet Search English
• SSP (Auto Pairing)
• SSP (Auto Pairing)
• Built in ring tone
• SPP
• iAP over Bluetooth
• Voice Call      Siri / Google

FM Radio

• Digital Tuner
• DSP Noise Adjust
• RDS/RBDS (PTY) System
• Preset Memory 24 x FM
• Band FM X 1
• Radio Text Plus
• Seek up/down
• Auto store
• Manual store

AM Radio

• Digital Tuner
• DSP Noise Adjust
• Preset Memory 12 x AM
• Band  AM x 1
• Seek up/down
• Auto store
• Manual store

AM Radio

• Digital Tuner
• DSP Noise Adjust
• Preset Memory
• Band
• Seek up/down
• Auto store
• Manual store

DSP Audio Processor

• EQ Band 13 Band
• Crossover High & Low Pass Filer
• Listen Position Preset Audio Zone
• Time Alignment
• Virtual Front Tweeter
• Virtual Rear SubW Out/th>

Audio System

• Max Power Output   MOSFET 4x50W
• RMS Power Output 4x22W
• Preout Level 4V x 3 RCA (Front / Rear / SubW)

Smart Phone Charge

• iPhone USB 1.5A
• Android Phone USB 1.5A
• Standard BC1.2

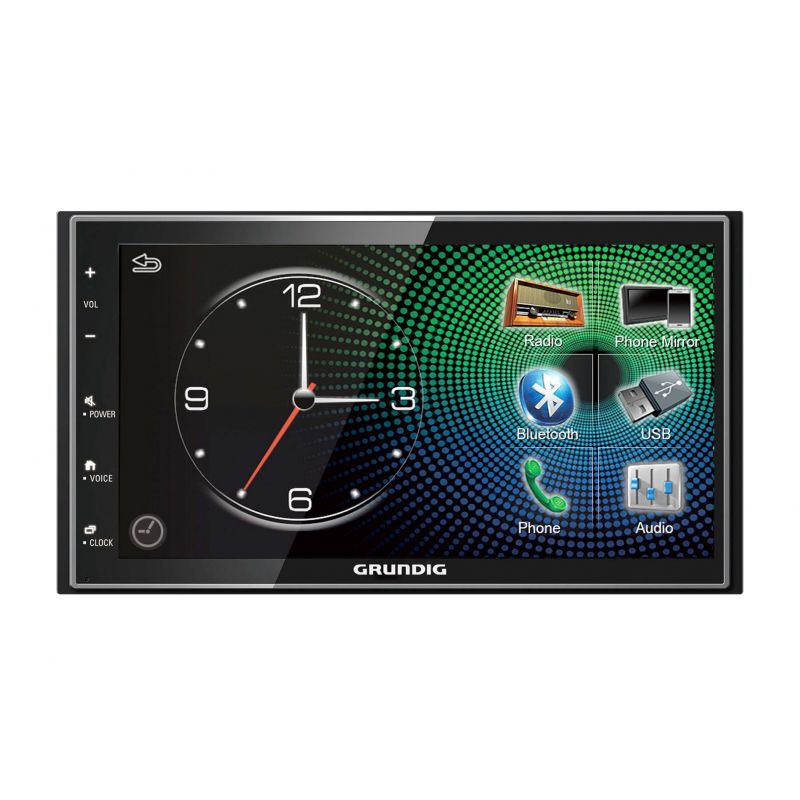

GUI

• GUI 32bit Gesture GUI
• Open screen 32bit Gesture GUI
• Source Shortcut button 32bit Gesture GUI
• User Wallpaper 32bit Gesture GUI
• Standby (Power off) 32bit Gesture GUI
• Widgets 32bit Gesture GUI
• Rear View Camera advisory message
• Rear View Camera parking guide Enable & Disable selectable
• Languages English

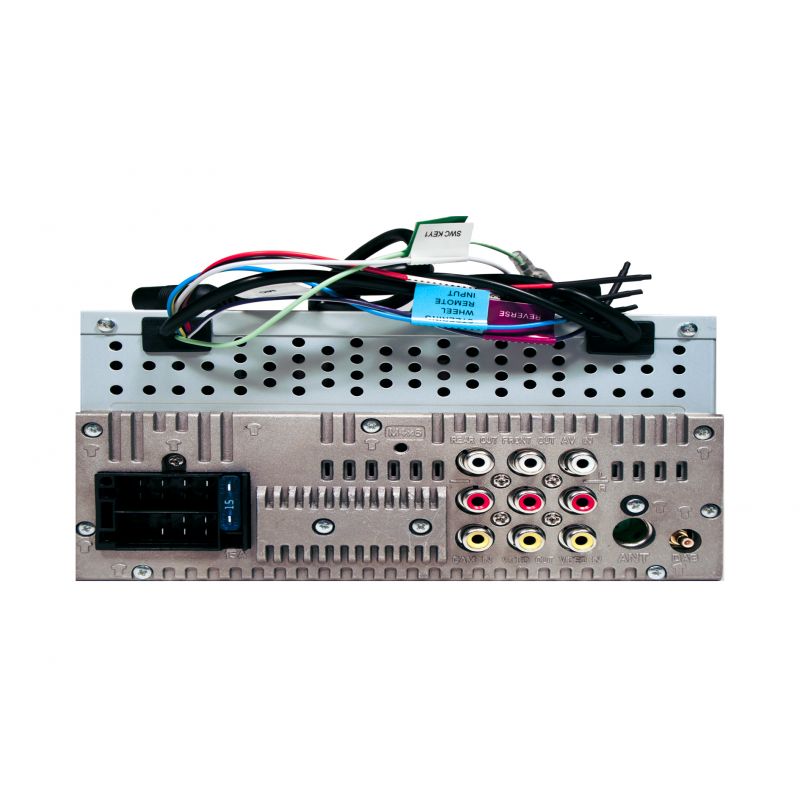

External I/F

• Parking Brake Detect
• Back up Reverse Wire
• Back Up Camera in CVBS or Rear DVR
• CVBS Video out
• Headlight Detect
• DVR Input 10 Pin Pig tall (OPTIONAL)
• USB Pig Tail
• External Microphone input 3.5mm input
• Steering Wheel Control
• Steering Wheel Control (SWC) IR-IR SWC
• Harness Type ISO Harness (on board)

SW Upgrade

• OS Yes via USB
• System Yes via USB
• BT Yes via USB
• TV Yes via USB

Accessory

• Microphone 3 Meters External Mic
