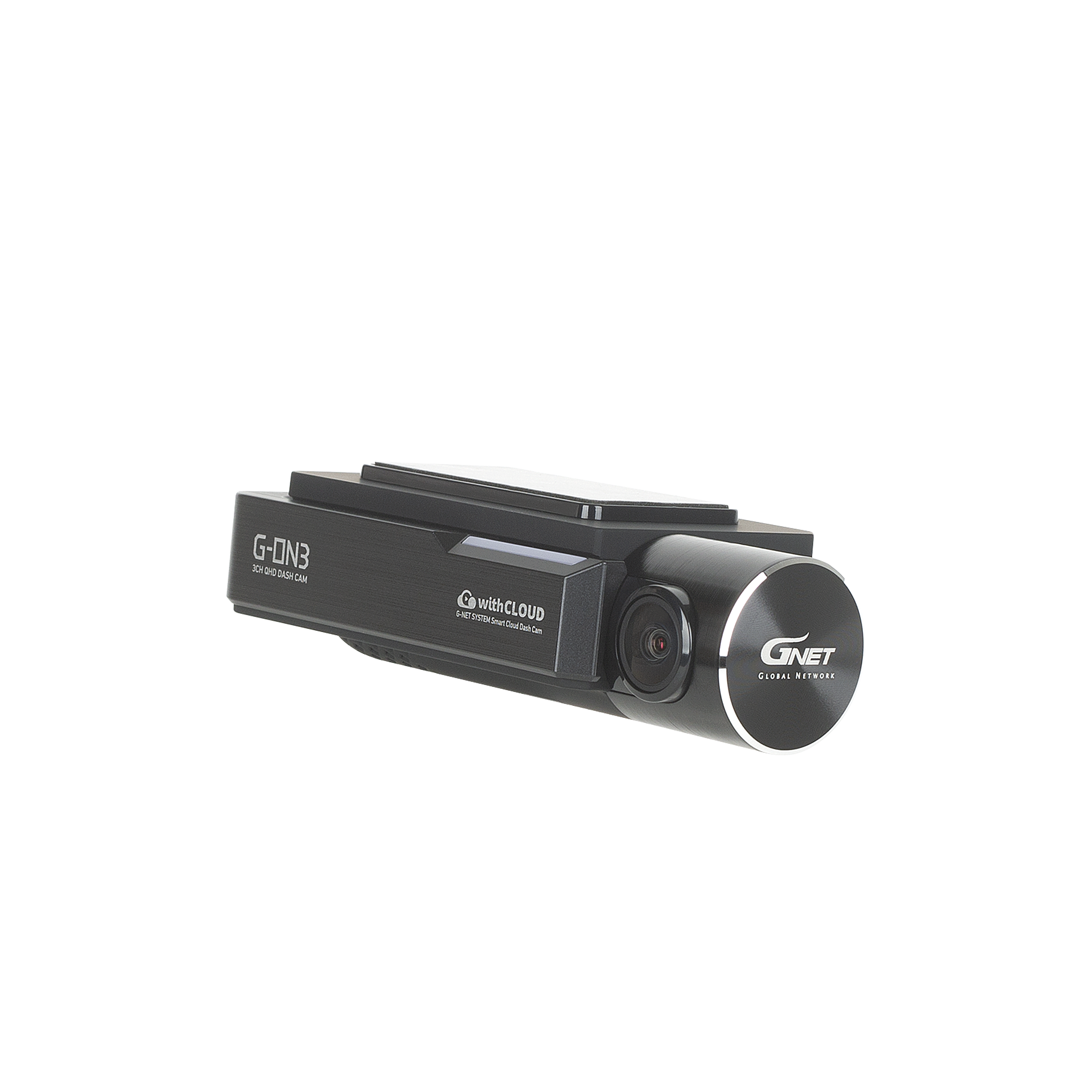

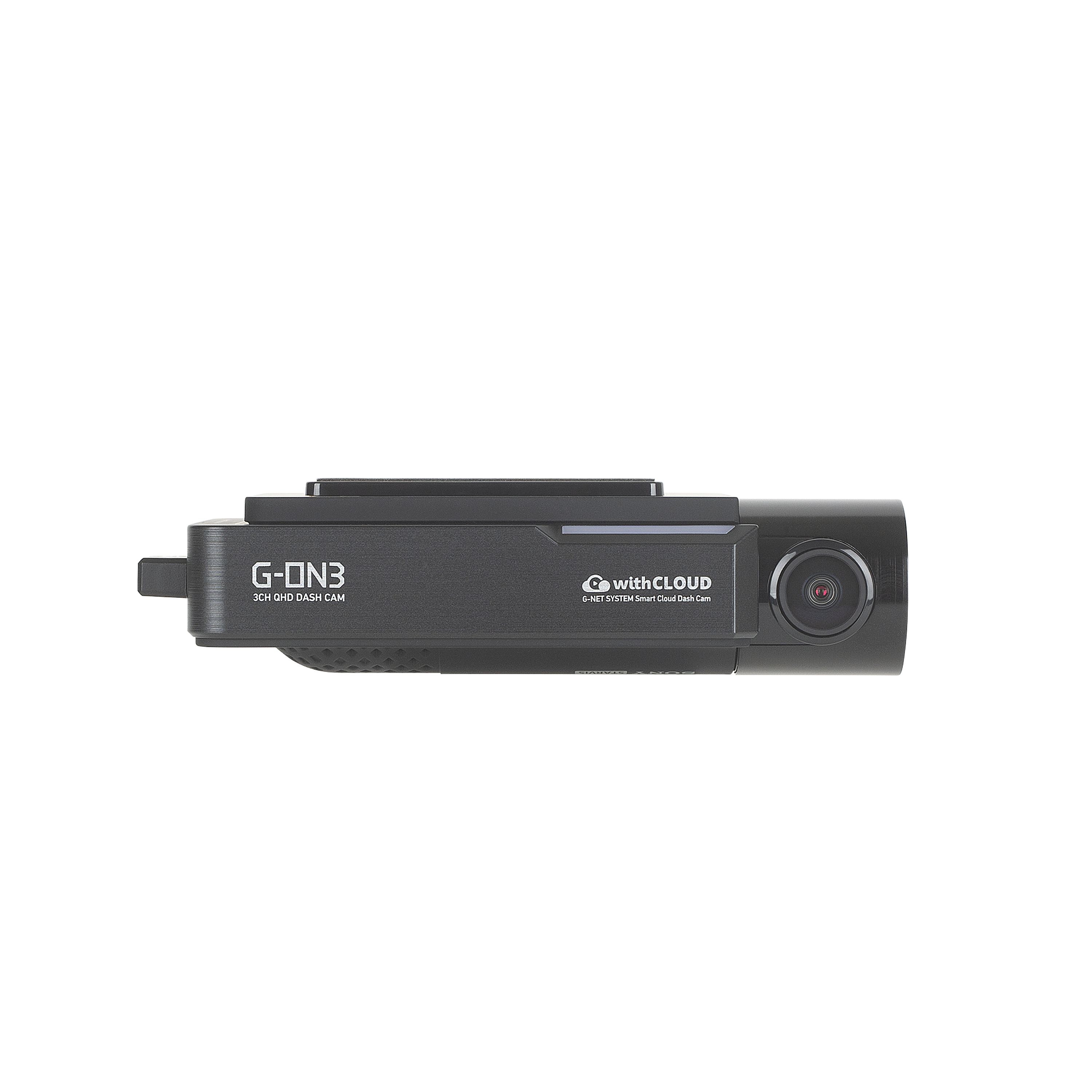

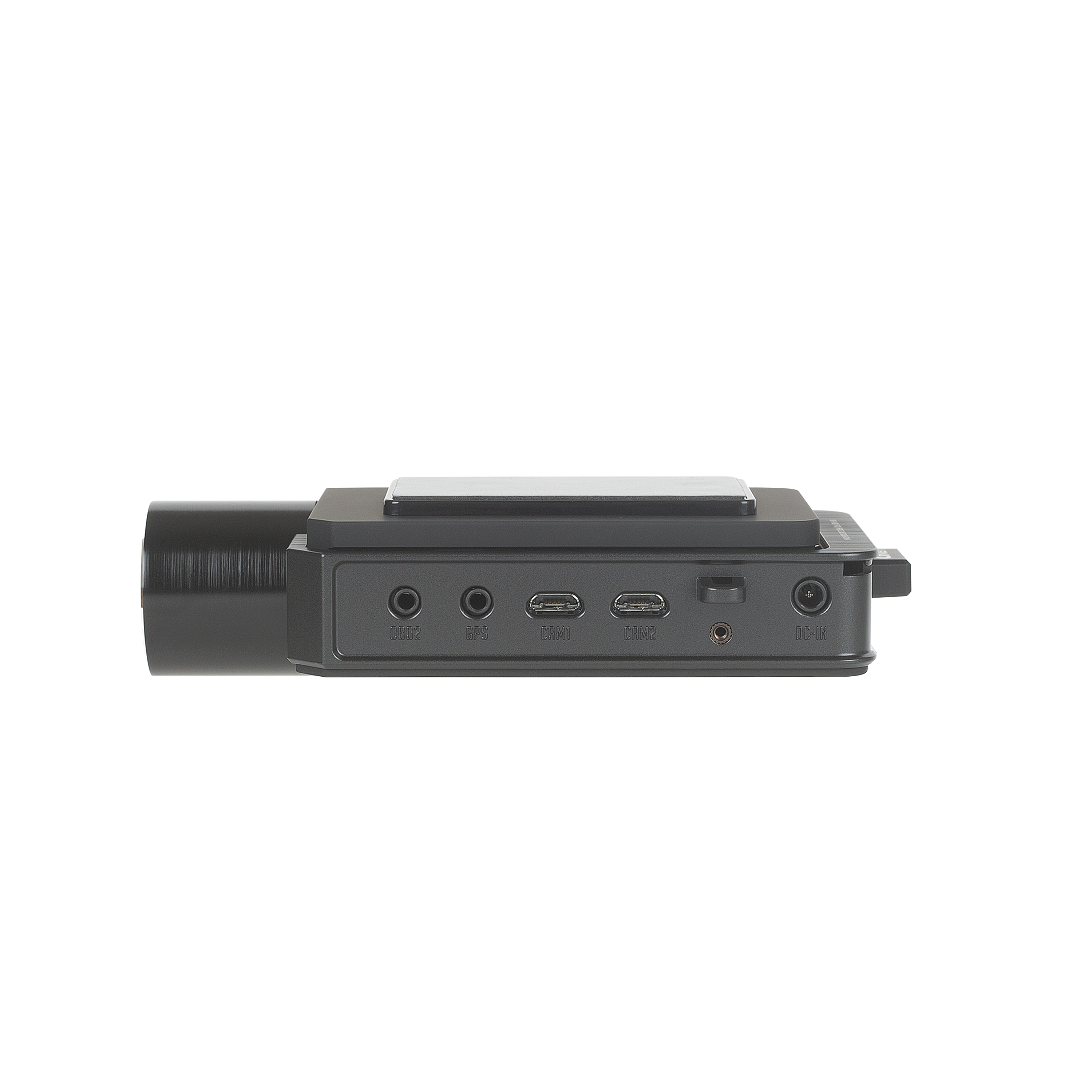

G-ON3

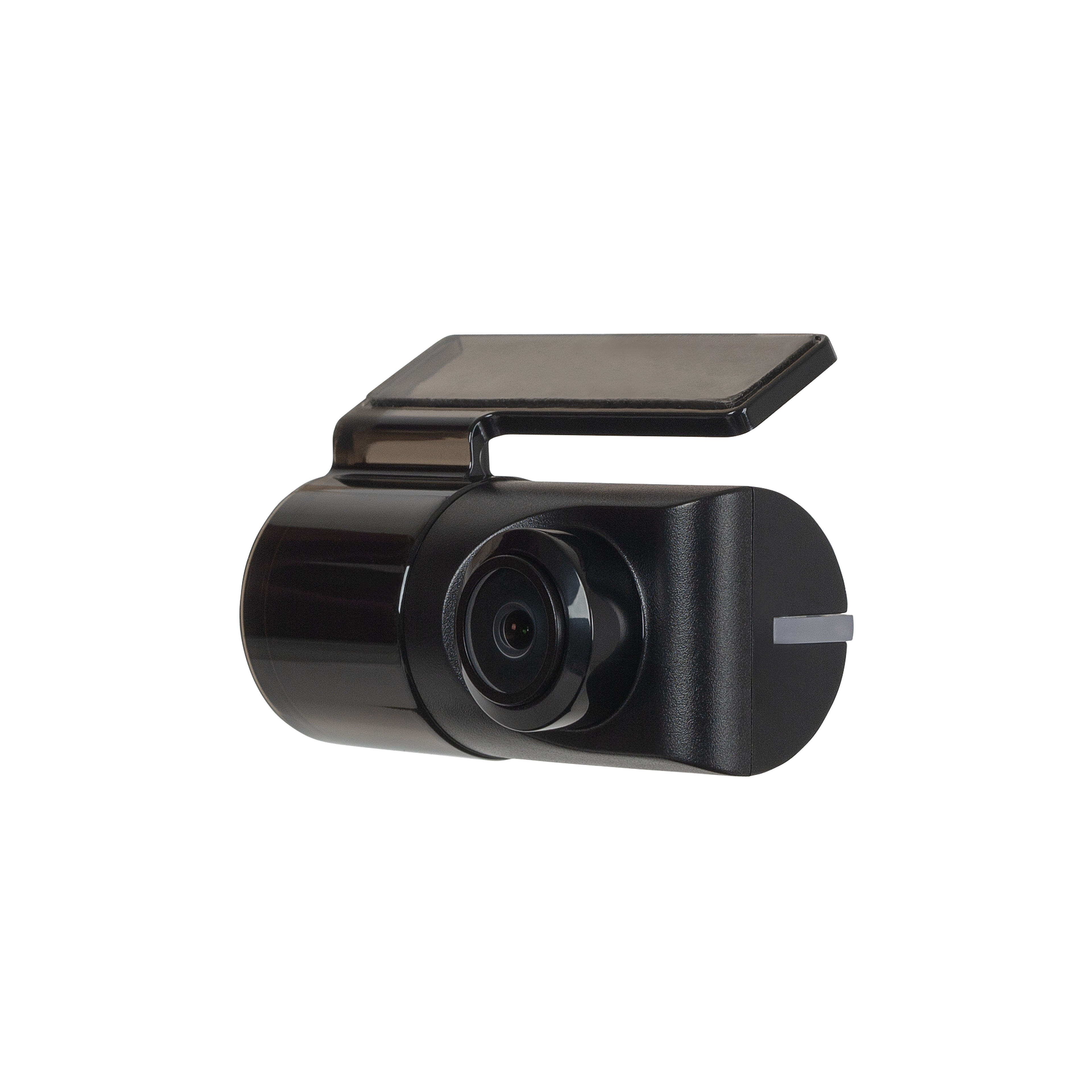

3 Channel, 128GB, WiFi, GPS, Hard Wire, Internal Rear Camera

Specification:

Audio input	Built-in Microphone
Video Compression	H.265
Audio Compression	ADPCM
Resolution	Front : QHD (2560 X 1440) / Rear, Interior, Exterior: FHD (1920 X 1080)
Frame Rate	All cameras : Max. 30 FPS
3G/4G/Router (Optional)	Connect to withCLOUD™ via 3G/ 4G/ Router telecommunication
Wi-Fi (Optional)	Connect to GNET Smart phone application via Wi-fi® dongle
G-Sensor	Event recording by External Shock
Speaker	Operation Status alarm / Voice guidance
External GPS	Synched with Google map, Keep track of location and Speed
Angle Of View	Front : 140˚, Interior : 180˚, Rear & Exterior: 140˚
Viewer	Windows XP/7/8/10, Support 32Bit / 64Bit, Synchronizing Google map with PC viewer is supported over Windows7 and explorer 10 as per Google’ s policy.
Power	DC 12V – 24V
Acceptable current value of the supplied fuse	3A
Operation Temperature	-20℃ ~ 60℃
Humidity	10~95%
Dimension (WxHxD, mm)	Front : 116x56x32, Interior :48x73x26, Rear: 44x38x28 Exterior: 45x45x35

Functionality:

The New Cloud Service for GNET Dash Cam Users

withCLOUD™

“withCLOUD” for fleet management system by GNET SYSTEM’s technology.
Unlimited storage capacity beyond the limitation of dash camera memory card.

*This requires an internet connection with data available, fees and charges will apply.

Outstanding Visibility under the Starlight

The STARVIS is back-illuminated pixel technology used in CMOS image sensors for surveillance camera applications. It features a sensitvity of 2000 mV or more per1 um2(color product, when imaging with a 706cd/m2 light source, F5.6 in 1 s accumulation equivalent), and realize high picture quality in the visible light and near infrared light regions.

ADAS

3 Functions for Safe Driving

“ADAS update”

ADAS is a safe driving assistance system for the driver’s safe driving environment



FVSA Front Vehicle Start Alarm		FCWS Forward Collision Warning System		LDWS Lane Departure Warning System
The vehicle in front of you is pulling away more than 2 meters, the dash cam let the driver know with the beep sound		If the distance of the vehicle in front of you is reducing rapidly in short time with high speed, the dash cam let driver know with the beep sound and		If you leave the lane while driving, the dash cam let the driver know with beep sound

TIME LAPSE

Available for Long Parking Records

Time-lapse function automatically applied when entering parking mode.

Time Lapse mode records one frame per second, minimizing the size of the video for a long time to record parking.

Time Lapse mode records one frame per second, minimizing the size of the video for a long time to record parking.

H.265

Video codec(HEVC)

*HEVC(High Efficiency Video Coding)

H.265 compression rate is up to 2 times higher than H.264.

It means that users can use 256GB SD card as 512GB SD card.

REAL HDR

Clear Recording Quality when Driving at Night

Real HDR is installed to remove light blurring when driving at night,

and it shows clear recording quality in various lighting conditions such as backlight and tunnels.

WIDE VIEWING ANGLE

Optimal Viewing Angle without Distortion

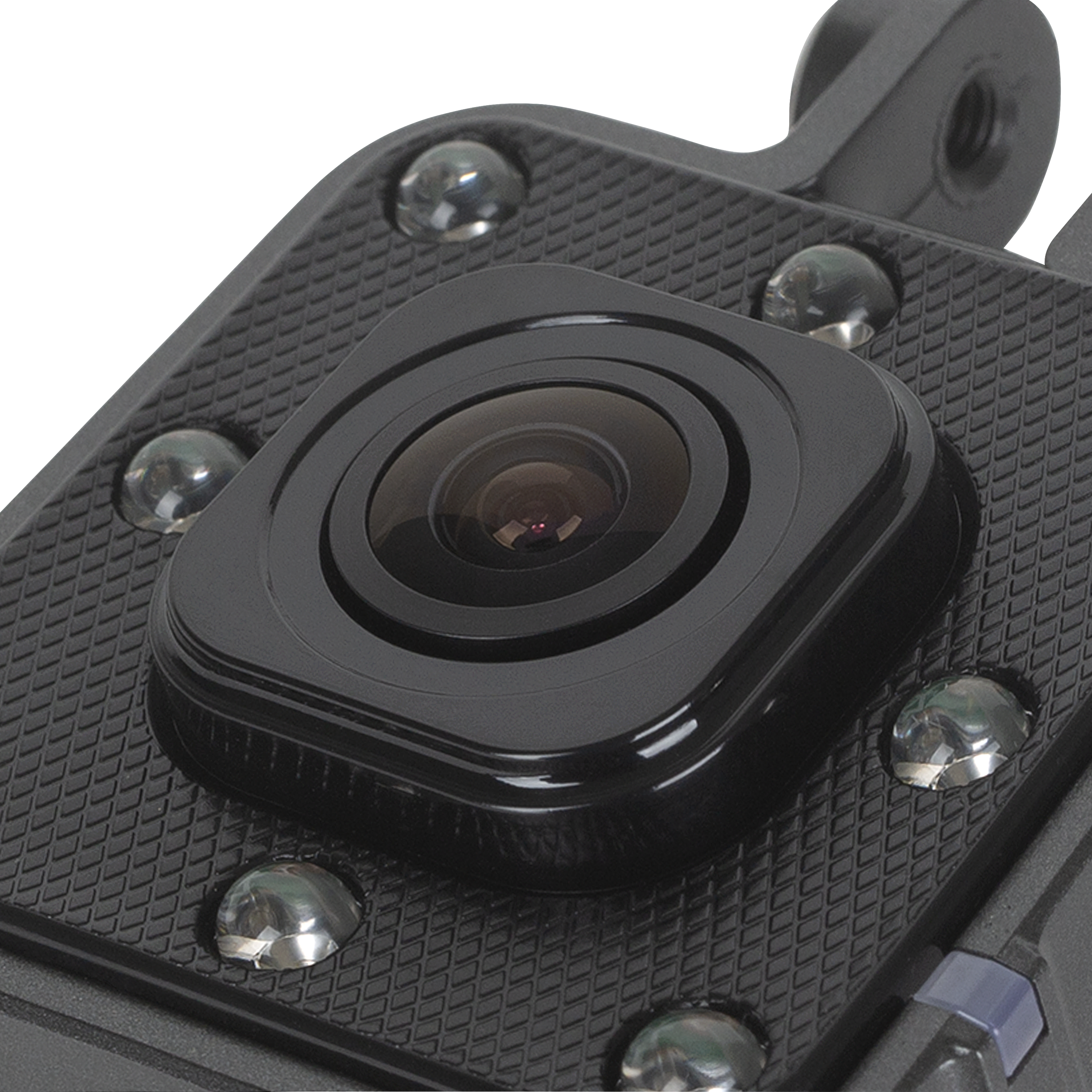

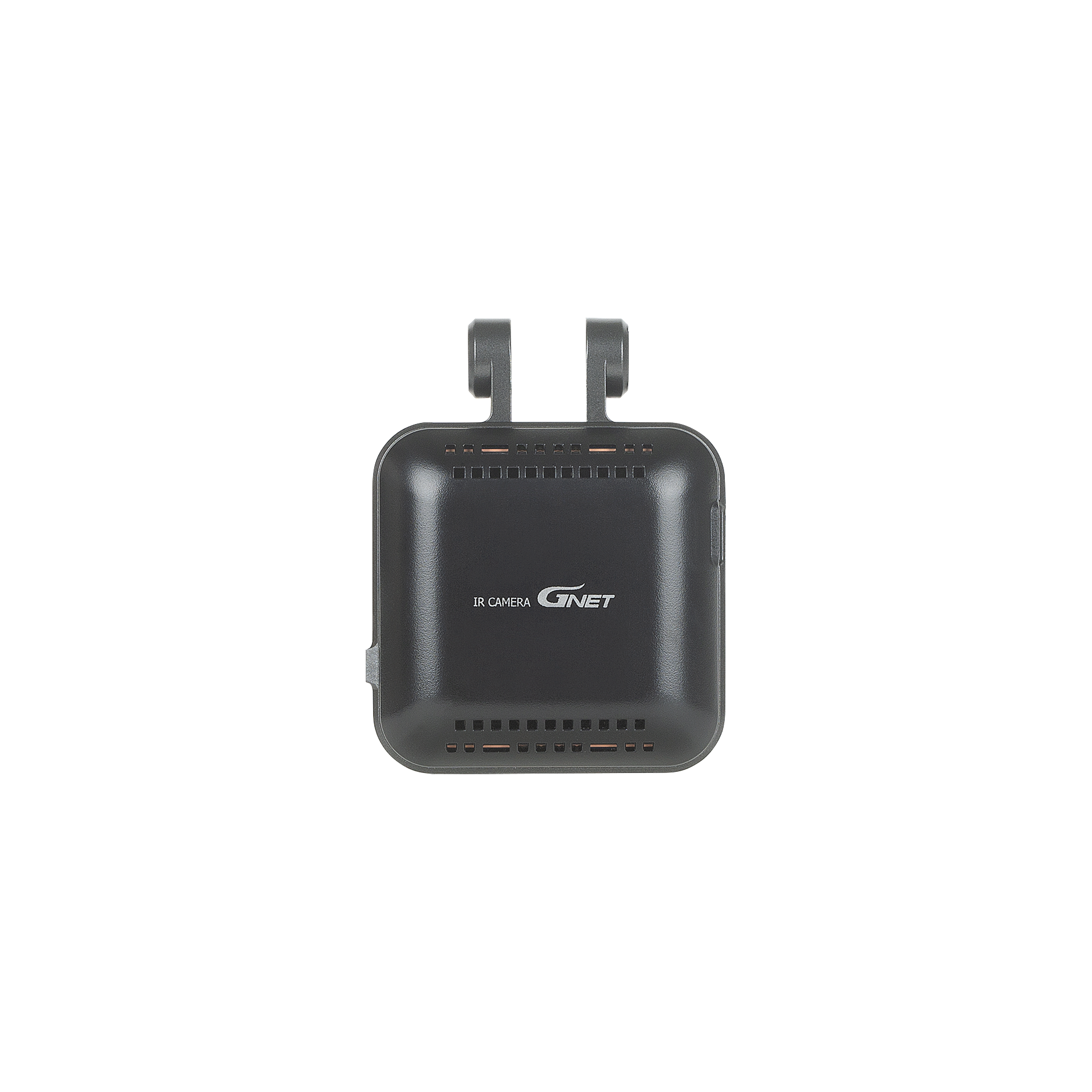

Front camera: 140° / Rear camera: 140° / Interior IR camera(driver, passenger): 180° / Option – Exterior IR, IP69K camera: 140°

Excessive angle of view refracts the image, causing effects such as distortion and loss of distance.

The GNET System has an optimal camera angle of 140° and Interior IR with a 180° angle of view without those problems,

the situation of accidents on the side angle is recorded more reliably, and images without distortion of left / right / up / down are provided.

G-NET APP

Smartphone Link via Wi-Fi®

User-friendly GUI

User convenience has been further upgraded

User-focused Firmware Upgrade	All the features you need at once! Easy and convenient GNET APP	Customized configuration by APP
After accessing the firmware configuration by APP, the latest firmware can be automatically searched for and downloaded.	You can easily set up device registration, real-time video setup, recorded video list, and customer support through the main screen.	Using the Smartphone APP, you can upgrade the firmware and play video as well as configure various settings

*You can only connect your smartphone with WiFi® dongle connected to the black box

*Disable IOT/WiFi feature when CLOUD is enabled

LBP FUNCTION

For Vehicle Battery Discharge Protection

It is an intelligent Safe Guard function that automatically shuts down recording when the voltage falls below

a specified voltage and cuts off the power to protect the battery of the vehicle.

LBP FUNCTION AUTO SAFE GUARD ( LBP ON / OFF )

Settings can be made directly from the dedicated GNET PC VIEWER, and the vehicle voltage can be checked when checking

the recorded video of the vehicle. You can easily set up wirelessly via GNET APP at the time of smartphone interlocking

HIGH TEMPERATURE TEST PASS	MEMORY CARD AUTOMATIC RECOVERY AND SELF-FORMAT	BUILT-IN VOICE GUIDE AND MICROPHONE
G-Net has been passed the high-temperature test. Differs from other brand dash cameras which shut down the power because they can not withstand high temperatures.	Unlike other companies’ black boxes, which require users to format periodically, JDR’s own file system with excellent reliability is applied for convenient use without regular format.	It has a friendly voice guide, high-quality voice recording, and a high-performance microphone, which makes it easier to check the operation and recording conditions while driving.

GNET PC VIEWER

Compitable GNET PC VIEWER

Easily play and check the recorded video with a viewer program for PC

It provides various functions Zoom, partial zoom function, Lane drawing function, set recording frame.
Backup features include AVI file generation, tampering prevention, thumbnails, and interval repetitive searches.
