MVRG1

G-NET Motorcycle Dash Camera 2 Channel

SKU: MVRG1 Category: Dash Cams Brand: G-NET

Description

MVR G1 Pro

Specification

Image Sensor Full HD HDR CMOS sensor
Audio input Built-in Microphone
Video Compression H.265
Audio Compression ADPCM
Resolution Front, Rear 1080P(1920×1080)
FPS Max. 30fps
Wi-Fi® Connect to GNET Smart phone application via Wi-fi dongle
G-Sensor Event recording by External Shock
Memory Supported micro SD card 32GB up to 512GB
External GPS Location & speed recording, based on Google map
Lens Front, Rear 140 degrees
Viewer Windows 7/8/10, Support 32Bit / 64Bit, Supported over OSX 10.7 64Bit
Synchronizing Google map with PC viewer is supported over Windows7
and explorer 10 as per Google’ s policy.
Power DC 12V – 24V
Acceptable current value
of the supplied fuse 3A
Operation Temperature -20℃ ~ 70℃
Humidity 10~95%
Waterproof/ Resistant Controller, Camera IP69K
Dimension Main body : 52×105.5×17 / Camera : 26.2×26.2×47.5

MVR G1 PRO Installation Description

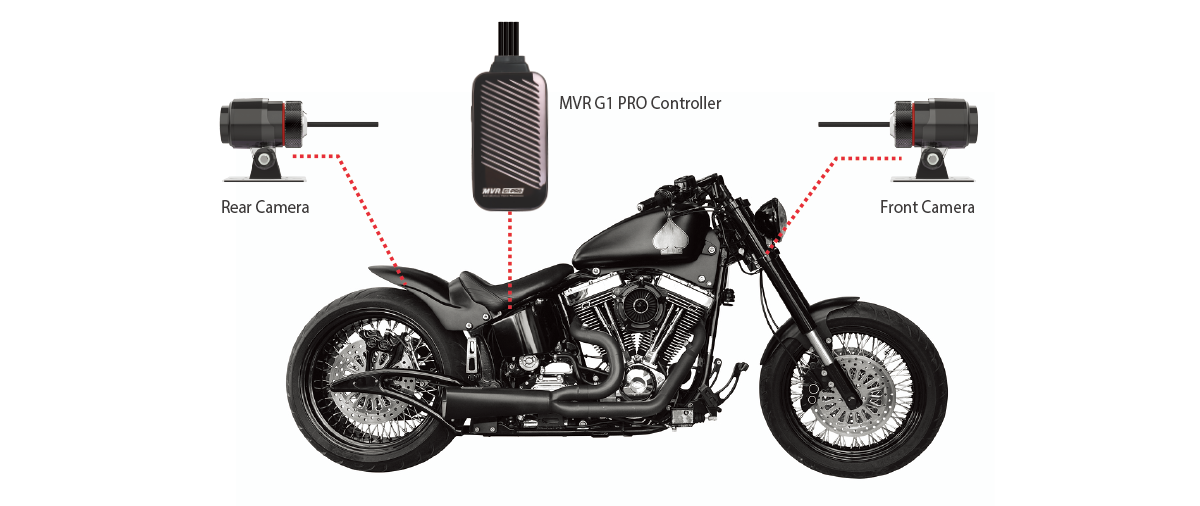

The camera system is designed to be mounted integrally with the motorcycle’s body for stable recording. The system includes front and rear cameras, which can be placed in the following locations:

Front Camera: Can be mounted on the front fairing, near the headlight, or on the front fender. The goal is to get a clear, unobstructed view of the road ahead.

Rear Camera: Can be attached to the tail section of the motorcycle, near the license plate, or on the rear fender to provide a clear view of what is behind.

Main Unit/Controller: The central unit, which the cameras connect to, can be stored in a protected area like under the seat or in a storage compartment.

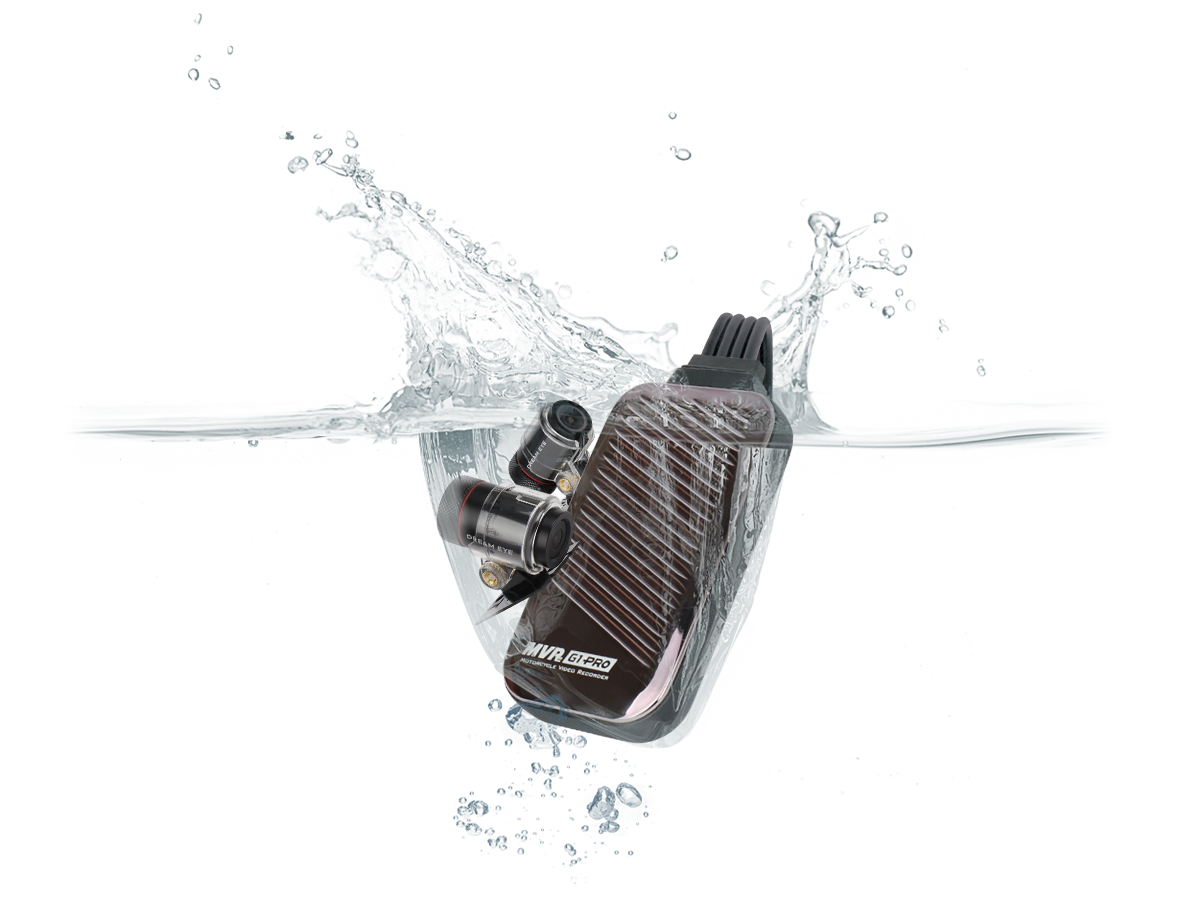

The IP69K rating of the cameras and controller ensures they are protected from dust, rain, and high-pressure water, making them suitable for various mounting positions on the motorcycle’s exterior.

Easy installation

Colour coded plugs and sockets

Fitting into motorcycle

Advised fitting positions for best camera view and safe fitting

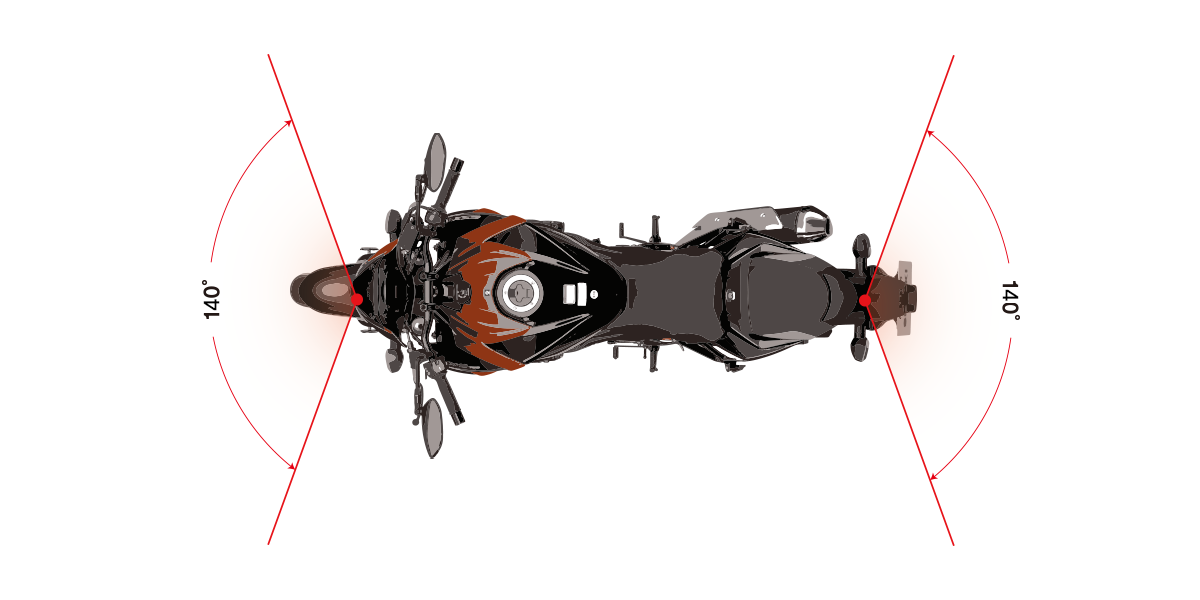

Wide view angle

Left/right distortion-free viewing angle approximately 140 degrees forward/rearward about 140 degrees

A few things we’re great at

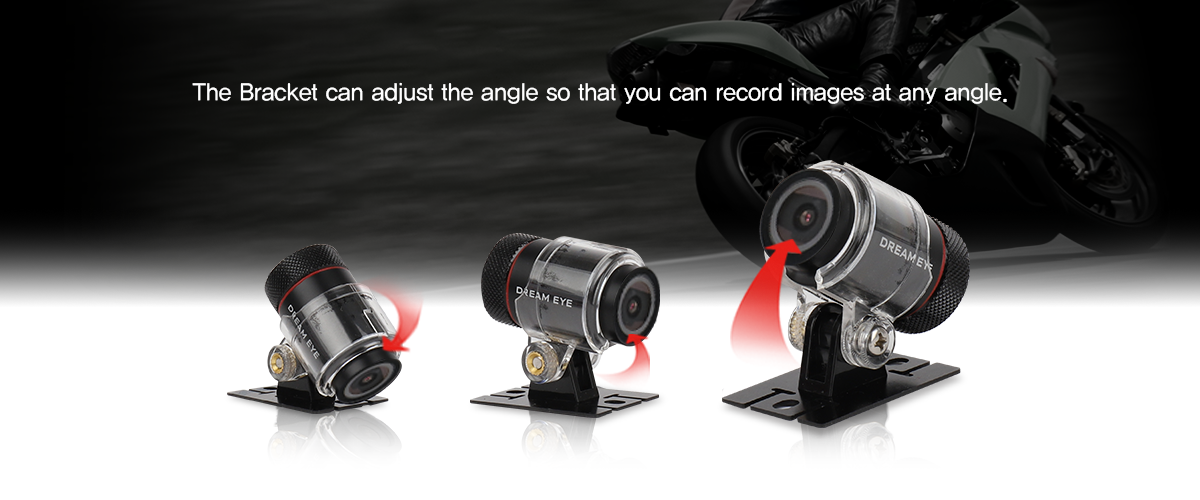

Fully adjustable camera holders

The MVR G1 is mounted integrally with the vehicle body with a separate bracket(mount) regardless of the front and rear of the motorcycle, and is recorded stably with less shaking and shaking.
