FT-700-146LLEDAMP7PIN

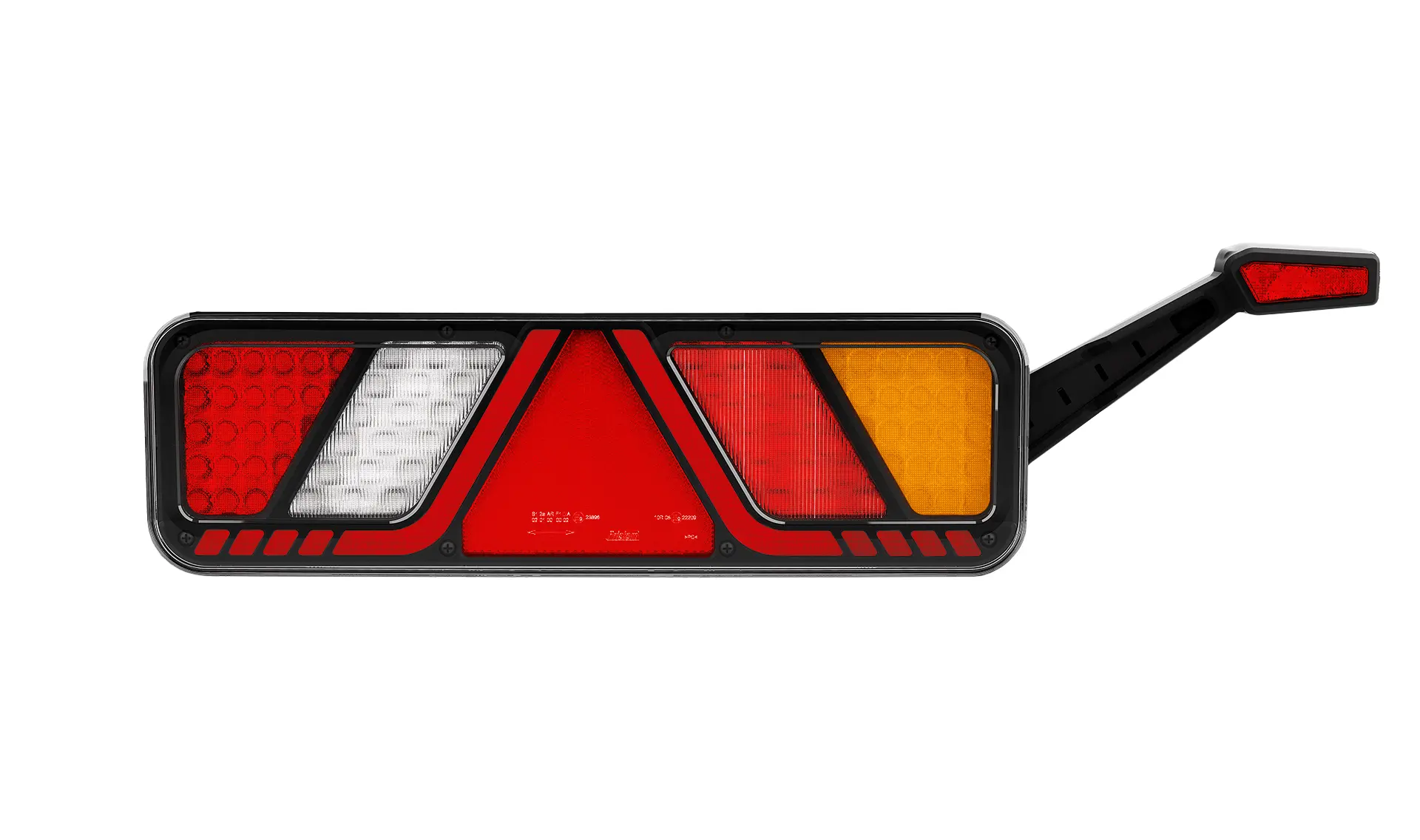

Fristom FT-700-146 L LED Rear Lamp

The FT-700-146 L LED rear lamp from Fristom is a high-quality, universal-fit lighting solution designed for trailers, flat-beds, and semi-trailers with a 24V electrical system. This left-side lamp integrates six essential functions: stop, position, indicator, reversing, fog, and a reflective triangle, plus an outline marker lamp for enhanced visibility.

Key Features

• 6-functional LED lamp with stop, position, indicator, reversing, fog lights, and reflective triangle
• Includes an outline marker lamp for improved vehicle visibility
• Equipped with an AMP 7PIN connector for reliable electrical connection
• Large lamp modules with high-performance LEDs ensure excellent luminous output
• Integrated LED light control system compatible with vehicle onboard electronics to prevent malfunctions and diagnostic trouble codes (DTCs)
• Durable, hermetically sealed construction offers water-tightness and resistance to all weather conditions
• Pressure bleeding valve enhances performance across varying weather conditions
• Neck bolts improve enclosure durability
• Universal-fit mounting bolt spacing of 152 mm enables quick and easy installation
• Certified to EMC and ADR homologations

Technical Specifications

• Voltage: 24V
• Functions: Stop, Position, Indicator, Reversing, Fog, Reflective Triangle, outline marker Lamp
• Connector: AMP 7PIN
• Current Consumption (Peak Values):
  • Rear Running Light: 0.2A (5W)
  • Stop Light: 0.8A (20W)
  • Indicator: 0.85A (21W)
  • Reversing Light: 0.25A (6.5W)
  • Fog Light: 0.2A (5W)
• Mounting Bolt Spacing: 152 mm
• Weight: 2.0 kg
• Approvals: EMC, ADR

Applications

Ideal for all types of trailers, flat-beds, and semi-trailers requiring a reliable and multifunctional rear lamp with integrated marker lighting.

Installation and Compatibility

The lamp features a universal-fit mounting system and an AMP 7PIN connector, ensuring straightforward installation and compatibility with a wide range of vehicle electrical systems. Its integrated LED control system prevents onboard electronic malfunctions and diagnostic errors.

Technical Documents

No technical documents are currently available for this product.

For more information, visit the Fristom FT-700 LED product page.
