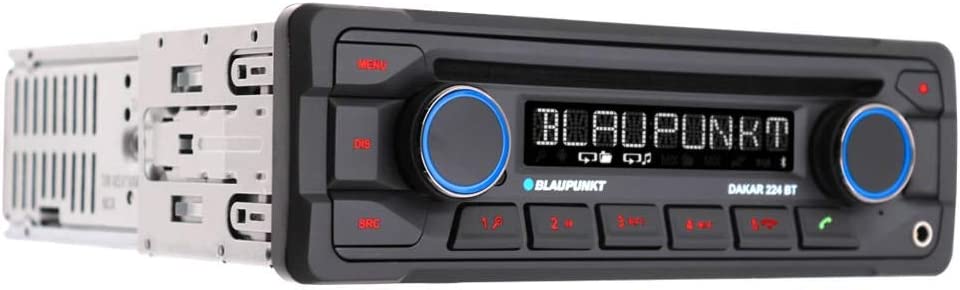

DAKAR224

WORK HARD & PLAY HARD!

Functional infotainment in a new dimension!

Resilient, easy to use and uncompromising in terms of quality: features that are currently requested by drivers

of commercial vehicles on a radio. The new Blaupunkt Heavy Duty Line fulfills these requirements, be it in the 12 Volt or the 24 Volt segment.

A CD drive protected against shocks and vibrations allows unrestricted enjoyment of music even off the streets.

All modern USB media can be conveniently connected and played. And thanks to fewer and larger rubberized station buttons,

operating is always intuitive and easy. Our well-thought-out concept goes into every detail: stored radio stations are retained,

even if the vehicle battery is disconnected during maintenance work.

Radio

• CODEM IV High-End Tuner
• FM (RDS), AM (MW/LW) Tuner
• RDS with AF, CT, EON, PS, PTY, REG, TA & TP
• Travelstore

Display

• Wide-view 9-digits DOT display
• Black / white negative display
• Adjustable brightness
• Clock display

Bluetooth

• Built-in Blutooth 2.1 with EDR module
• Hands-free calling, upload phone book and audio-streaming
• Profile: HFP, PBAP, A2DP, AVRCP, SPP
• Built-in microphone + external microphone
• Key phone functions: accept, hang up, reject call and redail
• Twin connect
• Navigation audio-mix

Media Player

• Audio playback from USB/Disc
• Audio playback fromats: MP3, WMA
• 2 encoder Blaupunkt comfort browsing with ID-tag2, file & folder
• Fast media reading from USB

Data Carrier

• CD, CD-DA, CD-R, CD-RW, USB

Input

• Front USB (standard A-type)
• Rear USB (standard A-type)
• Front aux-in
• Programmable steering wheel control (SWC)
• Telephone mute

Equalizer / Amplifier

• 3-band semi-parametric equalizer
• X-Bass function
• 3 sound presets (rock, pop, classic)
• 4-channel preamp-out (2V)
• Subwoofer-out
• 4 x 50 watt max. power

General

• 24-volt oower supply
• Fix panel
• Permanent station memory
• IR remote control included
• Red button illumination
• Ruberized preset buttons
• Ruberized frame
• Anti-reflective front panel surface
• Software-update via USB

• Built-in microphone + external mic connector
• Front USB (Standard A-type)
• Rear USB (Standard A-type)
• Front Aux-in
• Steering wheel control input (programmable)
• 4 x 50 Watt max. + 4-channel preamp-out
• Separate Sub-Out (var. gain/frequency)
• 3-band, semi-parametric Equalizer
• Sound presets (Rock, Pop, Classic)
• X-bass
• 24 V operating voltage
