CAM-KIT1

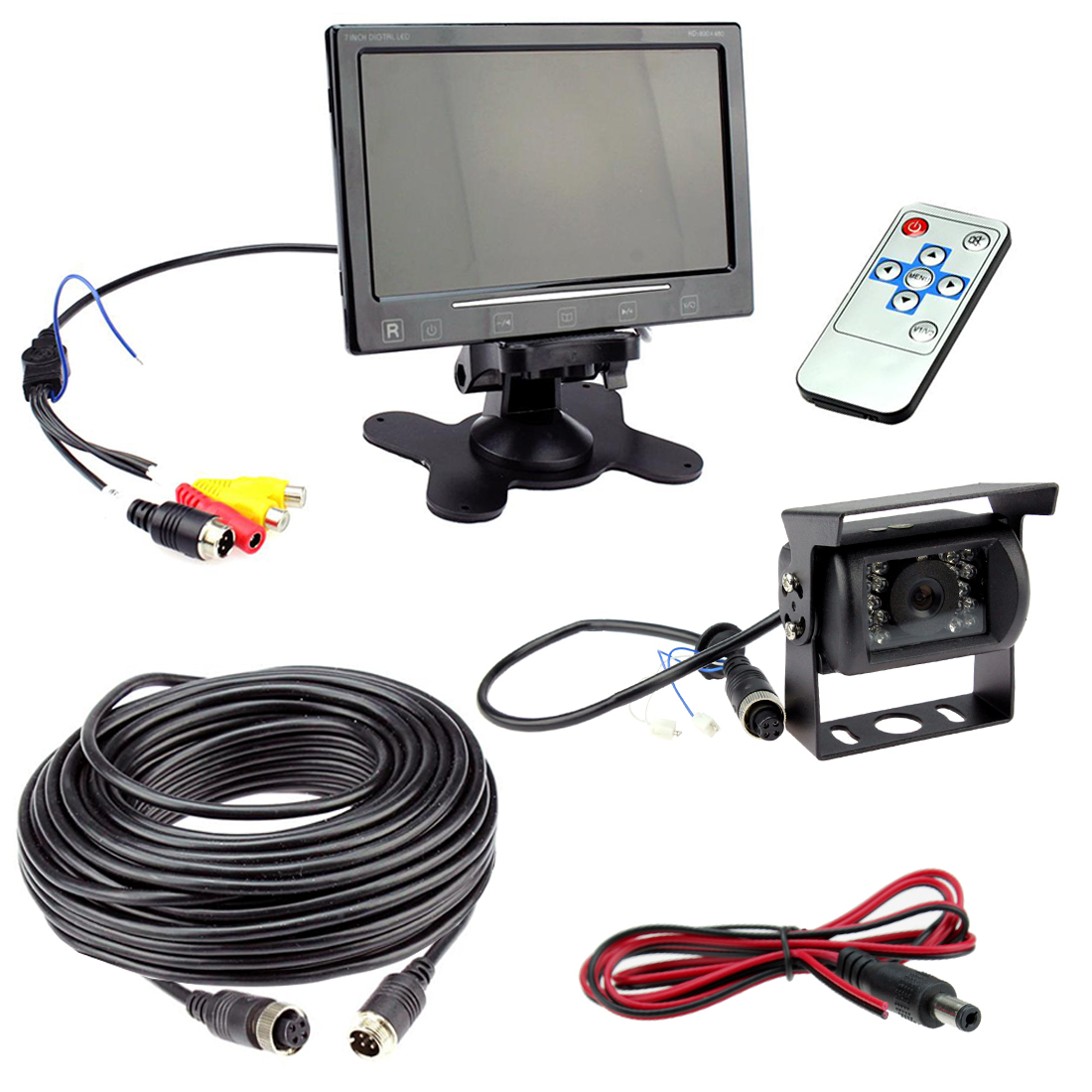

The CAM-KIT1 is a universal bracket mounted camera kit specially designed for use on a wide range of camper vans. Boasting a 7” Colour display with soft touch buttons, a reversing camera with a 1/3” HD CCD image sensor and 800 x 480 resolution and a waterproof rating of IP68 meaning the camera will survive almost everything the weather can throw at it.

Product Specifications:

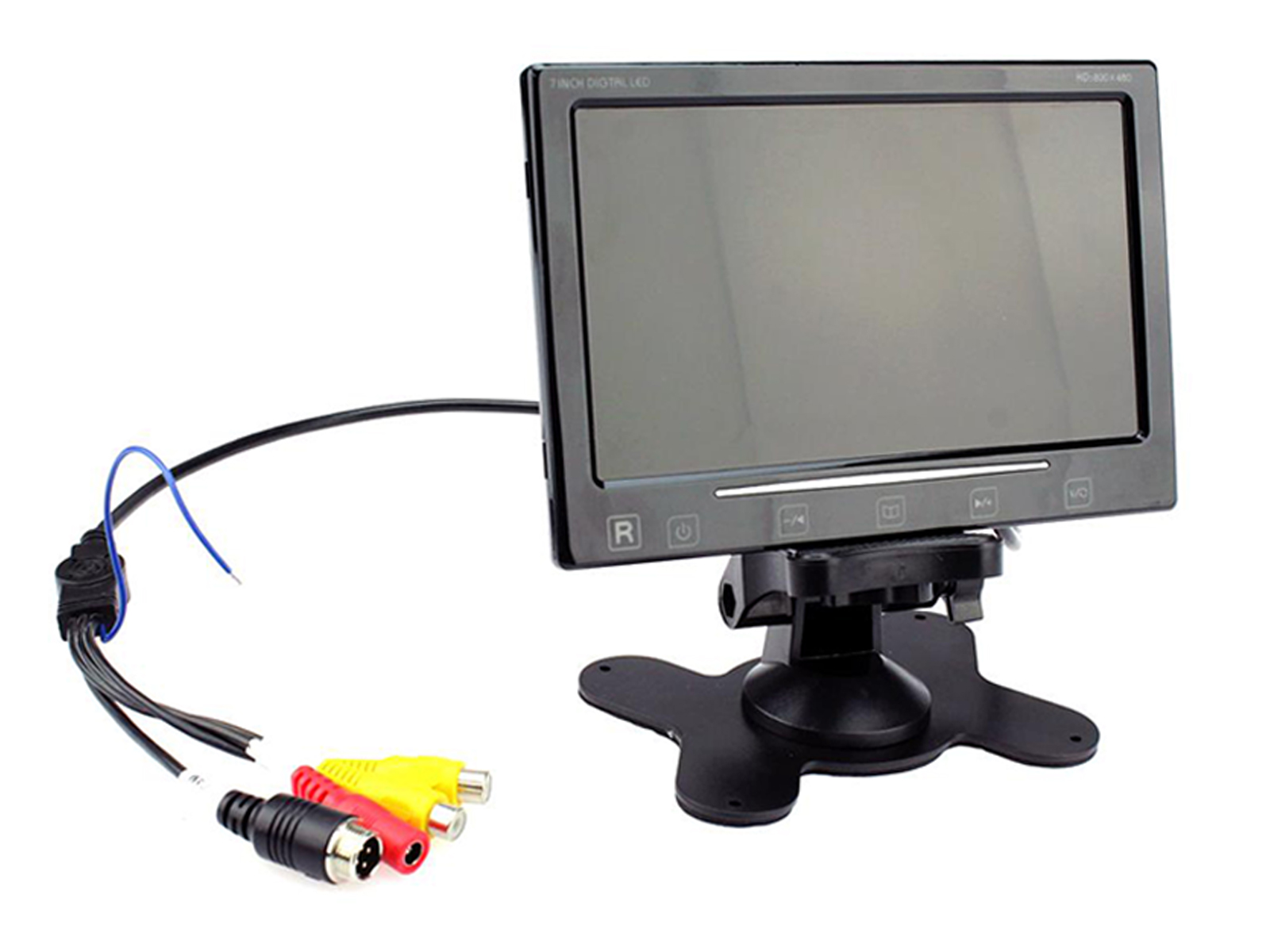

Display Screen: 7” TFT colour display with soft touch buttons, speaker and remote
control
Inputs: 3 (2x video inputs & 1x 4pin camera input with auto switching function)
Image: 800 x 480
TV System: NTSC/PAL
Operating Voltage: 12-32V DC (Negative Ground)
Current Consumption: 360mA @ 13.8V (Including Camera)
Stand-by Current: 100mA @ 13.8V
Operating Temperature: -10 Degrees C to +65 Degrees C
Monitor Image Adjustment: Yes (Mirror/Normal/Inverted & Inverted Mirror)
Auto Switching Input: Yes
Screen menus include brightness, contrast, colour, hue, language, volume, input
& image adjustments

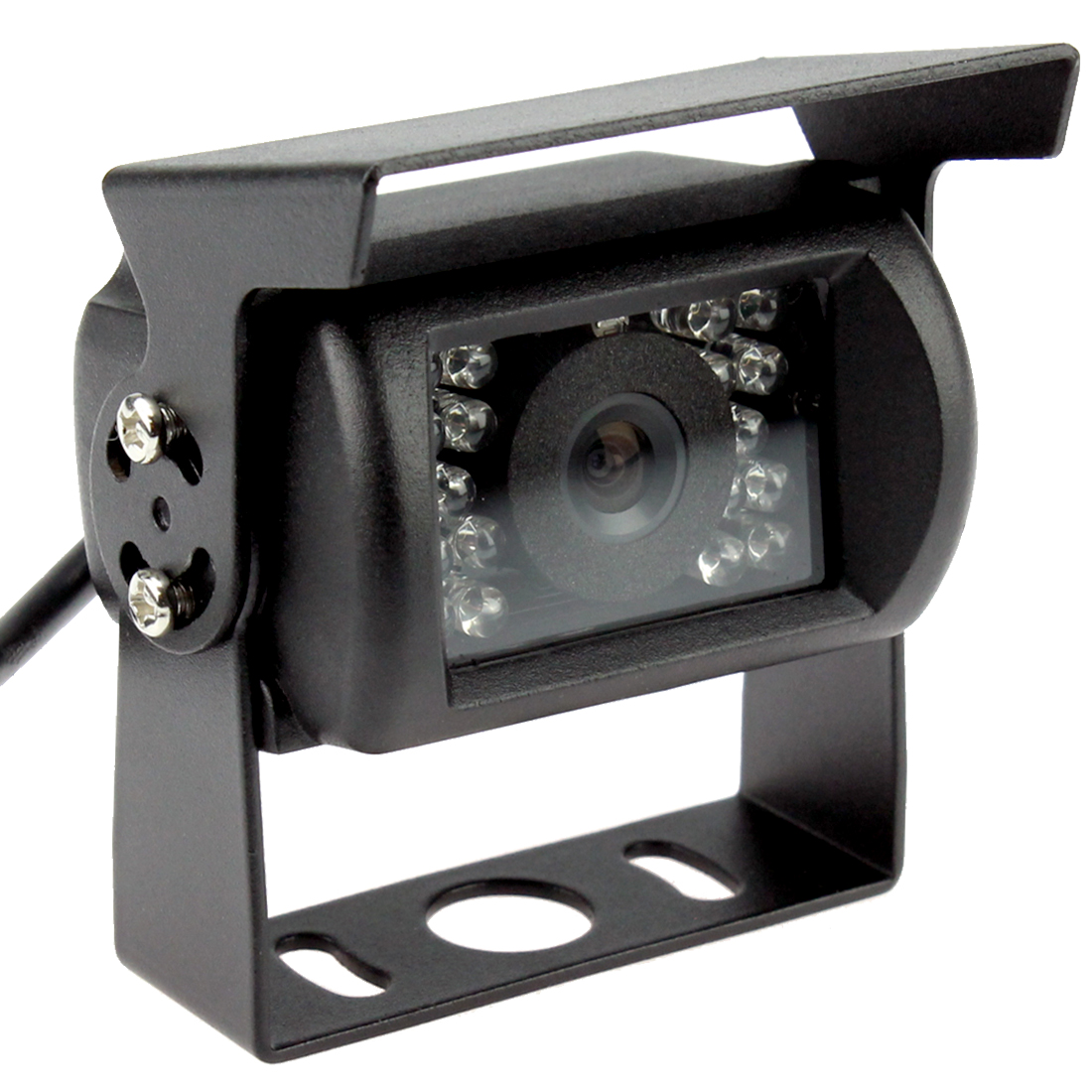

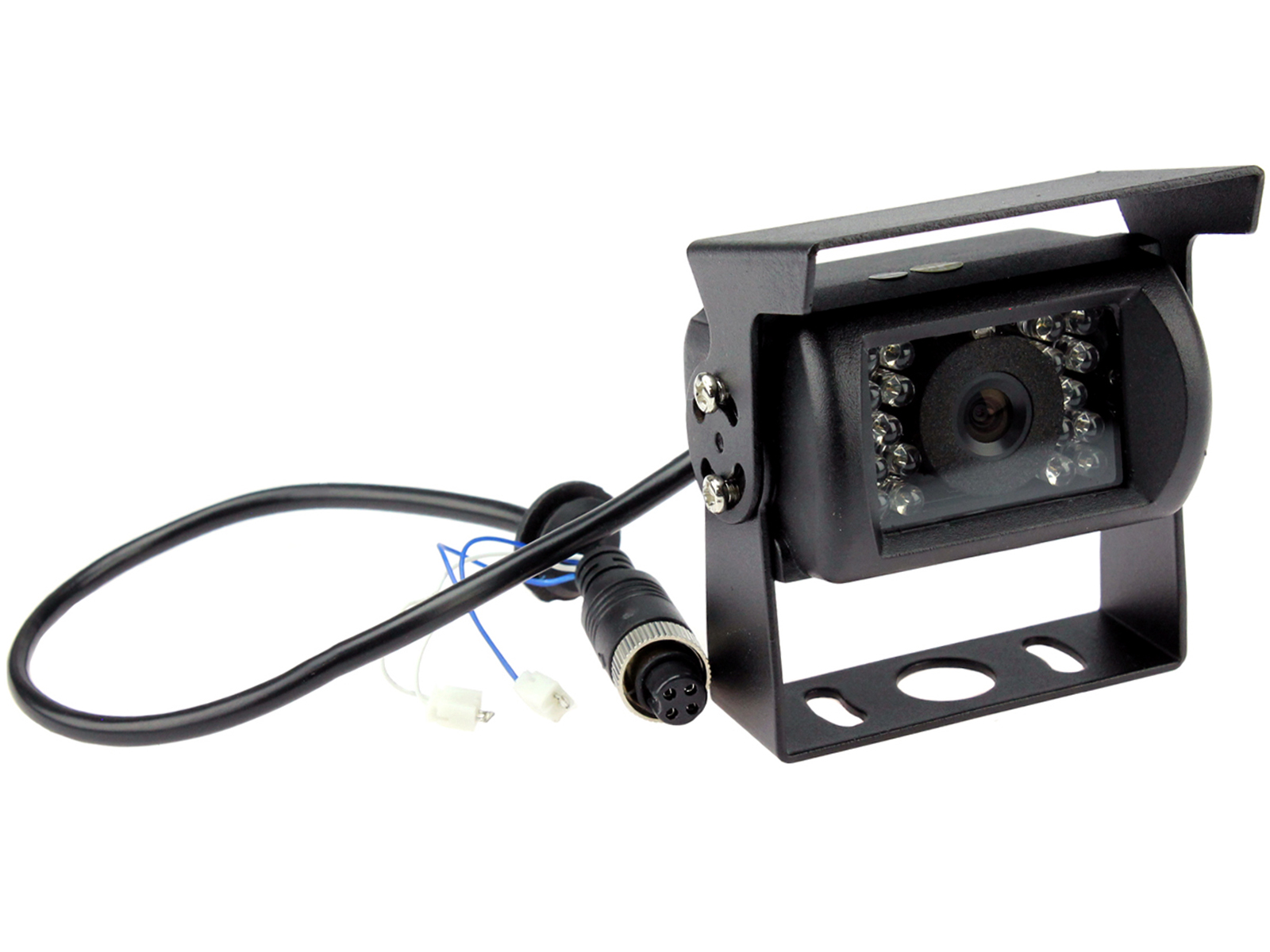

Camera Image Sensor: 1/3” HD CCD
TV System: PAL/NTSC
TV Lines: 560
Sensitivity: 0 Lux (LED’s on)
Video Output: 1.0V p-p 75ohm
Waterproof Rating: IP68
Parking Lines: Yes
Removable Lines: Yes
Image Adjustment: Yes (Mirror/Normal)

Vehicle Application:
Universal
Why buy a Connects2Vision Camera:
With over 30 years of manufacturer experience, Connects2 has built a formidable reputation as a first-to-market industry leader in the production of in-car integration. Our C2 Vision range of cameras, kits and accessories, has been tailored to provide first-class camera integration for 99% of vehicles currently on the road. As part of AAMP Global, Europe’s leading automotive technology group, we cater to thousands of commercial and retail customers a year. Offering expert customer service and setting the standard for product quality.
