CAM-1

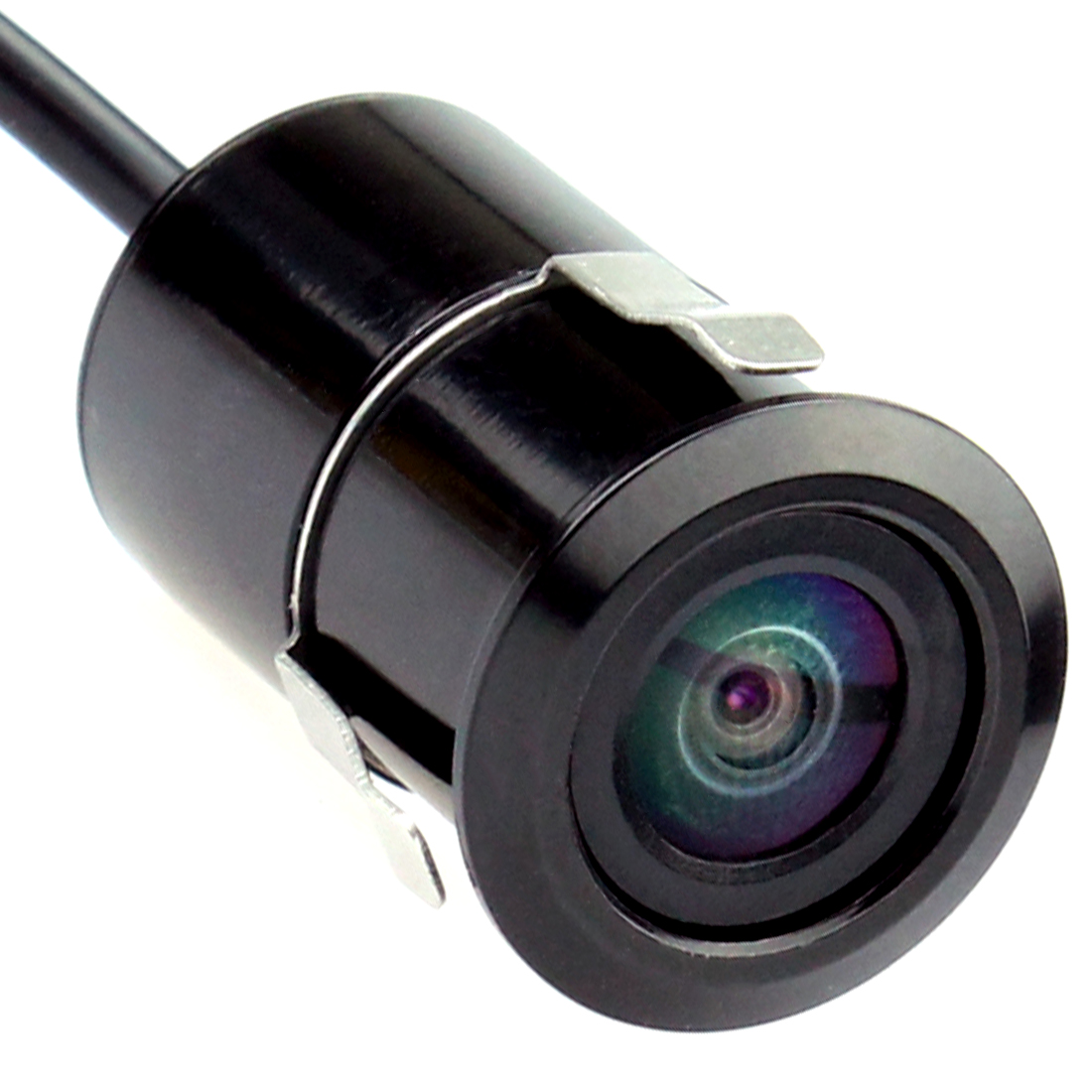

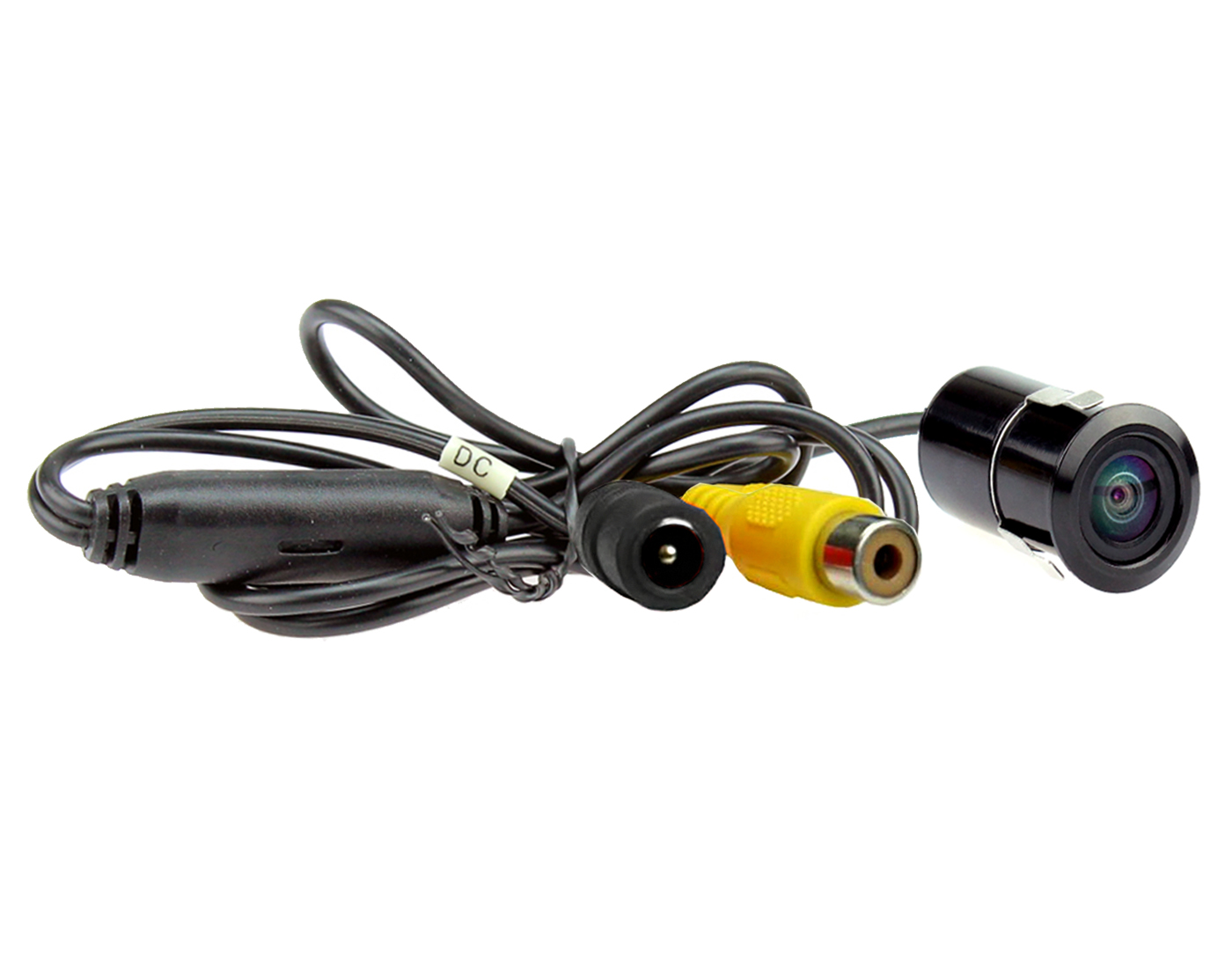

The CAM-1 is a universal flush mounted, rear view camera, suitable for fitment to most cars and vans. Boasting a 1/3″ (8.5cm) CCD, 580 TV Lines and a 762×504 resolution. The CAM-1 has a 150-degree viewing angle and requires minimal illumination to function. The CAM-1 is also IP67 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -30 degrees C to +65 degrees C.

Product Specifications:
Sensor: 1/3” (8.5mm) CCD
Current Consumption: 41mA @ 13.8V
TV Lines: 580
Minimum Illumination: 0.01 Lux
Angle: 150 Degrees
Resolution: 762 x 504
TV System: NTSC
Video Output: 1.0V p-p 75ohm
Parking Lines: No
Working Voltage: DC 9-16V (Negative Ground)
Operating Temperature: -30 Degrees C to +65 Degrees C
Waterproof Rating: IP67
Infra-Red LED’s: No
Enhanced Performance In Low Light: Yes

Vehicle Application:
Universal, Cars and Vans
