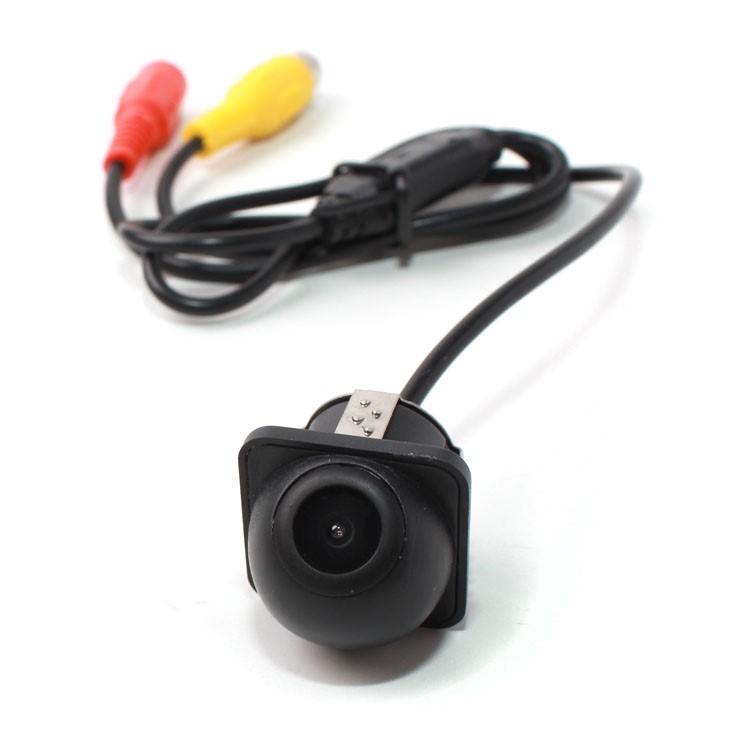

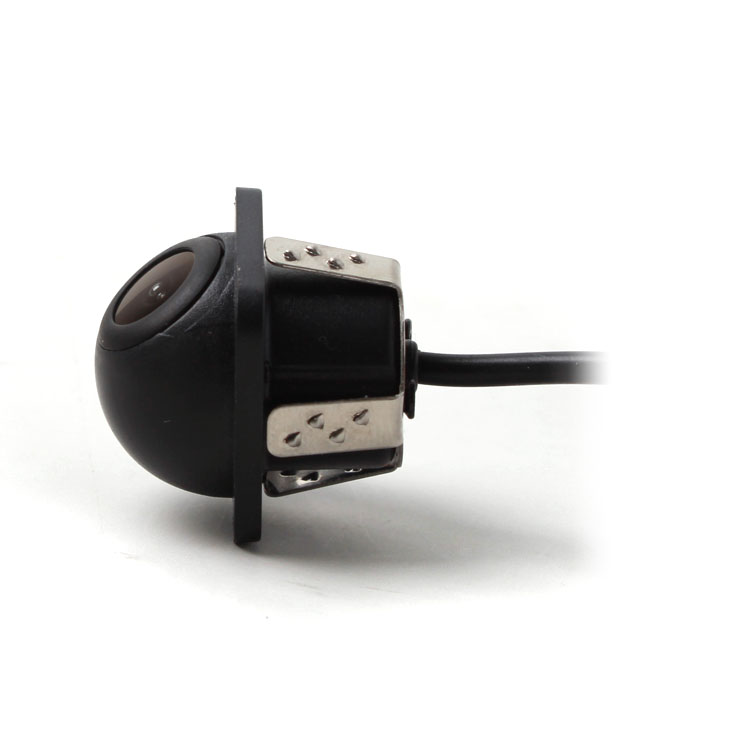

BCUNI-04

Rear view camera universal, with guide lines option to turn on, PC1030 chip, view angle 160°, installed in the drilled hole.

Technical parameters:

• PC1030 1/4″ sensor
• Minimum illumination: 0,2Lux
• S / N Ratio:> 60 db
• TV system: NTSC
• effective pixels: 648×488
• resolution: 420 TV lines
• power supply 9V-12V
• weather protection: IP66
• Viewing angle: 160°
• mirror image
• with guide lines
• Video Output: 1.0V / 75 ohm
• temperature from -20 °C to + 80 °C
• camera body measures: 28x25x25 mm
• power cable length 1 m
• signal cable length of 6m terminated with RCA connectors
• Drill tool 20 mm – in the package

Note:

– Adjusting the Direct Image to Use the Camera in Front: – Cut the white wire

– Turn on the guide lines: – Cut the green wire
